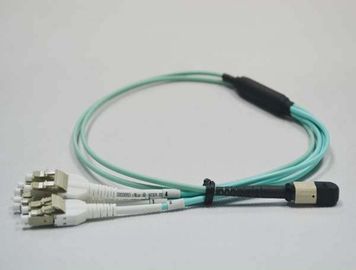

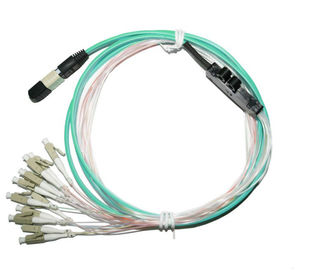

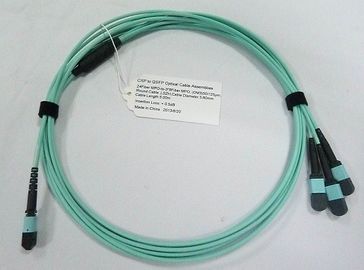

24 Fiber Optical MTP MPO Cable Assemblies OM3 10G Aqua 25 Meter Blue
| Place of Origin | china |
|---|---|
| Brand Name | YINGDA |
| Certification | ISO |
| Minimum Order Quantity | 50PCS |
| Price | Negotiable |
| Packaging Details | Packed in plastic bag, in a shipping outer carton box. |
| Delivery Time | 3-5working days after received your payment |
| Payment Terms | T/T or western Union |
| Supply Ability | 40,000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | MPO fanout cable,mpo patch cable |
||
|---|---|---|---|
Product Description
12/24 Fiber Optical MPO/MTP Cable assemblies OM3 10G aqua 25meter, 12cores ribbon fiber MPO-MPO patch
cord cable
Features
- High Performance in IL & RL
- 4,8,12 and 24fiber connector terminations and assemblies
- Designed for low loss and standard loss SM and MM applications
- Economical solution for mass-termination of fiber
- Suitable for MPO/MTP application
- Ruggedness round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
Unique Service:
- SAMPLES for quality testing are available
- 5days leading time if order quantity < 100pcs
- Drawing, Specification, Test Report can be sent at any time if request
- Quality complaint will handle in 24 hours by our After-sales Service Dept
Associated Standards
- Meets IEC Standard 61754-7& JIS C5982
- Structured cabling per TIA-568-C
- Parallel Optics
- - Optical Internet working Forum (OIF) Compliant
- - Infiniband Compliant
- Infiniband
- - 10G Fiber Channel Compliant
- - 40G and 100G IEEE 802.3
- - QSFP
Applications
- Optical switching inter-frame connections
- High fiber density card edge access
- Array trunk cables
- Data center cabling
Specifications
|
Fiber type |
Singlemode(APC polish) |
Multimode(PC/flat polish) |
||
|
Parameter |
Standard |
Low loss |
Standard |
Low loss |
|
Max. IL |
<0.7dB |
<0.35dB |
<0.7dB |
<0.35dB |
|
Return loss |
>60dB |
None |
||
|
Durability |
500matings |
|||
|
Operating temperature |
-40°C to 80°C |
|||
|
Test wavelength |
1310nm |
850nm |
||
