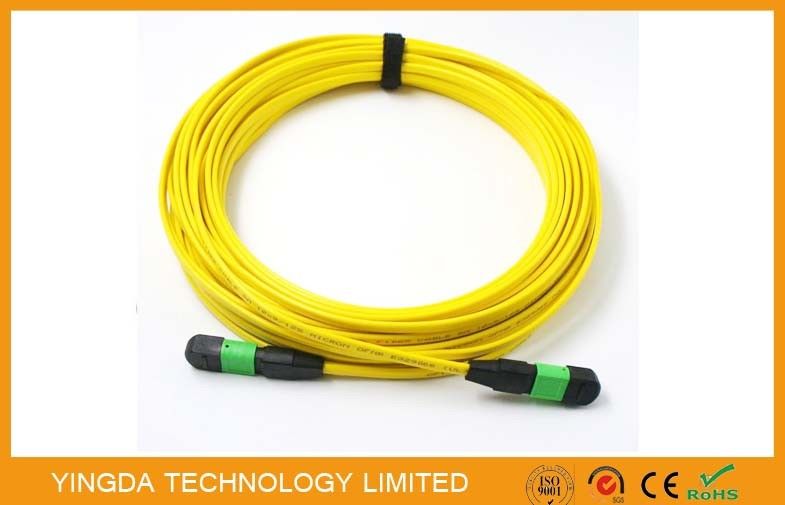

SM MM FTTX MTP MPO Cable 7.8 mm Ferrule , 24 Core Fiber Optic Patch Cable

Basic Information
Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: MTP-MTP 24
Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: 1pc/ box,200pcs/carton box
Delivery Time: 7days after payment
Supply Ability: 10,000 pcs per month
Contact Now
Detail Information
Connector: MTP Female Connector Fiber Type: OM1 OM2 OM3 OM4
Cable Type: Flat Ribbon Cable Fiber Count: 24 Fibers
Insertion Loss: <0.5dB Package: Vacuum Packing

Product Description

SM / MM FTTx MTP Patch Cord Fiber Optic 7.8 mm Ferrule, MPO Truck cable Flat Cable LSZH





MPO/MTP fiber optic patch cables is 12/24 fiber cable pre-terminated with MPO/MTP connectors

 at both ends. These MPO/MTP fiber cables are OFNP Plenum rated, OFNR Riser rated or LSZH

 jacket. These cables can be 12/24 fiber 4.5mm ribbon, 3mm round or bare ribbon cable. The MTP

/MPO cabling system is ideally suited for a high density environment that demands space saving

cable density and innovative cable management solutions. Simply install the MTP/MPO fiber cables

within the building and connect to the rear of a MTP/ MPO patch panel or ruggedized fan-Out.





Features

  • High Density Back Bone Cabling
  • Pre-terminated at Factory
  • Plug and Play, Speedy Installation
  • No on site termination
  • 65 - 75% space reduction
  • MTP 12 Core Connector on both ends
  • Test Report with each assembly

Specification



Item

SM

MM

Cable OD

MAX 5.5mm

Fiber Diameter

9/125um

62.5/125um  50/125um

Insertion Loss

  APC<0.7 dB

PC<0.7 dB

Return Loss

 APC>60 dB

PC>25 dB

Insert-pull test

(500times)<0.5 dB

Interchanging capability

<0.5 dB

Operating temperature

﹣40℃~+80℃





Application

  • Different buildings of the same enterprise local area network wiring
  • Optical active device interconnecting
  • Communication base internal wiring, distribution box wiring
  • Residential area, industrial area room, commercial building room
  • connecting optical light signal connect
  • Buildings high density wiring system
  • Optical fiber communication system, CATV network, telecommunication network
  • Metropolitan area network, wide area network, FTTx





Bare Fiber Colors



No

8 Ribbon fiber

No

12 Ribbon fiber

1

Blue

1

Blue

2

Orange

2

Orange

3

Green

3

Green

4

Brown

4

Brown

5

Gray

5

Gray

6

White

6

White

7

Red

7

Red

8

Black

8

Black

9

Yellow

9

Yellow

10

Violet

10

Violet

11

Pink

11

Pink

12

Aqua

12

Aqua





Order Information



P/N

Descriptions

MPOF-MPOF-12F-S62-01

MPO-MPO Trunk cable patch cord,

OS2 (G652D), 12 fibers, 1m Yellow

MPOF-MPOF-12F-S67-01

MPO-MPO Trunk cable patch cord,

SM (G657A), 12 fibers, 1m Yellow

MPOF-MPOF-12F-OM1-01

MPO-MPO Trunk cable patch cord,

OM1 (62.5/125um), 12 fibers, 1m Orange

MPOF-MPOF-12F-OM2-01

MPO-MPO Trunk cable patch cord,

OM2 (50/125um), 12 fibers, 1m Orange

MPOF-MPOF-12F-OM3-01

MPO-MPO Trunk cable patch cord,

OM3 (50/125um), 12 fibers, 1m Aqua

MPOF-MPOF-12F-OM4-01

MPO-MPO Trunk cable patch cord,

OM4 (50/125um), 12 fibers, 1m Aqua
