MTP MPO Cable
Created with Pixso. Data Center MPO MTP Fiber Optic Connectors 8 12 24 Fibers Female Male SM MM

Data Center MPO MTP Fiber Optic Connectors 8 12 24 Fibers Female Male SM MM

Brand Name: YINGDA
Model Number: MPO connector
MOQ: 100 pcs
Price: negotiable
Delivery Time: 7days after payment
Payment Terms: Western Union, T/T
Detail Information
Place of Origin:
China
Certification:
iso ce
Connector:
MPO MTP
Fiber Type:
Single Mode, Multi Mode
Fiber Count:
8 Fibers, 12fibers, 24fibers
Connector Color:
Green, Beige, Aqua, Purple, Rose Red, Etc
Connector Type:
MPO Female Connector, MPO Male Connector
Boot Size:
3.0mm Round
Connector Brand:
SENKO, USCONEC, China
Connector Length:
59mm
Dust Cap:
Soft Rubber
Packaging Details:
1 pc/ box, 160 pcs/carton box
Supply Ability:
10,000 pcs per month
Highlight:

MPO patch cord

,

mpo patch cable

Product Description

Data Center MPO MTP Fiber Optic Connectors 8 12 24 Fibers Female Male SM MM



Yingda design, develop molds and produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.



Fiber Optical MPO MTPConnectors Specification

Fiber count 8/12/24 Cores
Fiber mode Single Mode Multi mode
Polish type APC PC
Insertion loss 0.35dB Max (0.15dB Typ.) 0.35dB Max (0.15dB Typ.)
Return loss ≥60dB /
Operating wavelength 1310nm, 1550nm 850nm, 1300nm
Ferrule Concentrically ≤1um ≤4um
Cable Diameter 3.0mm
Durability >1000times
Operating Temp -40~85°C
House color Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

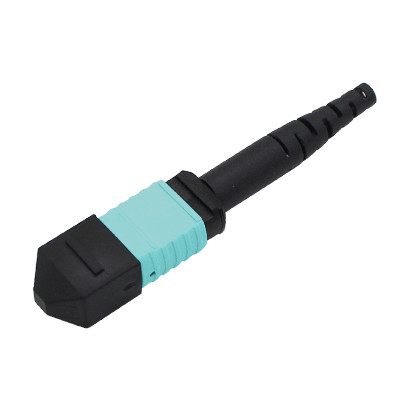

Data Center MPO MTP Fiber Optic Connectors 8  12 24 Fibers Female Male SM MM 0

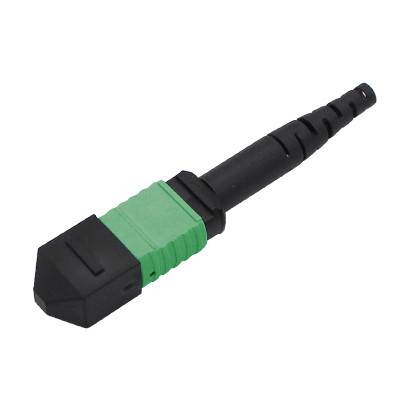

Data Center MPO MTP Fiber Optic Connectors 8  12 24 Fibers Female Male SM MM 1

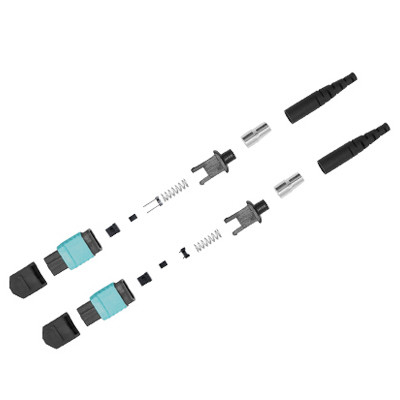

Dust Cap, Outer Housing, Ferrule Assembly(A/B), Spring, Stopper, Riveting Ring, Black Boot






MPO MTP fiber Cable Assembly Application

  • Test Equipment
  • Telecommunication Networks
  • Local Area Networks (LANs)
  • Data Processing Networks
  • Premise Installations
  • Wide Area Networks (WANs)
  • Industrial, Medical & Military
  • CATV, Metro
  • Active Device Termination

Data Center MPO MTP Fiber Optic Connectors 8  12 24 Fibers Female Male SM MM 2
