96 Fibers Rack Mount MTP MPO Cassette Management Patch Panel With 24 Fibers Truck Cable Assembly
  • name
  • name
  • name
  • name
  • name
  • name

96 Fibers Rack Mount MTP MPO Cassette Management Patch Panel With 24 Fibers Truck Cable Assembly

MOQ: 100 pcs
Price: 0.2USD-100USD
Standard Packaging: 1 pc/ box, 5 pcs / carton box
Delivery Period: 7days after payment
Payment Method: Western Union,T/T
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO CE
Model Number
YDMPO-1U-4XXX
Connector:
MPO MTP - LC SC FC ST
Max Cassette:
4 Pcs
Max Capacityy:
96 Fibers
Application:
Data Center, High Density FTTH FTTA
Cable Length:
1meter Or 1.5meter
Cable Length:
1meter Or 1.5meter
Cable Diameter:
0.9mm
Product Name:
MPO Patch Panel
Highlight:

MPO fanout cable

,

MPO patch cord

Product Description

96 Fibers Rack Mount MTP MPO Cassette Management Patch Panel Termination Box With 24 Fibers Truck Cable Assembly



YINGDA PHOTONIC Series rack mounted patch panel is designed to manage and house easy plug MTP / MPO to LC fiber cassette modules, for connecting plug-and-play pre-terminated high density MTP / MPO Fiber cabling system.This solution contributes to greater network availability that especially suitable for SAN, LAN and Data Center applications. Each easy-plug MTP / MPO to LC cassette is accommodated with a 12/24-fiber MTP / MPO based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices


Features

  1. Up to 4 Small MTP MPO modules in 1U height
  2. Multiple adapter options available,max, 576 cores fusion splice
  3. Accepts loose tube, distribution and pre-terminated cables
  4. ROHS, REACH SvHC and UL rated
  5. Fits standard 19” rack mount installation
  6. SC LC FC ST connectors available

96 Fibers Rack Mount MTP MPO Cassette Management Patch Panel With 24 Fibers Truck Cable Assembly 0

Specification


Size

1U (44mm)

Number of Ports

4

Width

482mm

Depth

380mm

Net Weight

3kgs

Packaged Weight

3.3Kgs

Material

1.2mm Cold-rolled steel

Material Coating

Powder coating

Color

Black

Standards

TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754,EN297-1

Compliant to

RoHS, Reach/SVHC

Max capacity

96 Cores LC

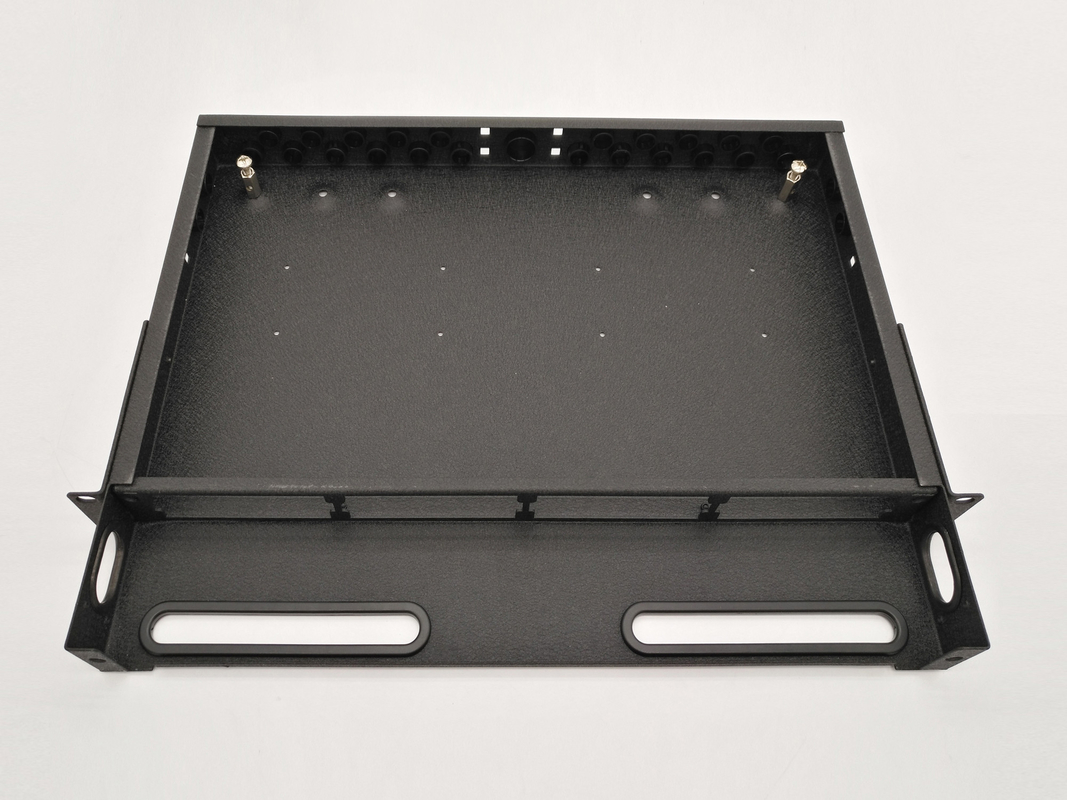

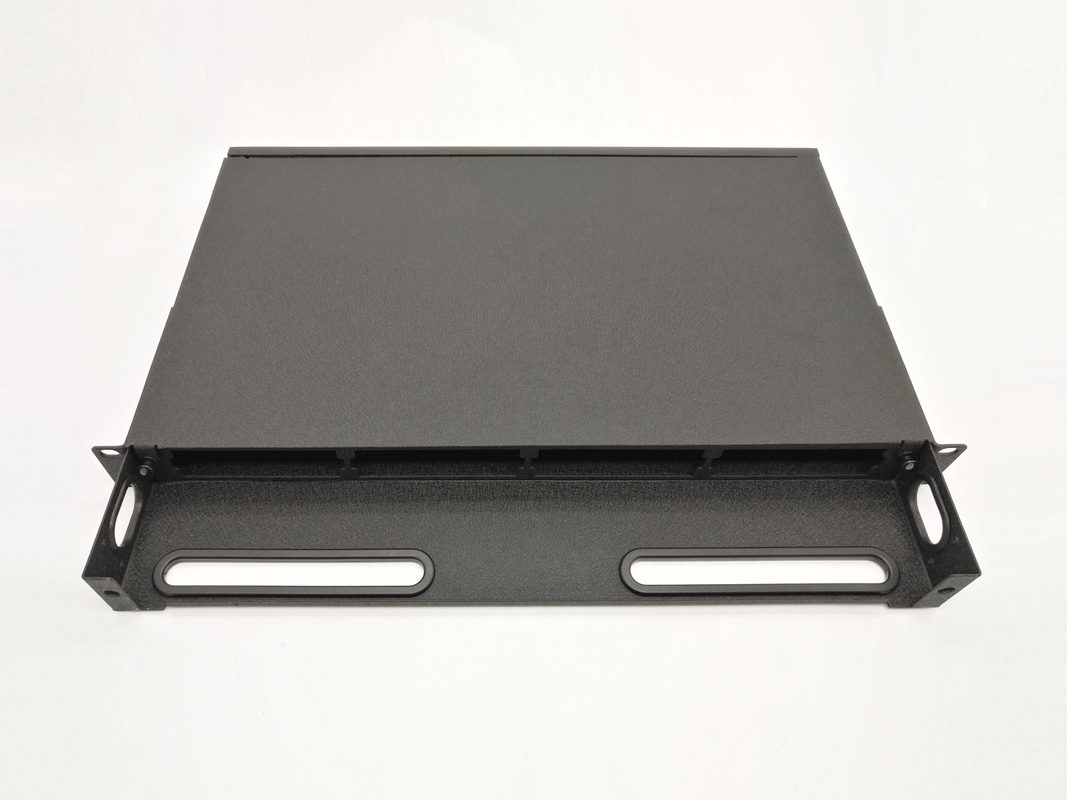

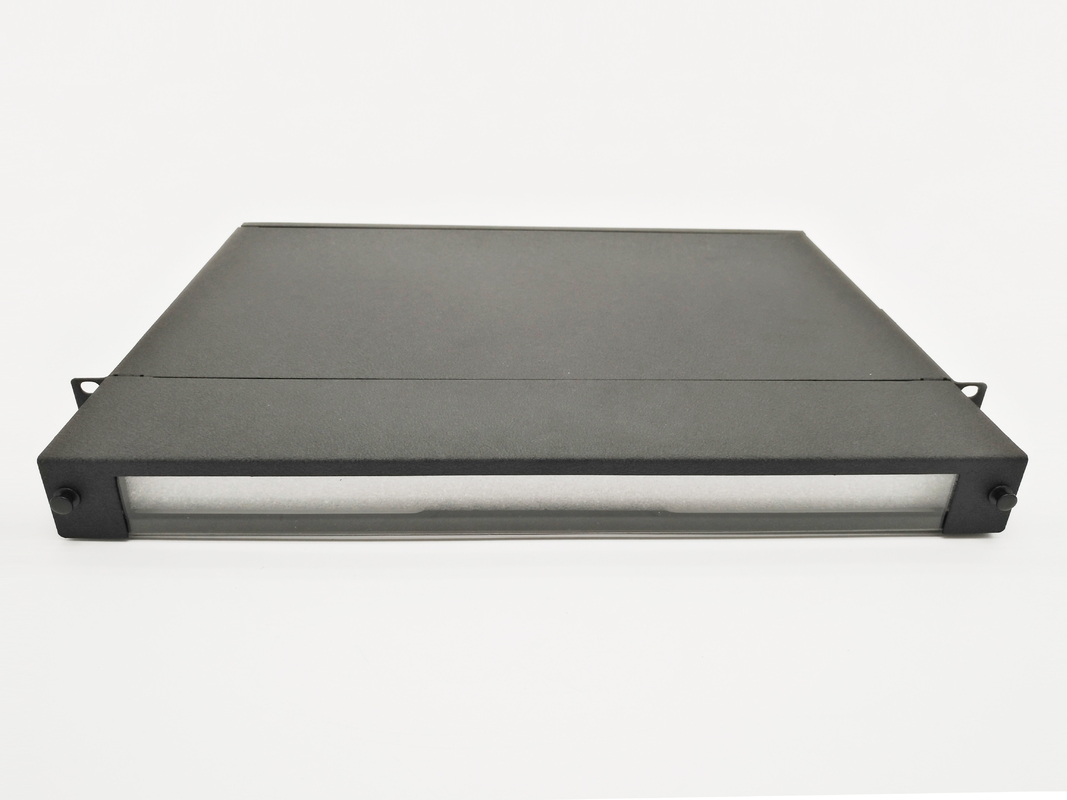

96 Fibers Rack Mount MTP MPO Cassette Management Patch Panel With 24 Fibers Truck Cable Assembly 196 Fibers Rack Mount MTP MPO Cassette Management Patch Panel With 24 Fibers Truck Cable Assembly 296 Fibers Rack Mount MTP MPO Cassette Management Patch Panel With 24 Fibers Truck Cable Assembly 396 Fibers Rack Mount MTP MPO Cassette Management Patch Panel With 24 Fibers Truck Cable Assembly 4

Applications


● Data center
● Telecommunication networks
