MTP MPO Cable
Created with Pixso. FC 12 Core Fiber Trunk Cable , MTP MPO Cable Ribbon 3M Single Mode 0.9mm

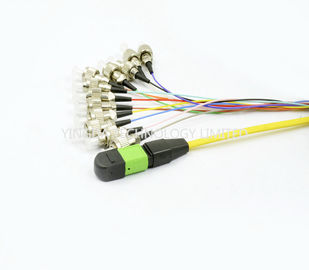

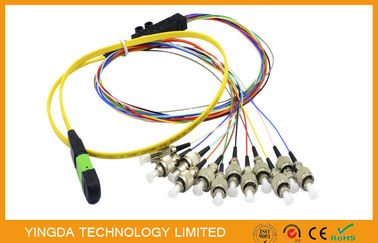

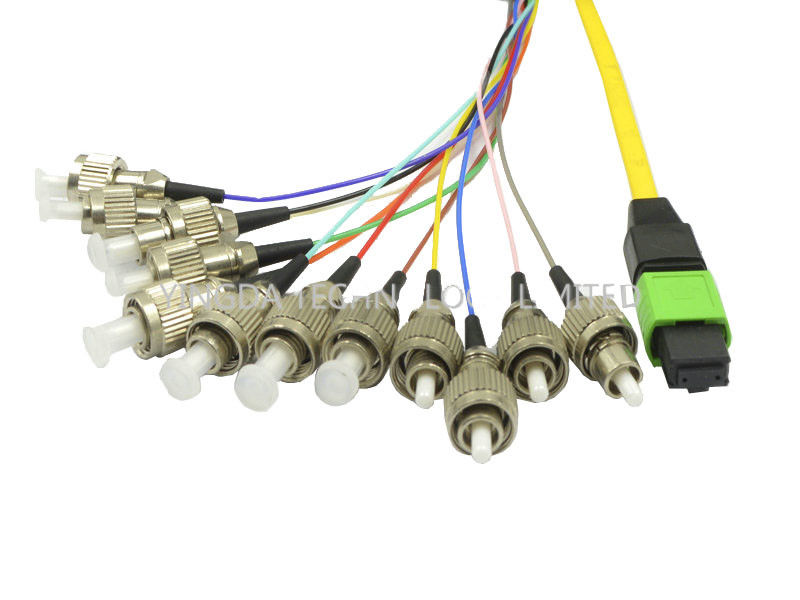

FC 12 Core Fiber Trunk Cable , MTP MPO Cable Ribbon 3M Single Mode 0.9mm

Brand Name: YINGDA
Model Number: MTPf-12FC-OS1-02-09
MOQ: 100 pcs
Price: negotiable
Delivery Time: 7days after payment
Payment Terms: Western Union, T/T
Detail Information
Place of Origin:
china
Certification:
ISO SGS ROHS
Connector:
MPO Male
Fiber Type:
OS1 SM Multi-fiber Cable
Cable Type:
Multi-fiber Ribbon Cable
Fiber Count:
12 Fiber FC
Insertion Loss:
<0.3dB
Package:
Vacuum / Plastic Packing
Packaging Details:
1 pc/ box, 160 pcs/carton box
Supply Ability:
10,000 pcs per month
Highlight:

MPO patch cord

,

mpo patch cable

Product Description

MPO FC 12 Cores Fiber Trunk Cable, MTP MPO Cable Ribbon 3M Single Mode 0.9mm





MPO fiber optic patch cord is composed of high precision connectors and cables, suitable for telecommunication system high density network connectivity solutions. The outside of the connector is precise plastic parts, including push and pull plug locking mechanism, precise PIN needle to

 ensure accurate matching. Generally use 4 core, 8 core, 12 core optical fiber ribbon cable. MPO optical fiber jumper has high accuracy ferrule

 and high quality optical fiber cable, carefully manufactured by our company's unique grinding technology, the ferrule end face have both type:

 PC and APC. It also has high precise MPO adapter, low insertion loss, which ensures long-term optical stability and mechanical properties.





40G MPO Cable Features

  1. Comply with G5982 & IEC61754 - JIS
  2. multi core optical fiber connector
  3. Mult-fiber termination of 4f, 8F, 12F & 24F fibers
  4. precision multi core inserted chip of Precision Multifiber MT Femule
  5. pushpulll locking Push-pull latching
  6. can choose male / female joint Male and Female connector type
  7. can choose a ribbon cable and micro cable
  8. Bare & Ruggedized Ribbon and Mic round cable





40G MPO To FC Connector Cable Technical Specification



MPO/MTP Connector

Standard

SM MT Ferrule

Low Loss(Elite)

SM MT Ferrule

Standard

MM MT Ferrule

Low Loss

MM MT Ferrule

Insertion Loss

Typical   (dB)

0.35

0.20

0.35

0.20

Maximum (dB)

0.75

0.35

0.60

0.35

Return Loss (dB)

≥50 for APC(8 Angle Polish)

≥20 for PC

≥35 for PC

Male/Female

Mate:With Pins,Female:Without Pins

Exchange abilty    (dB)

≤0.3(Connect Randomly)

Tensile Strength  (dB)

≤0.3(Max 66N)

Vibration (dB)

≤0.3(10-55Hz)

Temp Range  (dB)

≤0.3(-40~75℃,42Cycles)



MPO MTP Cable Ordering Information



MPO-male/APC/12F-FC/UPC/SM/Φ0.9-L/L1-RJ

①                ②    ③   ④   ⑤    ⑥    ⑦   ⑧ ⑨ ⑩



①

Connector Type 1#

MPO-female, MPO-male

End face

APC,PC

Fiber Count

4,8,12 & 24 MT Fibers

Connector Type 2#

MPO/female*,MPO-male,FC,SC,ST,MU,LC,E2000

End face 2#

PC,UPC,APC

⑥

Fiber Mode

SM=Single Mode,MM=Multi Mode(50,62.5,OM2,OM3,OM4)

Pigtail Diameter

Φ2,Φ0.9

Cable Length

L=1,2,3,4… Meter

Pigtail Length

L1=0.5,0.6,1.0 Meter

Temp Range

RJ:Jacket Ribbon Cable,RB:Bare Ribbon Cable,MC:250um mini round cable
