Polarity B 12 Fiber Optic MTP MPO APC Female to Male Patch Cord Truck Cable Assembly

MOQ: 100 pcs
Price: 0.2USD-100USD
Standard Packaging: 1pc/ box,200pcs/carton box
Delivery Period: 7days after payment
Supply Capacity: 10,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO CE
Model Number
MPOF-MPOM-12F-SA1-3002
Connector:
MPO Male Connector, MPO Female Connector
Fiber Type:
Single Mode G657A1
Cable Type:
Round 3.0mm Cable
Fiber Count:
12 Fibers
Cable Color:
Yellow
Cable Jacket:
LSZH
Elite Insertion Loss:
<0.35dB
Return Loss:
>60dB
Wavelength:
1310nm 1550nm
Highlight:

MPO fanout cable

,

MPO patch cord

Product Description

Polarity B 12 Fiber Optic MTP MPO APC Female to Male Patch Cord Truck Cable Assembly




MPO fiber optic patch cord is composed of high precision connectors and cables, suitable for telecommunication system high density network connectivity solutions. The outside of the connector is precise plastic parts, including push and pull plug locking me hanism, precise PIN needle to ensure accurate matching.

Generally use 4 core, 8 core, 12 core optical fiber ribbon cable. MPO optical fiber jumper has high accuracy ferrule and high quality optical fiber cable, carefully manufactured byYingda unique grinding technology, the ferrule end face have both type: PC and APC.

It also has high precise MPO adapter, low insertion loss, which ensures long term optical stability and mechanical properties.

Features

  • High Performance in IL & RL
  • 4,8,12 and 24fiber connector terminations and assemblies
  • Designed for low loss and standard loss SM and MM applications
  • Economical solution for mass-termination of fiber
  • Suitable for MPO/MTP application
  • Ruggedized round cable, oval cable and bare ribbon options available
  • Color coded housings available to differentiate fiber type, polish type and/or connector grade



MPO MTP Connectors Specification

Item SM MM
Cable diameter 3.0mm
Fiber diameter 9/125um 62.5/125um,50/125um
Insertion loss Standard loss<0.7 dB, Elite loss<0.35dB
Return loss APC＞60 dB PC＞25 dB
Insert-pull test (500times)＜0.5 dB
Operating temperature ﹣40℃～＋80℃
Associated Standards

Meets IEC Standard 61754-7& JIS C5982
Structured cabling per TIA-568-C
Parallel Optics
Optical Internet working Forum (OIF) Compliant
Infiniband compliant
10G Fiber Channel Compliant
40G and 100G IEEE 802.3
QSFP

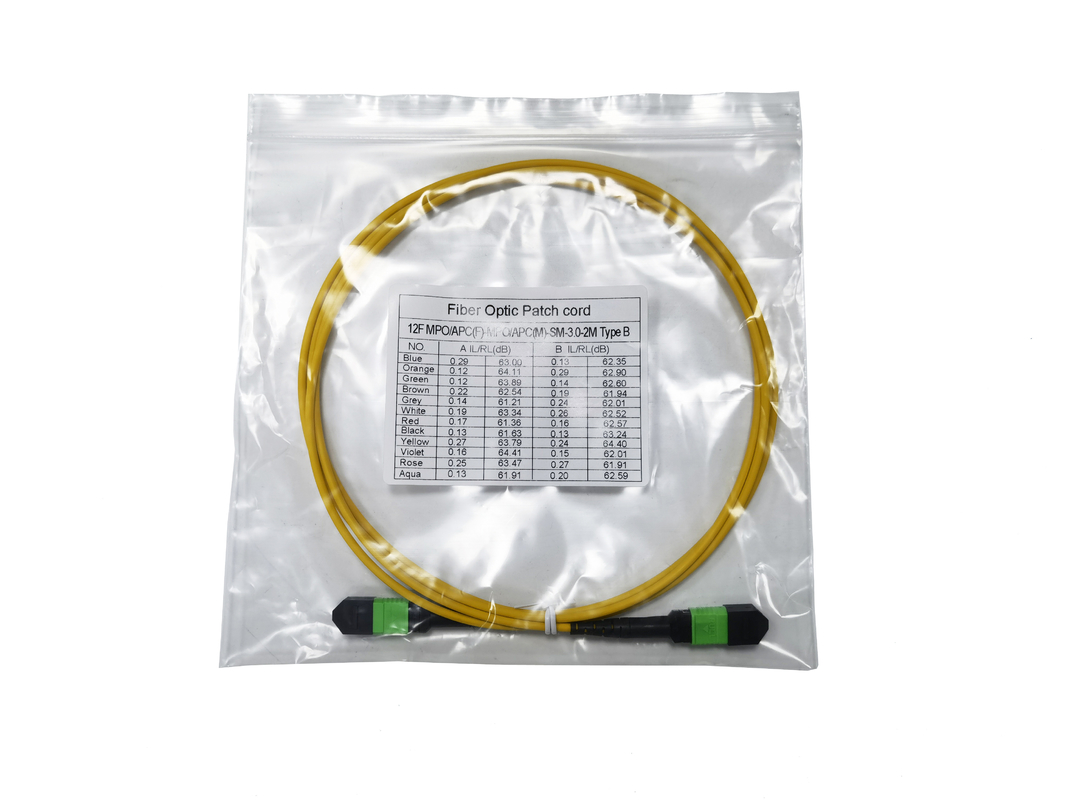

Polarity B 12 Fiber Optic MTP MPO APC Female to Male Patch Cord Truck Cable Assembly 0

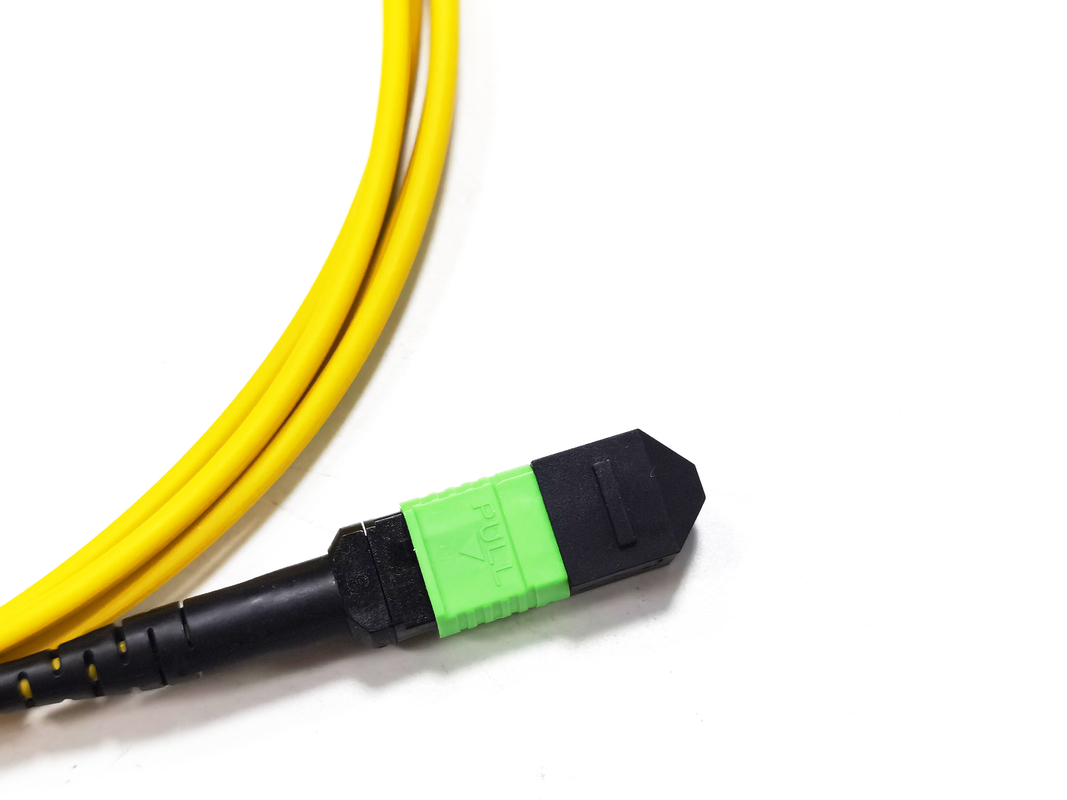

Polarity B 12 Fiber Optic MTP MPO APC Female to Male Patch Cord Truck Cable Assembly 1

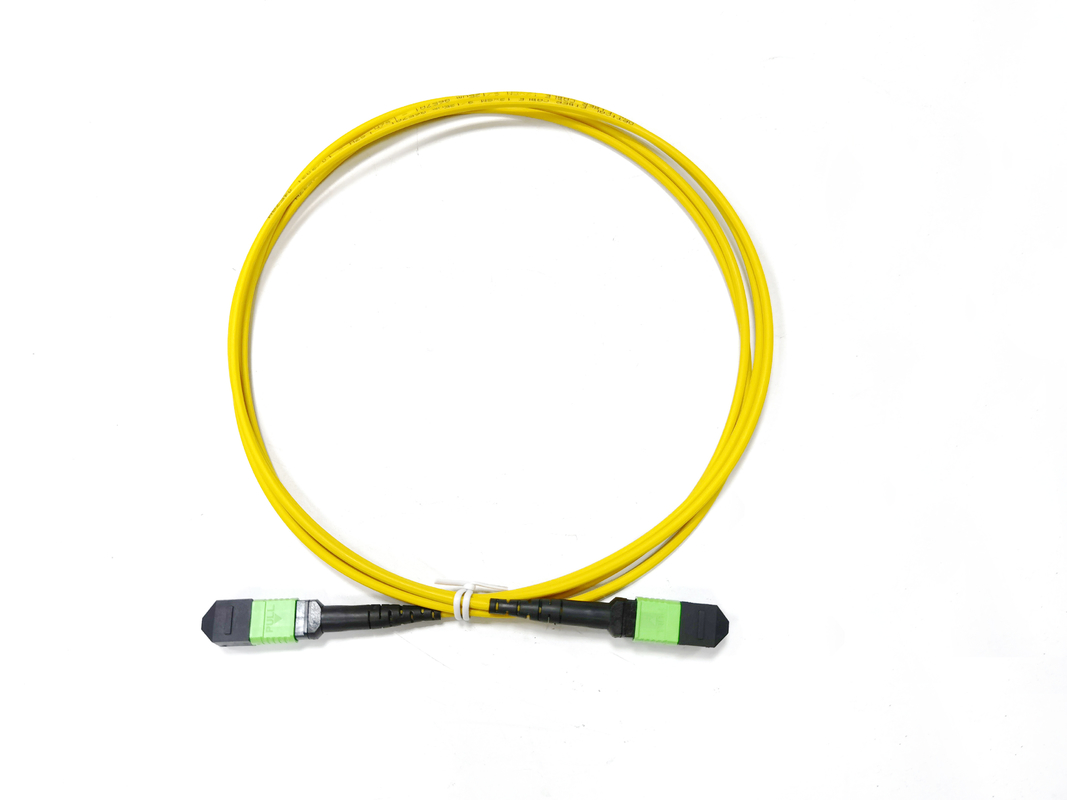

Polarity B 12 Fiber Optic MTP MPO APC Female to Male Patch Cord Truck Cable Assembly 2



Applications

  • Optical switching inter-frame connections
  • High fiber density card edge access
  • Array trunk cables
  • Data center cabling

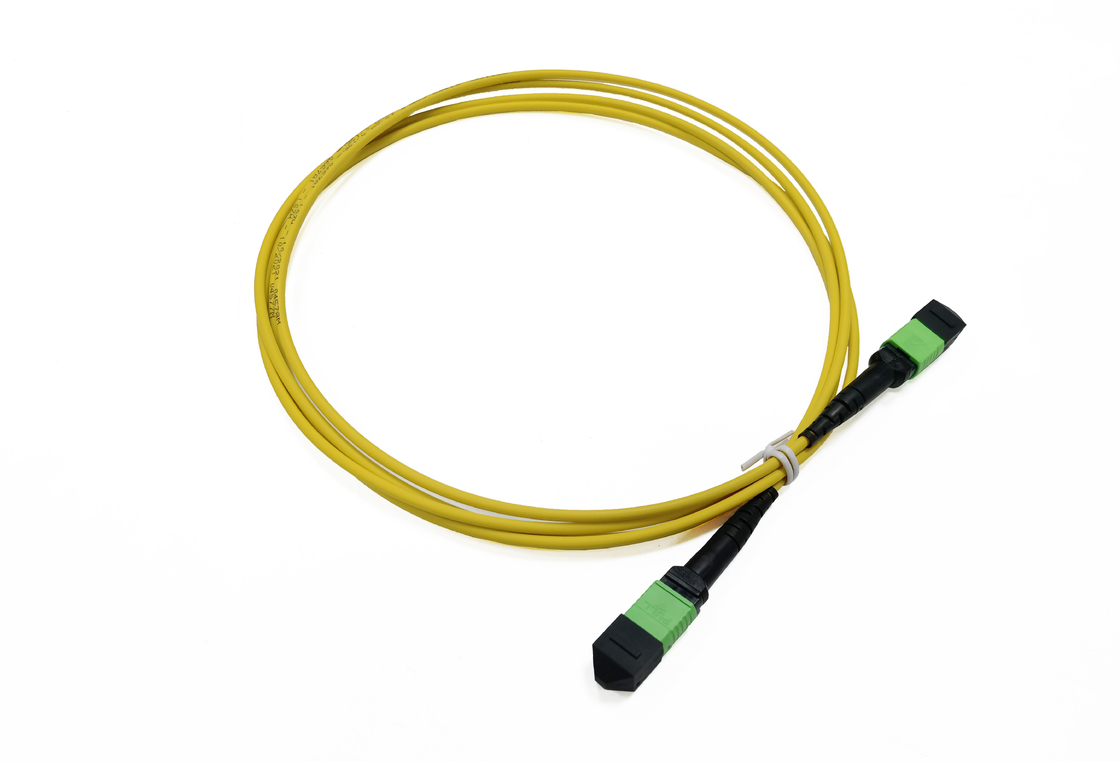

Polarity B 12 Fiber Optic MTP MPO APC Female to Male Patch Cord Truck Cable Assembly 3

Order information

MPO connector type MPO/PC, MPO/APC, MTP/PC, MTP/APC
MT type Female, male
Fiber type Single mode, multi mode
Fiber count 4fiber, 8fiber, 12fiber, 24fiber
Standard connector type SC LC FC ST etc.
Insertion loss IL<0.35dB, IL<0.7dB
Polarity tyep A B C


Related products:
MPO adapter, MTP adapters, MPO/MTP ODF optical distribution frame, terminal box, MTP bare ribbon adapter, LC adapters, etc.

If any inquiry, please contact with us directly!
