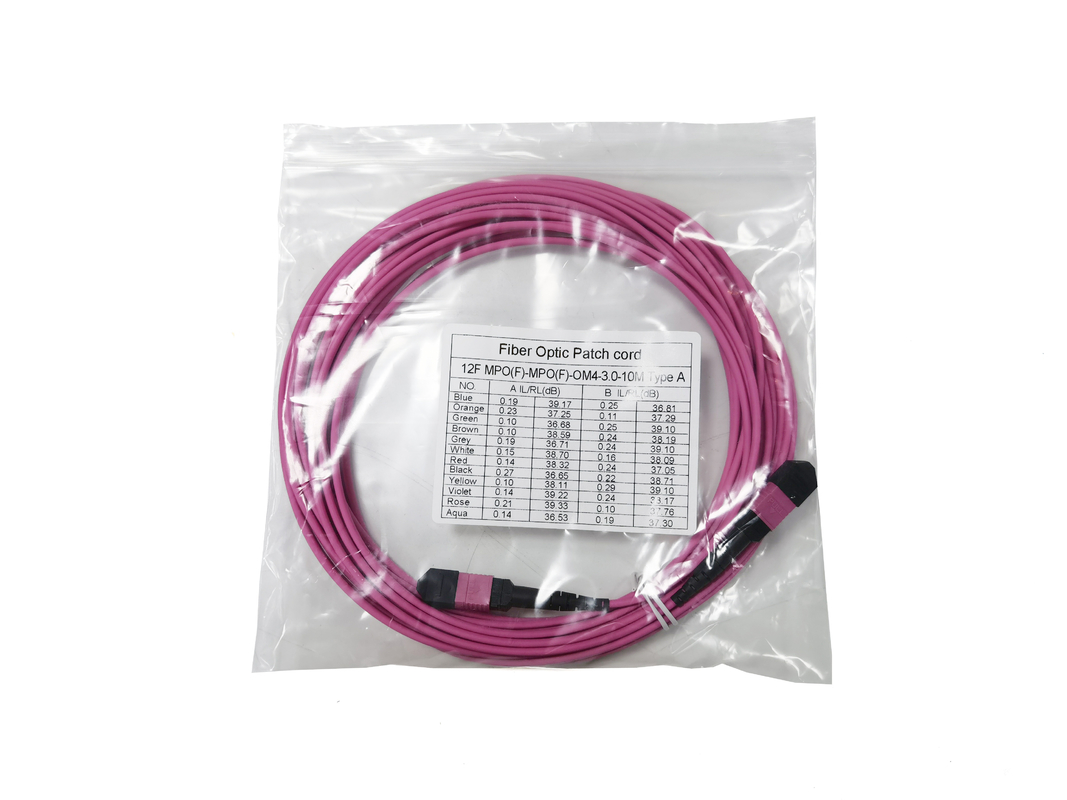

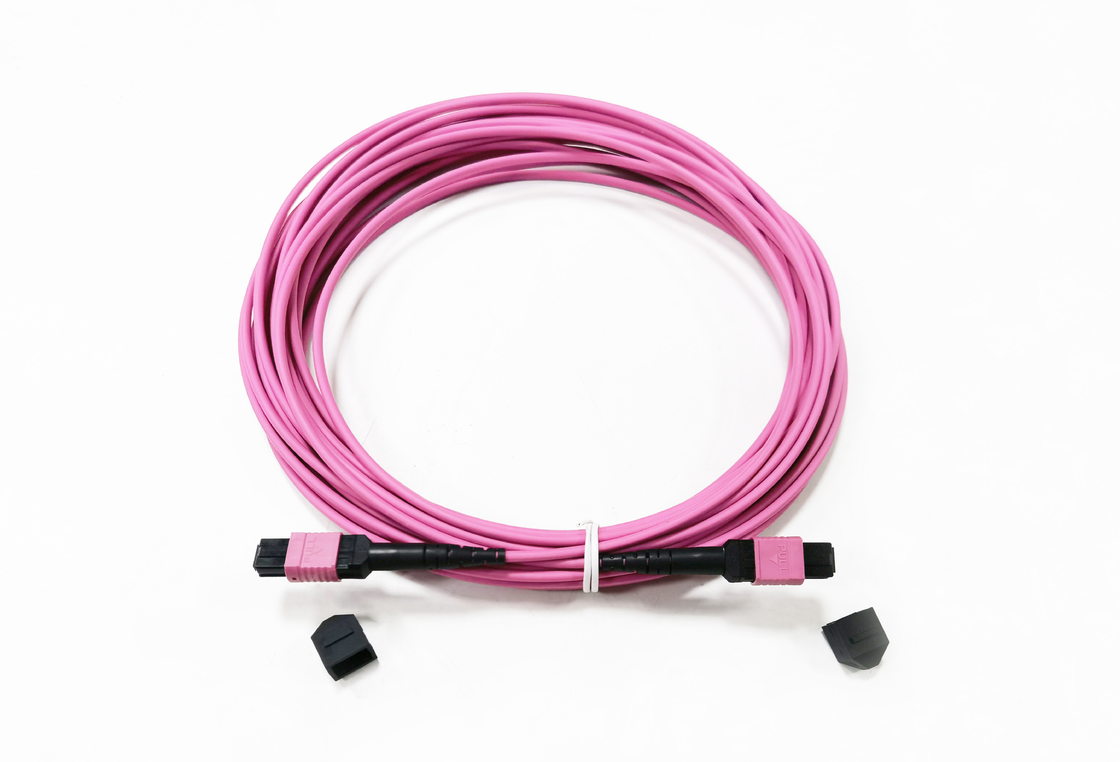

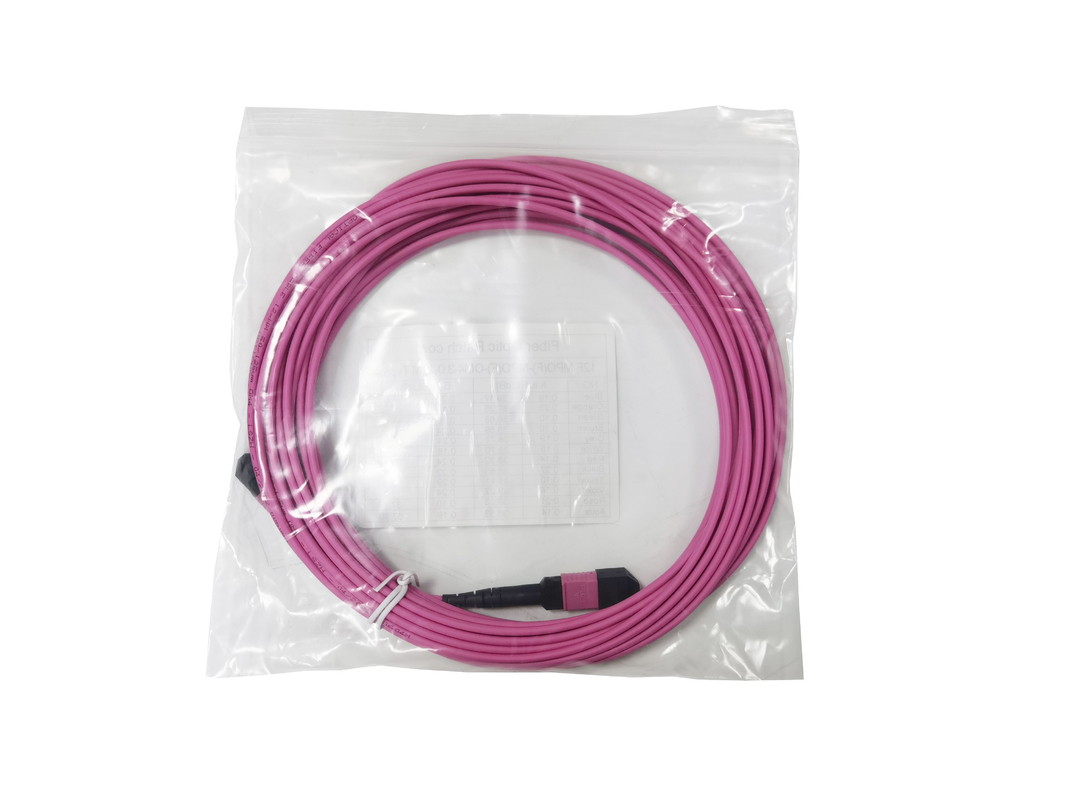

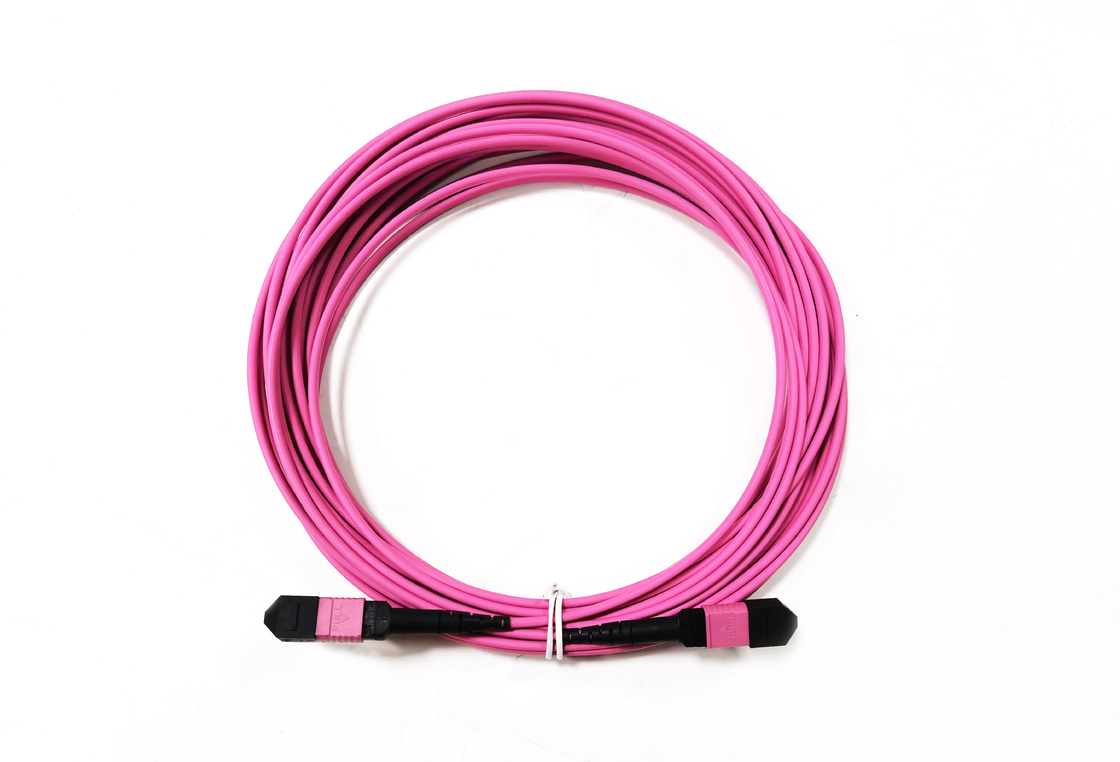

12 Fiber MPO Female Connector Patch Cord OM4  50/125um Elite Loss 0.35dB Purple Polarity A

12 Fiber MPO Female Connector Patch Cord OM4 50/125um Elite Loss 0.35dB Purple Polarity A

  • High Light

    MPO fanout cable

    ,

    MPO patch cord

  • Connector
    MPO MTP Female Connectors
  • Fiber Type
    OM4 Multimode 50/125um
  • Cable Type
    12colors Bundle Cable
  • Fiber Count
    12 Cores MPO
  • Cable Color
    Purple
  • Cable Jacket
    LSZH
  • Insertion Loss
    <0.35dB
  • Return Loss
    >25dB
  • Wavelength
    850nm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    MPOF-MPOF-12F-OM4-3010
  • Minimum Order Quantity
    100 pcs
  • Price
    negotiable
  • Packaging Details
    1pc/ box,200pcs/carton box
  • Delivery Time
    7days after payment
  • Supply Ability
    10,000 pcs per month

12 Fiber MPO Female Connector Patch Cord OM4 50/125um Elite Loss 0.35dB Purple Polarity A

12 Fiber MPO Female Connector Patch Cord OM4 50/125um Elite Loss 0.35dB Purple Polarity A



MPO/MTP fiber optic patch cable consists of multi core fiber optic cable and corresponding 4/8/12/24 core high density MPO MTP connector. The connector might be female or male with guide pin. The cable from 4-144core, single mode or multi mode, the single mode fiber including G652D G657A G657A2, the multi mode fiber including 62.5/125um. 10G OM2/OM3/OM4, OR BENDING INSENSITIVE 10G multi mode cable.



12 Fiber MPO Patch Cord Features

  1. High Performance in IL & RL
  2. 4,8,12 and 24 fiber connector terminations and assemblies
  3. Designed for low loss and standard loss SM and MM applications
  4. Economical solution for mass-termination of fiber
  5. Suitable for MPO/MTP application
  6. Ruggedness round cable, oval cable and bare ribbon options available
  7. Color coded housings available to differentiate fiber type, polish type
  8.  and/or connector grade



MPO/MTP Cable Solution Specification

Fiber type

Single mdoe (APC polish)

Multi mode (PC flat polish)

Parameter

Standard

Low loss

Standard

Low loss

Max. Insertion loss

<0.7dB

<0.35dB

<0.7dB

<0.35dB

Return loss

>60dB

NONE

Durability

500 mating's

Operating temperature

-40°C ~+85°C

Test wavelength

1310nm

850nm

12 Fiber MPO Female Connector Patch Cord OM4  50/125um Elite Loss 0.35dB Purple Polarity A 0


12 Fiber MPO Female Connector Patch Cord OM4  50/125um Elite Loss 0.35dB Purple Polarity A 1


12Fiber MTP Patch Cord Application

  • Optical switching inter-frame connections
  • High fiber density card edge access
  • Array trunk cables
  • Data center cabling

12 Fiber MPO Female Connector Patch Cord OM4  50/125um Elite Loss 0.35dB Purple Polarity A 2


12 Fiber MPO Female Connector Patch Cord OM4  50/125um Elite Loss 0.35dB Purple Polarity A 3




12 Fiber MPO Female Connector Patch Cord OM4  50/125um Elite Loss 0.35dB Purple Polarity A 4


MPO Connector Polarity Configurations

MPO connectors have two characteristics that enable them to change the path of optical signals

(signal polarity). First, MPO connectors hold a group of fibers in fixed positions relative to some

keying feature. Second, they can be used to construct patch cords in two different orientations,

either key-up/key-up or key-up/key-down.



 Key-up/Key-Down Construction

 12 Fiber MPO Female Connector Patch Cord OM4  50/125um Elite Loss 0.35dB Purple Polarity A 5

When a patch cord is constructed in a key-up / key-down configuration, the fiber arrangement

on both connectors is identical about the vertical axis (the fiber arrangement is not mirrored).

For example, on connector A the blue fiber is to the left with the key up, and on connector B

the blue fiber is also to the left with the key up. Signals input on the left side of connector A

will be output on the left side of connector B.



 12 Fiber MPO Female Connector Patch Cord OM4  50/125um Elite Loss 0.35dB Purple Polarity A 6

Key-up/Key-down Patch cords Do Not Mirror About the Vertical Axis
