96 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network

96 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network
96 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network 96 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network 96 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network 96 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network

Large Image :  96 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network

Product Details:
Place of Origin: china
Brand Name: YINGDA
Certification: ISO CE ROHS
Model Number: MTPP-1U -4X
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: 1 pc/ box, 5 pcs / carton box
Delivery Time: 7days after payment
Payment Terms: Western Union, T/T
Supply Ability: 10,000 pcs per month

96 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network

Description
Connector: 12 Fiber MPO MTP, LC Connectors Max Cassette: 4 Pcs MPO Cassette
Max Capacityy: 96 Fiber Cores Application: Data Center, High Density Network
Cable Length: 0.35 Meter Cable Diameter: 20 Mm
Cable Ports: 4 Round Ports At Back Box Type: MPO Patch Panel
High Light:

MPO MTP fiber patch panel enclosure

,

ROHS fiber patch panel enclosure

,

96 Fibers patch panel enclosure

96 Fibers MPO MTP Optical Patch Panel Enclosure Data Center High Density Cable System




Quick Details of 1U Fiber Optic Patch Panel

  • Max capacity: 96cores
  • 24cores MPO cassette, total 4pcs
  • Total 48pcs LC duplex coupler
  • Sliding patch panel 1U rack with metal drawer



MPO Sliding Drawer Type Fiber optic patch panel are the auxiliary equipment for data center and high density cabling system, it is large capacity and small size, good performance. It is 19inch standard size for rack mount optical distribution frame, suitable to use LC duplex couplers.



MPO Patch Panel Features

  • Standards: IEC / EN 61754-7 (MPO connector) and TIA-568-B.1-7
  • Modular connection system: Factory pre terminated optical fiber connection components, any length and any optical fiber SM & mm, trunk cable and module box, easy installation, plug and play system solution
  • High density connection system: compact design, 12 core connector, up to 96 core optical fiber 1U rack mount
  • After factory pre termination and testing, the quality assurance and consistency exceed the demand of 10Gbit
  • Made of high quality Cold rolled steel sheet, with electrostatic spraying
  • Metal sliding tray of the splice tray and bottom, easy and fast to operate without open the cover
  • Total front operation with cable clamps and routing area, large fiber management area



MTP Patch Panel Specification

Dimension 482*315*1U mm
Max capacity 96 cores
Material Cold rolled steel SPCC
Cable entry port 4 round port with rubber φ20mm
Cable exit port Lc duplex adapters
Adapter quantity 48 pcs
Operating temperature -10~+85°C
Standards TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-C, CEA/EIA-310-E, ANSI/TIA/EIA-606-A, GR-449-CORE, RoHS
IP Rating IP20
Color Black



12Fiber Optic Connector Specification

Insertion loss <0.7dB(standard loss), <0.35dB (Elite loss)
Return loss >65dB APC, >50dB UPC, >30dB PC
Mating durability 500 times
Wavelength 850-1550nm
Standards IEC61300, IEC61754, ROHS, etc

96 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network 0

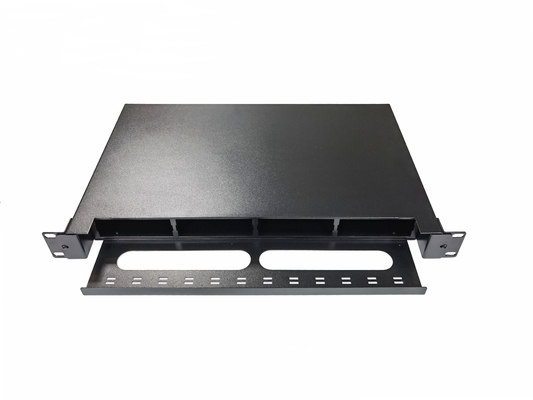

1U rack mount patch panel, suitable for standard 19inch rack mount optical districution frame, mounting ears at both sides to fix on ODF.

This optical fiber enclosure is made colled rolled steel with spary, black color and with large fiber management area at front plate.

-----------------------------------------------------------------------------------------------------------------------------------------

96 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network 1

Cable entry quantity and the cable diameter can be customzed, all ports with cable clamps and fixtures internal easy operation.

-----------------------------------------------------------------------------------------------------------------------------------------

96 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network 2

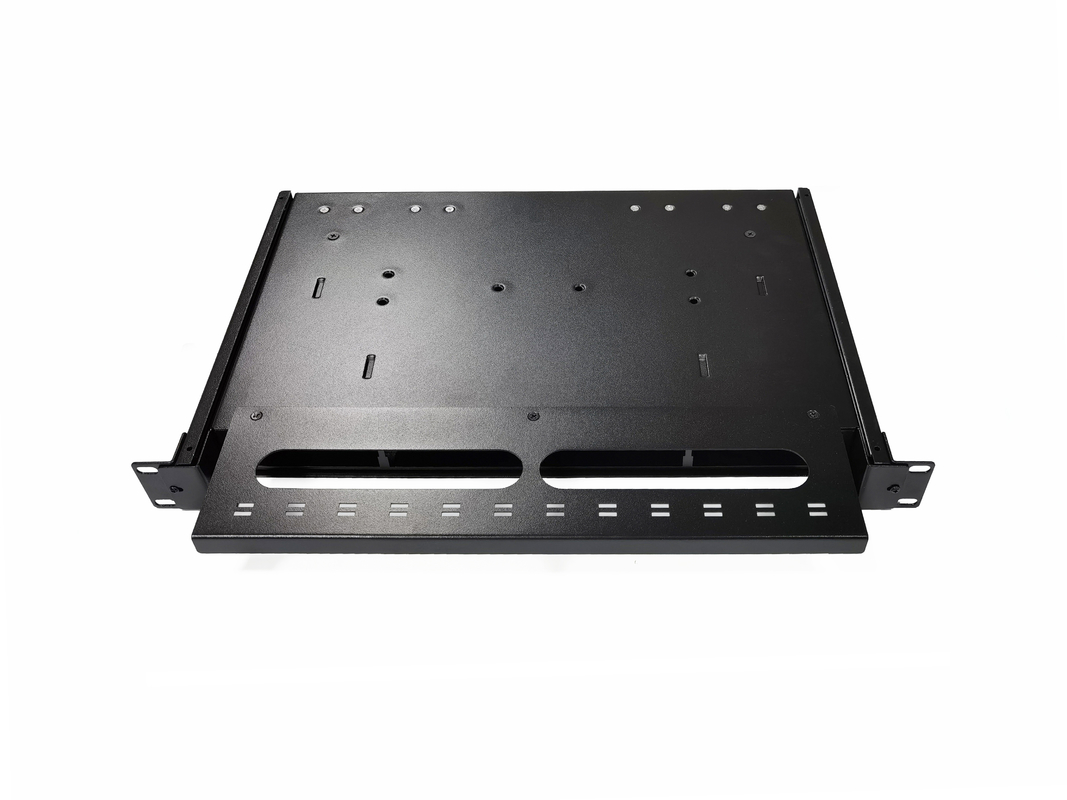

This drawr type fiber patch panel is with metal sliding tray at both sides, easy to operation at front after take whole internal out, no need to open the top cover.

-----------------------------------------------------------------------------------------------------------------------------------------

96 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network 3

1U rack maximum install 4pcs MPO cassettes, each modular 24 fibers with MPO MTP adapter, MPO LC patch cord and LC adapters.

can use 8fibers, 12fibers  or 24fibers MPO on customer request.

-----------------------------------------------------------------------------------------------------------------------------------------



96 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network 4

-----------------------------------------------------------------------------------------------------------------------------------------

Standard items to configurate

96 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network 596 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network 696 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network 796 Fibers MPO MTP Fiber Patch Panel Enclosure For Data Center High Density Network 8



This patch panel can fully load with 8pcs MPO-mpo truck cable, 8pcs 12cores MPO LC patch cable assembly, 8pcs MPO MTP adapters,  LC duplex coupler 12*4 = 48pcs;

if customer need,  pre-terminated cable assembly in factory and pack them well before delivery.

100% test before delivery, quality assurance.
