Outdoor Fiber Optic Splice Closure Joint Box 144 Cores 5 Ports PP Dome Heat Shrink Seal

Outdoor Fiber Optic Splice Closure Joint Box 144 Cores 5 Ports PP Dome Heat Shrink Seal

  • High Light

    144 Cores Fiber Optic Splice Closure

    ,

    PP Dome Fiber Optic Splice Closure

    ,

    5 Ports Fiber Optic Splice Closure

  • Shape
    Dome Splice Closure
  • Max Capacity
    144 Fibers Splicing Closure
  • Cable Port
    1 Oval + 4 Round Port
  • Cable Diameter
    Φ10mm~Φ25 Mm
  • Material
    PP+GF Body, ABS Tray
  • Splice Tray Qty
    Max. 6 Pcs 24CORES Tray
  • Closure Dimension
    421*185 Mm
  • Weight
    3.5 Kgs
  • Sealing Method
    Heat Shrink Tube 、 Sleeve
  • Waterproof Class
    IP68
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO, SGS, CE
  • Model Number
    FOSC400B4 GJS-03A
  • Minimum Order Quantity
    100 PCS
  • Price
    Negotiable
  • Packaging Details
    1pc / box, 4 pcs/ carton box
  • Delivery Time
    5days after pay
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

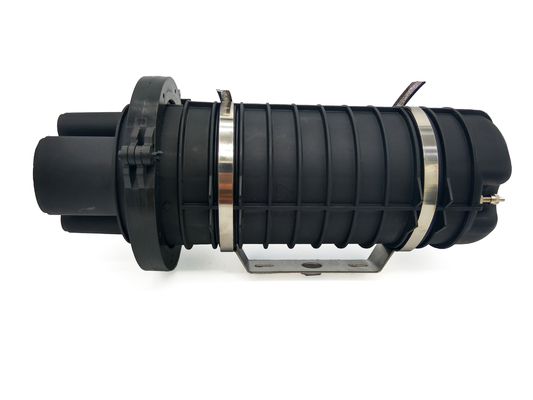

Outdoor Fiber Optic Splice Closure Joint Box 144 Cores 5 Ports PP Dome Heat Shrink Seal

144 Cores PP Dome Outdoor Fiber Optic Splice Closure Joint Box 5 Ports Heat Shrink Seal



FOSC400A4 fiber optic splice closures are specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 24 fibers; Available for 6 trays to splice total 144 fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.

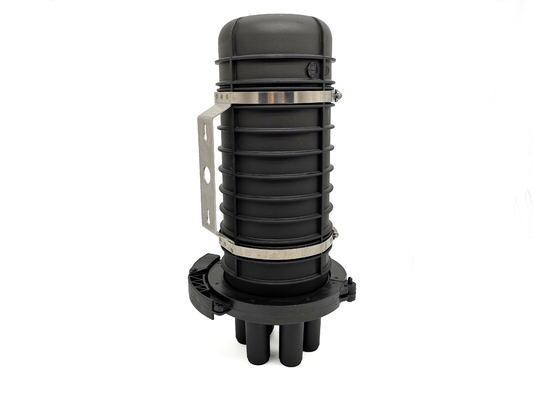

 Outdoor Fiber Optic Splice Closure Joint Box 144 Cores 5 Ports PP Dome Heat Shrink Seal 0

Dome Fiber Optic Closure Specification

Model

Tray

qty

Tray capacity /fibers Total capacity /fibers Dimension /mm Entry port dia. Raw material
FOSC400 A4 6 24 144 410*250

4 round ports available for cable dia.<11.5mm;

1 oval port available for 2pcs dia. ≤ 20mm

Modified PP +GF;

tray:ABS



144 cores optical fiber splice closure Features

  • May be used for cut, uncut and taut sheath applications.
  • May be used for all fiber optic cable.
  • Sheath retention & central strength member termination system included.
  • Ribbed closure construction-lightweight plastic offers strength and resistance
  • to chemical and U.V attack
  • Installation and reentry with a minimum of tools
  • All hardware are captivated

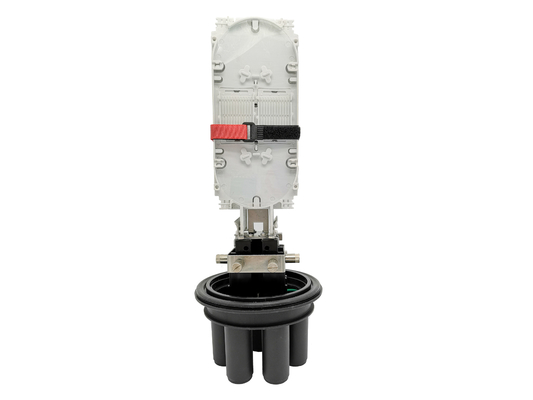

Outdoor Fiber Optic Splice Closure Joint Box 144 Cores 5 Ports PP Dome Heat Shrink Seal 1

---------------------------------------------------------------------------------------------------------------------------------------------------

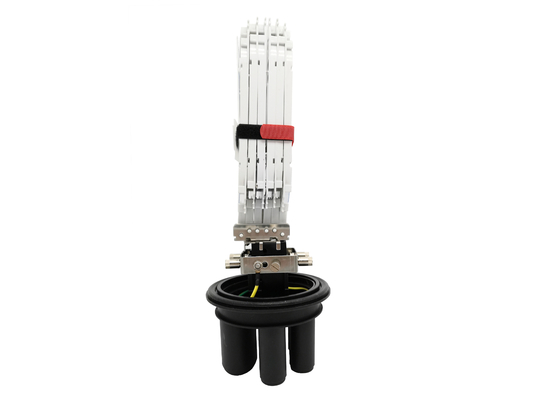

Outdoor Fiber Optic Splice Closure Joint Box 144 Cores 5 Ports PP Dome Heat Shrink Seal 2

---------------------------------------------------------------------------------------------------------------------------------------------------

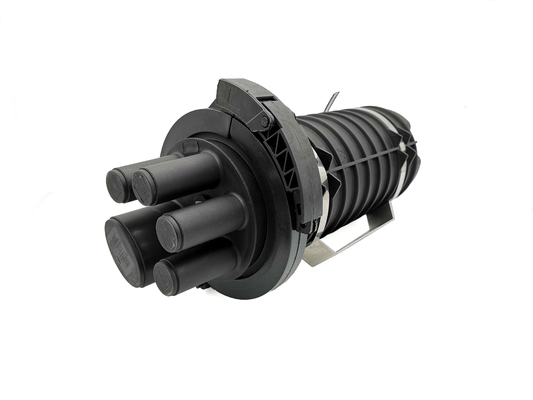

Outdoor Fiber Optic Splice Closure Joint Box 144 Cores 5 Ports PP Dome Heat Shrink Seal 3

---------------------------------------------------------------------------------------------------------------------------------------------------



FOSC Standard accessories

Dome, Base, clamp, O-ring, metal storage basket, Splice Tray, Heat shrink protective sleeve, buffer tube, Cable ties,Grounding wire, Labeling paper, Installation Manual



1 set of Oval port closing kits:

Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper (2.5 x30mm)+ branching clip etc



4 sets of Round port closing kits:

Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm), etc



Optional accessories

Hanging hook, Wall mounting (Duct mounting) kits, Pole Mounting kit, Grounding device, Air valve

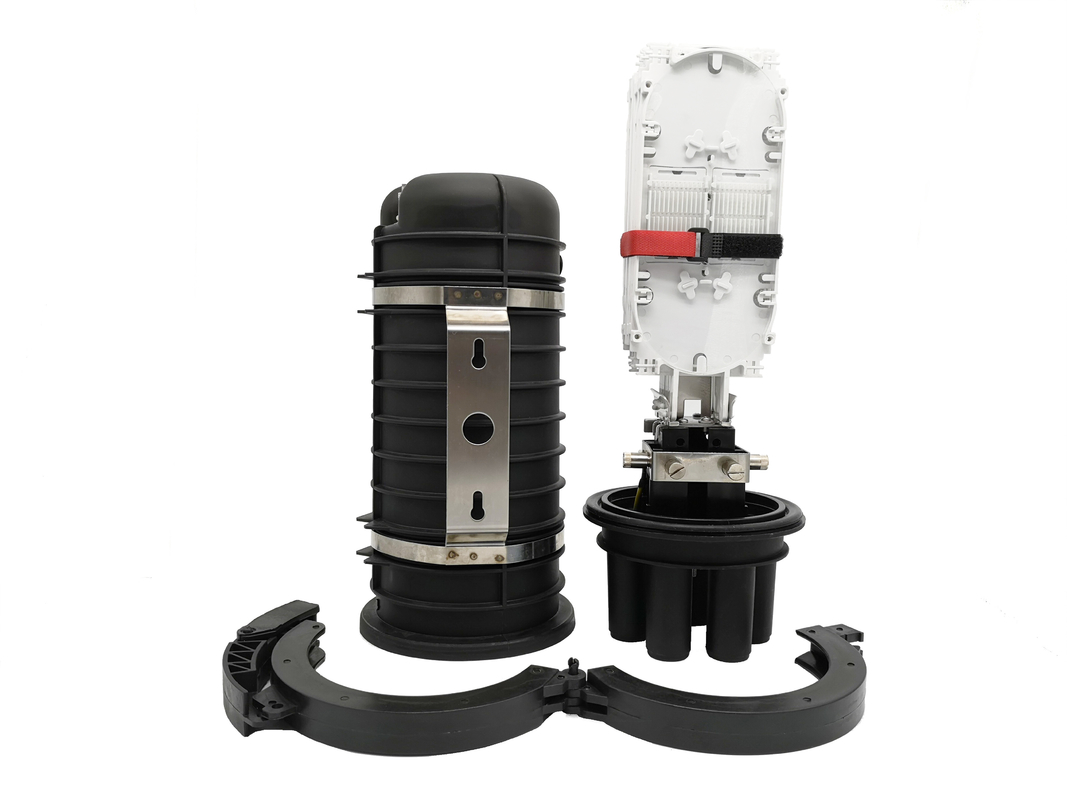

Outdoor Fiber Optic Splice Closure Joint Box 144 Cores 5 Ports PP Dome Heat Shrink Seal 4

------------------------------------------------------------------------------------------------------------------------------------------------------



96 Cores fiber optic junction box Application

  • Underground, Aerial, Vault, Pole Mounting and Wall Mounting



FOSC Order information:

FOSC400A4-XX-XX-X

FOSC400A4-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)-accessories(S=standard;O=optional,on customer request)
