Fiber Optic Splice Closure
Created with Pixso. FTTH Aerial Fiber Optic Junction Splice Box 72 144 Cores With Mini Splitter 1x16 1x8 SC Couplers

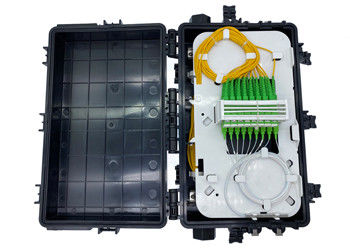

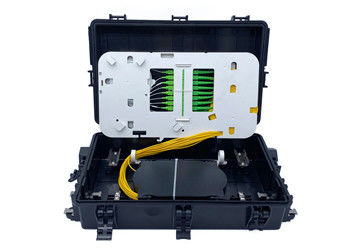

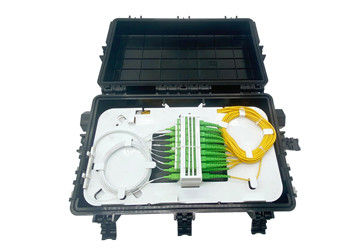

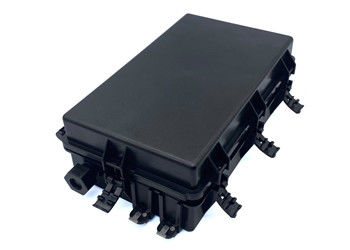

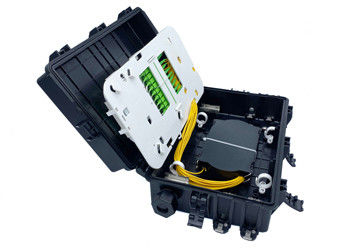

FTTH Aerial Fiber Optic Junction Splice Box 72 144 Cores With Mini Splitter 1x16 1x8 SC Couplers
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

FTTH Aerial Fiber Optic Junction Splice Box 72 144 Cores With Mini Splitter 1x16 1x8 SC Couplers

Brand Name: YINGDA
Model Number: GJS-2020
MOQ: 100 PCS
Price: Negotiable
Delivery Time: 5days after pay
Payment Terms: T/T or western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO, SGS
Application:
Ftth Aerial Splice Closure
Cable Port:
3 In 3 Out Splice Closure
Box Type:
Inline Closure
Max. Splitter:
1:8 1:16 Mini Splitter Module
Cable Diameter:
4round: 8-16mm; 16pcs: 2*3mm Drop Cable
Dimension:
340*220*110mm
Material:
ABS
Color:
Black
Material:
PP ABS
Max Capacity:
144cores
Max Adapter Qty:
16 Pcs SC Coupler
Packaging Details:
1pc / bag, 10pcs / carton box
Supply Ability:
50,000pcs per month
Highlight:

Single Fiber Optic Junction Box

,

FTTH Fiber Optic Junction Box

,

FTTH outdoor fiber splice enclosure

Product Description

FTTH Aerial Fiber Optic Junction Splice Box 72 144 Cores With Mini Splitter 1x16 1x8 SC Couplers



GJS-2020 optical distribution box is high density 3in 3out fiber box solution. It not only have the butt-joint and branching function, but also have the function of optical cable splitting and wiring, suitable for the installation of main optical cables and drop cables with different diameters.

FTTH Aerial Fiber Optic Junction Splice Box 72 144 Cores With Mini Splitter 1x16 1x8 SC Couplers 0FTTH Aerial Fiber Optic Junction Splice Box 72 144 Cores With Mini Splitter 1x16 1x8 SC Couplers 1FTTH Aerial Fiber Optic Junction Splice Box 72 144 Cores With Mini Splitter 1x16 1x8 SC Couplers 2FTTH Aerial Fiber Optic Junction Splice Box 72 144 Cores With Mini Splitter 1x16 1x8 SC Couplers 3







Fiber Optic Splice Closure 72 Cores Features

  • The closure adopts horizontal mechanical sealing and advanced internal structure design.
  • It can be installed two 1:8 or one 1:16 PLC splitter.
  • 16 pcs 2*3mm drop cable both ends in and out.
  • The closure is spacious enough for winding and storing fibers.
  • The patented sealing structure keep good sealing performance after re-entry and re-using.
  • Easy open and close of closure without special tool, bracket lock.
  • 24cores Fusing Splice tray, if use for fusion, max. load 6pcs tray to 144fibers, if use for splitter, max. hold 3pcs tray to 72cores;
  • The whole box is made of high impact engineering PC material, IP65 protection grade.



Fiber Optic Splice Closure  Application

  • Suitable for bunchy fibers
  • Aerial, wall-mounting
  • It’s especially applicable to FTTH optical fiber distribution



Fiber Optic Splice Closure  Standard accessories:

  • aerial mount kits, nylon tie, label mark, sleeve, buffer tube, alcohol tissue, screw and nuts, etc

FTTH Aerial Fiber Optic Junction Splice Box 72 144 Cores With Mini Splitter 1x16 1x8 SC Couplers 4FTTH Aerial Fiber Optic Junction Splice Box 72 144 Cores With Mini Splitter 1x16 1x8 SC Couplers 5FTTH Aerial Fiber Optic Junction Splice Box 72 144 Cores With Mini Splitter 1x16 1x8 SC Couplers 6
