Fiber Optic Splice Closure
Created with Pixso. 4 Ports Boltless Fiber Optic Splice Closure 96 Fibers IP68 Waterproof
4 Ports Boltless Fiber Optic Splice Closure 96 Fibers IP68 Waterproof
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

4 Ports Boltless Fiber Optic Splice Closure 96 Fibers IP68 Waterproof

Brand Name: YINGDA
Model Number: GJS-H020
MOQ: 100 PCS
Price: Negotiable
Delivery Time: 5days after pay
Payment Terms: T/T or western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Max Capacity:
Splice 96 Fibers (4trays,24 Fiber/tray)
Cable Ports:
4 Portsx23mm 2 In 2 Out
Material:
Strengthen Polymer Plastic
Size:
370*178*106(mm)
Sealing Method:
Mechanical Sealing With Thermoplastic Rubber
Weight:
2.1kg
Temperature:
-40℃~65℃

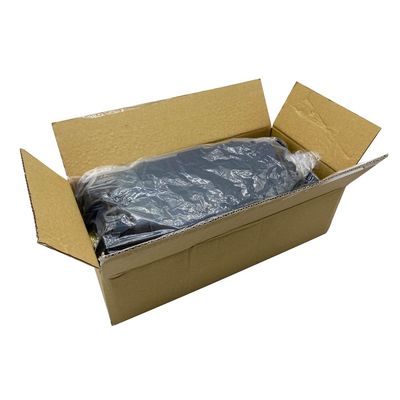

Packaging Details:
1pc / bag, 10pcs / carton box
Supply Ability:
50,000pcs per month
Highlight:

Boltless Fiber Optic Splice Closure Splice

,

IP68 Fiber Optic Splice Closure

,

IP68 fiber optic joint enclosure

Product Description
4 Ports Boltless Fiber Optic Splice Closure 96 Fibers IP68 Waterproof

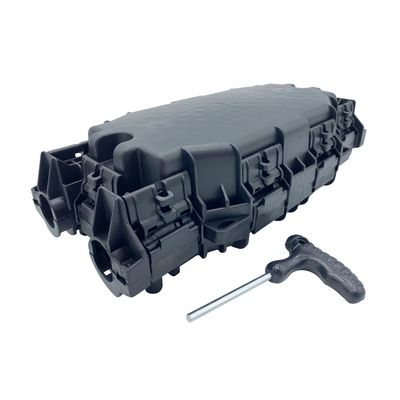

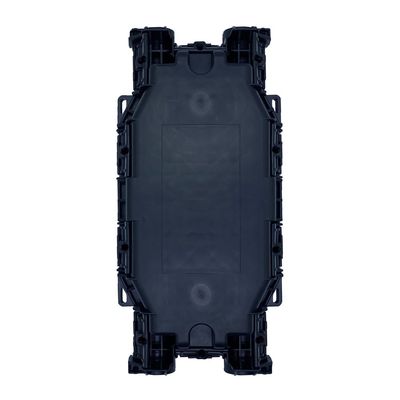

GJS-H020 Boltless Fiber Optic Splice Closure

Description

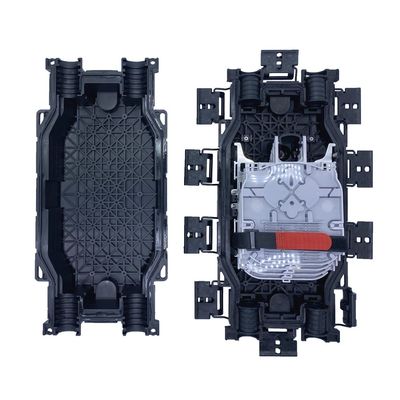

GJS-H020 fiber optic splice closure is able to hold up to96 splicing points, the fully rugged design enable it towork in the harshest environment, the boltless lockingsystem facilite the installation in a large scale, it is suitablefor aerial, direct buried, pipeline, wall mounted, manholeand handhole installation. 4 cable entrance supports 2cables entry from left and 2 cables entry from right side.

4 Ports Boltless Fiber Optic Splice Closure 96 Fibers IP68 Waterproof 0                          4 Ports Boltless Fiber Optic Splice Closure 96 Fibers IP68 Waterproof 1
Features
  1. Water-proof design with IP-68 Protection level.

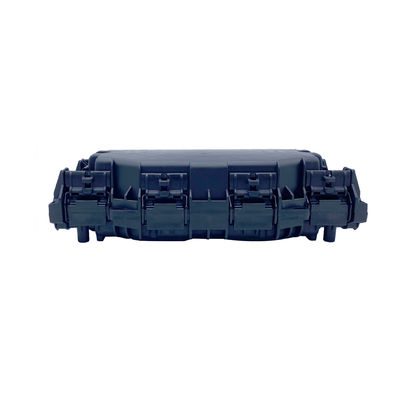

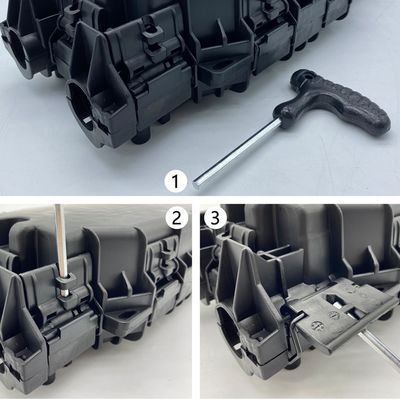

  2. Boltless design with no tools needed for open and close.
  3. Impact test:IK10,Pull Force:100N,Full rugged design.
  4. All stainless metal plate and anti-rusting bolts,nuts.

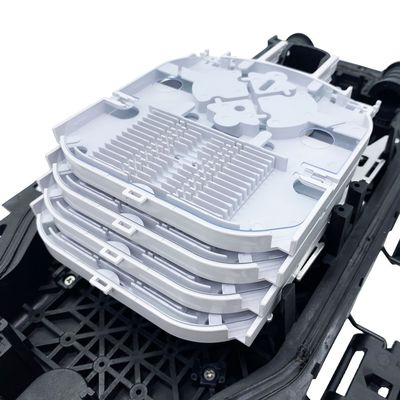

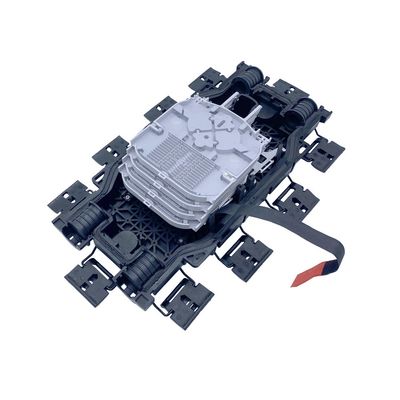

  5. Maximum splice capacity: 96 fibers(4 trays x 24F).
  6. Suitable for the fusion splice or mechanical splice.

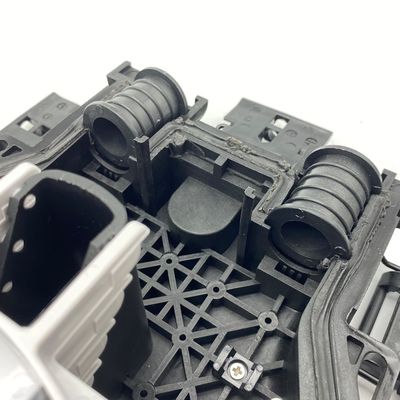

  7. Mechanical sealing with rubber protection tube.

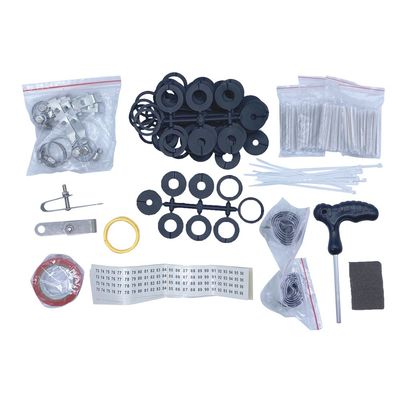

Standard Accessories

No.
 Description Qty
1
Housing(bottom plate)
 1 Pcs
2
Housing(top plate)
 1 Pcs
3
Splice Tray
 Max 4 Pcs
4
Rubber Seal
 4 Pcs
5
Fiber Protection Sleeves
 Max 144 Pcs
6
Nylon Tie
 8 Pcs
7
Insulation Tape
 1 Roll
8
Sealing Tape
 1 Roll
9
Aerial Installation Hook
 2 Pcs
10
Grounding Wire
 1 Pcs
11
Abrasive Cloth for Cable Polish
 1 Pcs
12
Labeling Paper
 1 Set
13
M6 Wrench for Open Closure
 1 Pcs
14
Hose Clamp for Cable Fixing 4 Pcs

15
Steady
 4 Pcs
16
Rings for Cabling Sealing
 8 Sets
