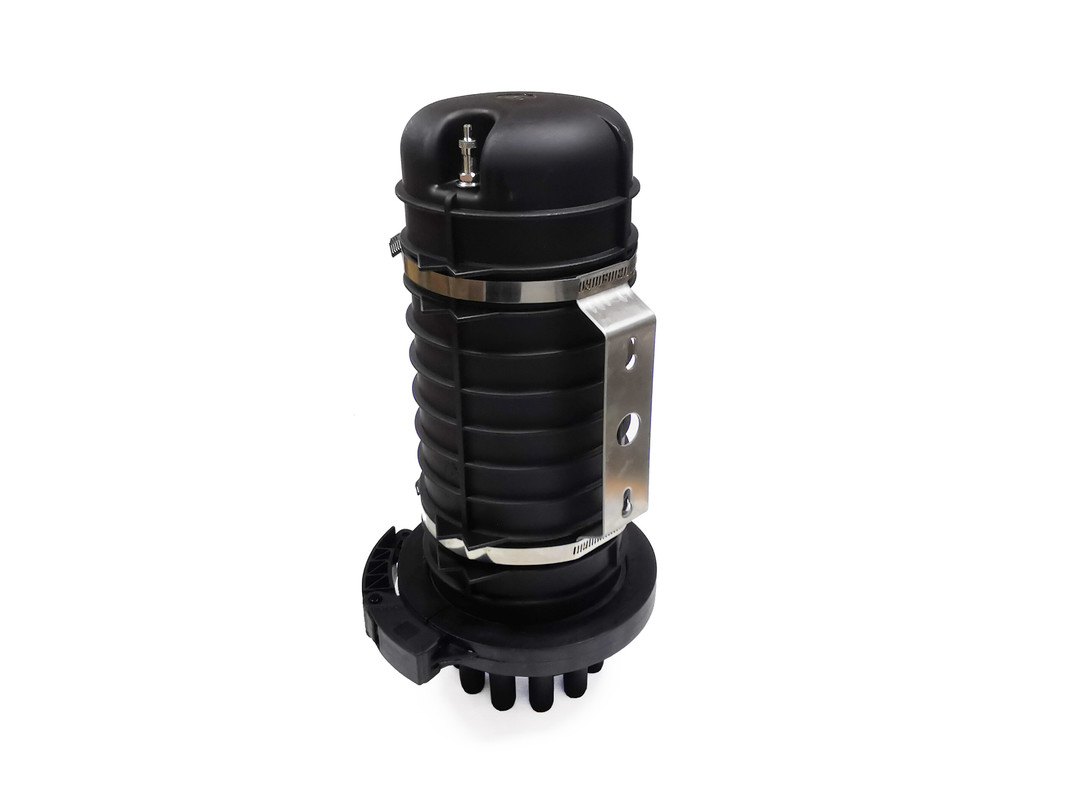

9 Ports 96 Cores Dome Fiber Optic Splice Closure PP IP68 Heat Shrink

  • 9 Ports 96 Cores Dome Fiber Optic Splice Closure PP IP68 Heat Shrink
  • 9 Ports 96 Cores Dome Fiber Optic Splice Closure PP IP68 Heat Shrink
Place of Origin china
Brand Name YINGDA
Certification ISO, SGS, CE
Model Number FOSC400A8
Minimum Order Quantity 100 PCS
Price Negotiable
Packaging Details 1pc / box, 4 pcs/ carton box
Delivery Time 5days after pay
Payment Terms T/T or western Union
Supply Ability 50,000pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Shape Dome Splice Closure Cable Port 1 Oval 8 Round Ports
Cable Diameter Φ11mm～Φ25 Mm Material PP Glass Fiber Body, ABS Splice Tray
Splice Tray Qty Max. 4 Pcs 24 Fiber Splice Tray Closure Dimension 421*185 Mm
Waterproof Class IP68
High Light

dome fiber optic splice closure IP68

,

PP dome fiber optic splice closure

,

Heat Shrink dome splice closure
Leave a Message
Product Description

PP IP68 Heat Shrink Dome Fiber Optic Splice Enclosure 9 Ports 96 Cores Arial Pole Wall Mount



FOSC400A8 fiber optic splice closures are specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 24 fibers single core; Available for 4 trays to splice total 96 fibers. Adopt modified PP  glass fiber material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.



Dome Fiber Optic Enclosure Specification

Model

Tray

qty

 Tray capacity /fibers Total capacity /fibers Dimension /mm Entry port dia. Raw material
FOSC400 A8 4 24 96 412*185

4 round ports available for cable dia.<11mm;

1 oval port available for 2pcs dia. ≤ 25mm

Modified PP +GF;

tray:ABS



96 Cores Fiber Optic Splice Closure Features

  • May be used for cut, uncut and taut sheath applications.
  • May be used for all fiber optic cable.
  • Sheath retention & central strength member termination system included.
  • Ribbed closure construction-lightweight plastic offers strength and resistance
  • to chemical and U.V attack

9 Ports 96 Cores Dome Fiber Optic Splice Closure PP IP68 Heat Shrink 0

9 Ports 96 Cores Dome Fiber Optic Splice Closure PP IP68 Heat Shrink 1

FOSC400A8 splice enclosure is heat shrink seal, IP68 waterproof outdoor use, total 1 oval port and 8 round ports, cable diameter is oval port:25mm, round port:11mm.  Cable ports can be 4 round ports = FOSC400A4. The same body and size, only change the dome.

9 Ports 96 Cores Dome Fiber Optic Splice Closure PP IP68 Heat Shrink 2



96 Cores Optical Fiber Closure Standard accessories

Dome, Base, clamp, O-ring, metal storage basket, Splice Tray, Heat shrink protective sleeve, buffer tube, Cable ties,Grounding wire, Labeling paper, Installation Manual



1 set of Oval port closing kits:

Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper (2.5 x30mm)+ branching clip etc



8 sets of Round port closing kits:

Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm), etc



Optional accessories

Hanging hook, Wall mounting (Duct mounting) kits, Pole Mounting kit, Grounding device, Air valve



9 Ports 96 Cores Dome Fiber Optic Splice Closure PP IP68 Heat Shrink 3

9 Ports 96 Cores Dome Fiber Optic Splice Closure PP IP68 Heat Shrink 4

  • Wide application like Underground, Aerial mount, Vault, Pole Mount,Wall Mount, etc ,will configurate as customer request.

FOSC Fiber enclosure Order Information:

FOSC400A8-XX-XX-X

FOSC400A8-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)-accessories(S=standard;O=optional,on customer request)
