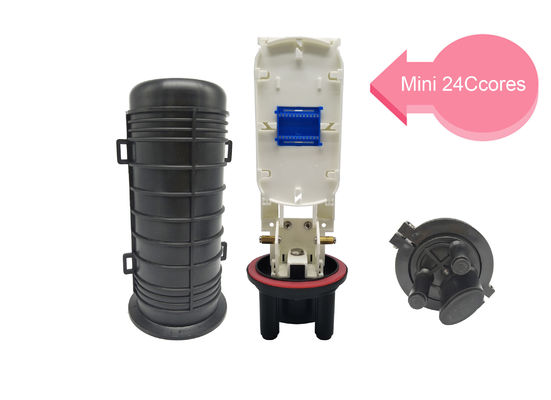

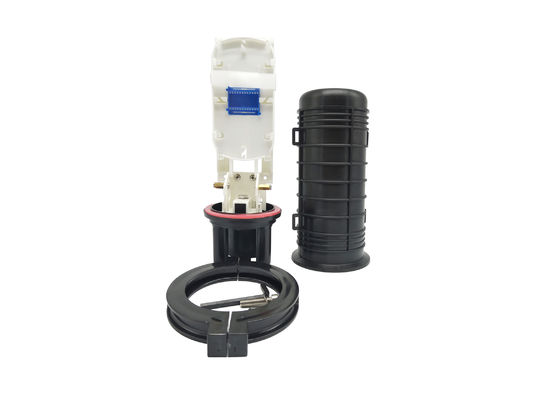

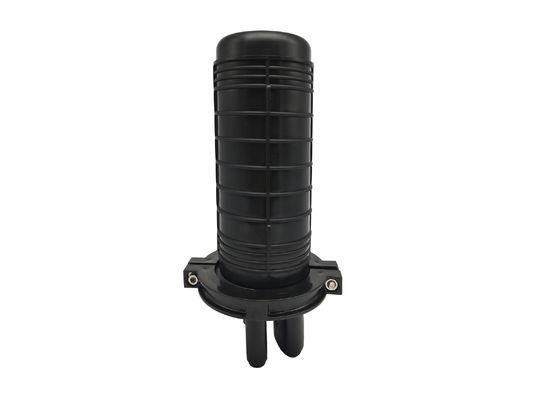

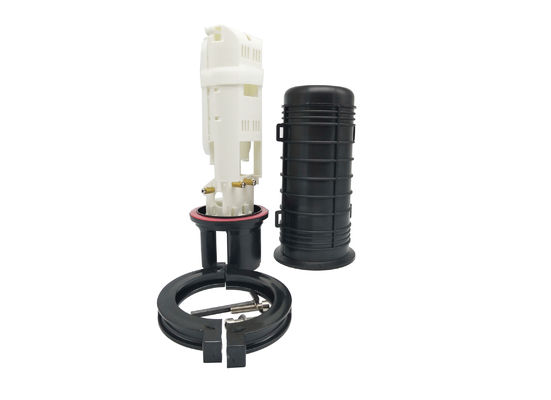

12 Cores FTTH Fiber Optic Splice Closure Dome SC Adapter PP Pole Mount Enclosure
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PP | Cable Port | 1oval 2 Round Ports |
|---|---|---|---|
| Fusion Capacity | 12cores Single Optical Fiber Cable | Dimension | 330*100mm |
| Cable Diameter | Oval Port 30mm, Round Port 21mm | Adapter Quantity | 4pcs SC Coupler Simplex With Flange |
| High Light | FTTH Fiber Optic Splice Closure,12 Cores Fiber Optic Splice Closure,Pole Mount Fiber Optic Splice Closure |
||
Product Description
12 Cores FTTH Fiber Optic Splice Closure Dome SC Adapter PP Pole Mount Enclosure
GJS-206M is a type of FOSC conform the standard and relative regulations of communications industry of The People's Republic of China: YD/T814-2004
Features
1.1 The closure can be used in duct, buried, overhead..etc
1.2 High quality impact material PP and internal is ABS
1.3 Designed for ftth with adapter if need.
1.4 Fiber storage with big basket
1.5 Modular fiber management system
1.6 Cable diameter range: 8~23
1.7 Sealing way of cables:heatshink seal cable port+mechanicl shell.
1.8 Quality warranty:2 years
1.9 Life span:more than 25 years
1.10 IP rating is IP68
2 specification
①.Environment
Temperature: -30℃- +60℃
Atmospheric Pressure:70-106Kpa
②.Life Span:More than 25 years.
③.Material:Higt strength polypropylene(PP),
Technical Specification
| MODEL | Cable Ports | Max trays | Cores of 1 tray |
Cable dia.(mm) round |
Cable dia.(mm) oval |
D*H (mm) | Weight |
| GJS-206M | 3/6 | 2 | 12/24 | 8-16 | 35~65 | Ø100* 320 | 1.1kg |
Product Detail
FTTH FO Clousre is small size, but with large quantity to 24cores, and it is made of high quality PP material, brand new material, it is widely used in fiber to the home outdoor network, such as streets, communicity zone.
The closure is locked by bolts with plastic clamps*2pcs by hand, and with allen screw to open and close.
The feeder cable go in and out wil be fixed by the metal kits on the tray holder, it will make all cable management in order, no in mess.
And the high quality rubber seal ring around the dome will ensure good performance of waterproof till IP68.
There are 1pc of splice trays with 12slots for single optical fiber cable fusion and install the heat shrink protection tubes inside. If customer need 2splice trays, there will be a velcro tape to make them together. Back of the tray is the fiber optic cable storage plate, it is deep and large space.
Each tray will have a transparent cover to protect the bare fiber from broken.
The cable storage plate is the same size as the splice tray, but deeper and there are 4pcs SC adapter slots, then it can meet FTTH application, and bring the fiber optic cable to end customers, and drop cable with fast connectors are available.
Yingda will prepare all nesseccary mounting kits for customers efore delivery, and will put all in a plastic bag together with the splice clousre in the inner box.
Yingda can offer all size, full range of fiber optic splice closures, no matter inline clousre or dome clousre, the capacity can be 12core splice clousre, 24core splice clousre, 48cores splice clousre, 72core splice clousre, 96cores splice clousre, 144cores splice clousre, 288cores splice clousre, 576cores splice clousre, or even more.
Welcome inquiry to sales@yingdapc.com
or reach us at +86 18688982406.
