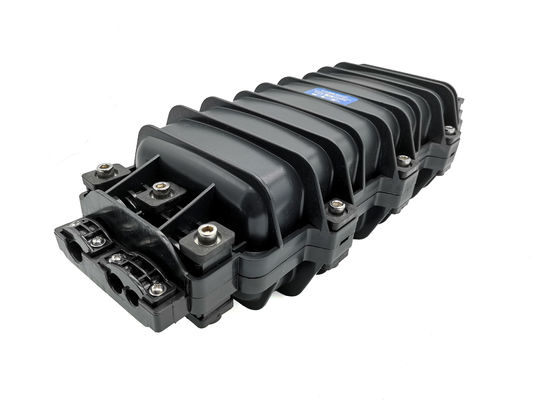

96Cores 3In 3Out Inline horizontal Fiber Optic Joint Closure Manhole Underground
This clousre is large capacity and made of high quality ABS material, and can be used in many applications like: aerial, underground, man hole, wall mount, pipeline, duct, handhole, etc.The ambient temperature ranges from -40℃ to +65℃.
Fiber Optic Closure Features
FOSC Technical Specification
| Model | GJS-H009 |
| Outside dimension (LxWxH) | 470*180*125 (mm) |
| Weight (excluding outside box) | 2.97kg |
| Number of inlet/outlet ports | 3in 3out |
| Diameter of fiber cable | Φ8—Φ20 (mm) |
| Capacity of FOSC | Bunchy: 12—96 (Cores) |
| Color | Black |
Splice Closure Main components
| No. | Name of components | Quantity | Usage | Remarks | |
| 1 | Housing | 1 set | Protecting fiber cable splices in whole | Internal diameter: | |
| 2 | Fiber optic splice tray | max. 6 pcs (bunchy) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: | |
| 3 | Foundation | 1 set | Fixing reinforced core of fiber- cable and FOST | ||
| 4 | Seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | ||
| 5 | Port plug | 6 pieces | Sealing empty ports | ||
| 6 | Pressure | 1 set | After injecting air, it is used for pressure testing and sealing testing | Configuration as per requirement | |
| 7 | Earthing deriving device | 1 set | Deriving metallic components of fiber cable in FOSC for earthing connection | Configuration as per requirement | |
96 Cores Splice Clousre Main accessories and special tools
| No. | Name of accessories | Quantity | Usage | Remarks |
| 1 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
| 2 | Hanging hook | 1 set | For aerial use | |
| 3 | Earthing wire | 1 piece | Putting through between earthing devices | |
| 4 | Abrasive cloth | 1 piece | Scratching fiber cable | |
| 5 | Labeling paper | 1 piece | Labeling fiber | |
| 6 | Special wrench | 3 pieces | Fixing bolts, tightening nut of reinforced core | |
| 7 | Measuring paper | 1 piece | To measure circle, of which its diameter is enlarged with seal tape | |
| 8 | Desiccant | 1 bag | Put into FOSC before sealing for desiccating air. | |
| 9 | Buffer tube | to be decided by customers | Hitched to fibers and fixed with FOST, managing buffer | Configuration as per requirement |
| 10 | Heat shrinkable protective sleeve | Protecting fiber splices | Configuration as per capacity | |
| 11 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 12 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
3in 3out Inline Closure Prodct Details
Individual inner carton box with good protection for long term transportation, all accessories inlcuded in the box except english instruction manual.
This inline clousre can maximum hold 4pcs splice trays, it is white color, ABS material, with velcro tape to fix them tightly inside, not move.
Each fiber optic splice tray is 12 cores single optical fiber cable, and with tray cover at top.The trays are overlap with each other, the bottom tray will fix on the base with 2pcs screws in the middle of the trays.
Splice closure is open and close by 12xpieces stainless steel blots, there is special wrench equipped inside of the box at factory.The grounding device and air valve is equippped on request, if not request, not included. Like the picture above, it is not with air valve.The product information label on the top side of the splice enclosure can be provided on request, customize is available, such as: brand name, product name, product model no., quantity, made in china, manufacturer time, etc.
