Fiber Optic Splice Closure
Created with Pixso. 24 48 96 144 Core PP Dome WallMount Outdoor Fiber Optic Splice Enclosure Jounction Box

24 48 96 144 Core PP Dome WallMount Outdoor Fiber Optic Splice Enclosure Jounction Box

Brand Name: YINGDA
Model Number: FOSC400B4 GJS-03A
MOQ: 100 PCS
Price: Negotiable
Delivery Time: 5days after pay
Payment Terms: T/T or western Union
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Shape:
Dome Heat Shrink Closure
Max Capacity:
96 Fibers
Cable Port:
1 Oval + 4 Round Port
Cable Diameter:
Φ10mm~Φ25 Mm
Material:
PP Body + ABS Tray
Splice Tray Qty:
Max. 4 Pcs
Closure Dimension:
540x180 Mm
Weight:
3.5 Kgs
Carton Qty:
6 Pcs
Carton Size:
60*49.5*61mm
Sealing Method:
Heat Srhinkable Tube
Waterproof Class:
IP68
Packaging Details:
1pc / box, 6 pcs/ carton box
Supply Ability:
50,000pcs per month
Highlight:

fiber optic joint closure

,

outdoor splice box

Product Description

24 48 96 144 Core PP Dome WallMount Outdoor Fiber Optic Splice Enclosure Jounction Box Black





FOSC400B4 fiber optic splice closures are specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 24 fibers; Available for 6 trays to splice total 144fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.



Optical fiber splicing closure can have 2types of splice trays:



                                          Type A                                                                    Type B

24 48 96 144 Core PP Dome WallMount Outdoor Fiber Optic Splice Enclosure Jounction Box 0    24 48 96 144 Core PP Dome WallMount Outdoor Fiber Optic Splice Enclosure Jounction Box 1



144 Cores fiber optic splice  closure Features

  • May be used for cut, uncut and taut sheath applications.
  • May be used for all fiber optic cable.
  • Sheath retention & central strength member termination system included.
  • Ribbed closure construction-lightweight plastic offers strength and resistance
  • to chemical and U.V attack
  • Installation and reentry with a minimum of tools
  • All hardware are captivated



96 Cores fiber optic junction box Application

  • Underground, Aerial, Vault, Pole Mounting and Wall Mounting



Specification

Model FOSC400B4  ( GJS-03A )
Max capacity 144 cores
Dimension 522*185mm
Tray quantity 6pcs
Tray capacity 24cores single fiber
Cable ports 1oval+4round ports
Cable diameter

4round ports available for cable dia. < 11.5mm;

1 oval port available for two pcs dia.≤ 20mm

Material

Dome & base :Modified P.P +GF

Tray: ABS

Sealing method Heat shrink seal
Waterproof grade IP68

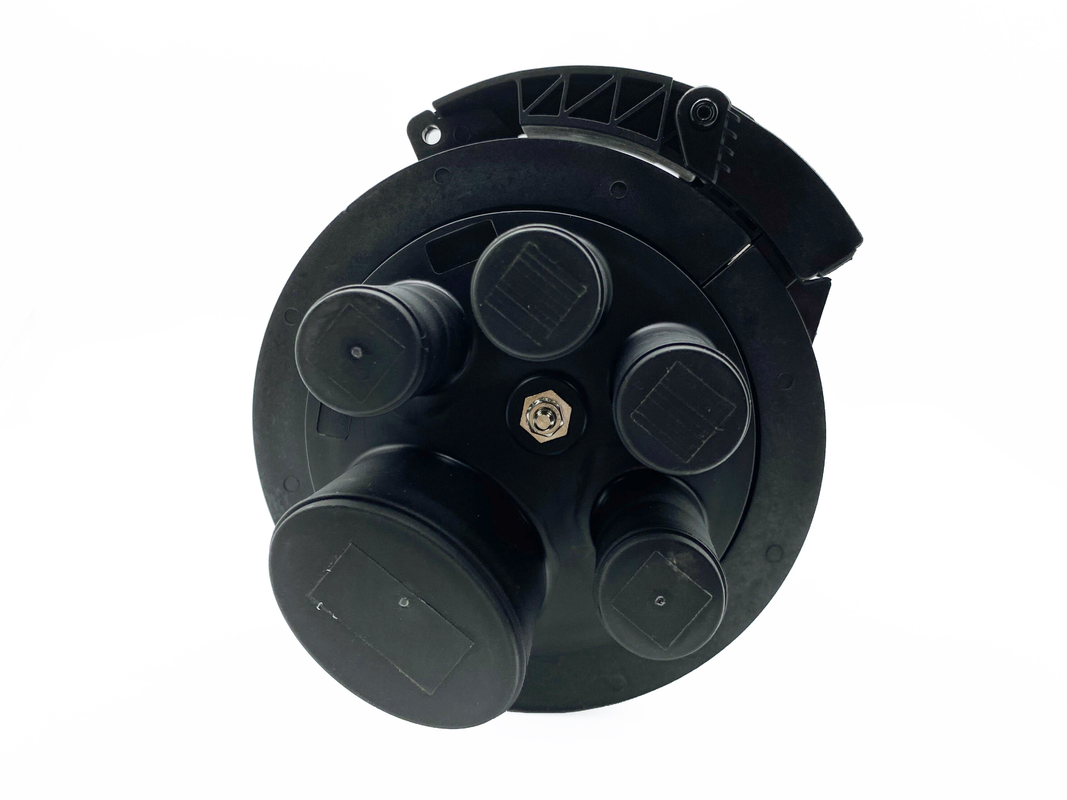

24 48 96 144 Core PP Dome WallMount Outdoor Fiber Optic Splice Enclosure Jounction Box 2

---------------------------------------------------------------------------------------------------------------------------------------------------

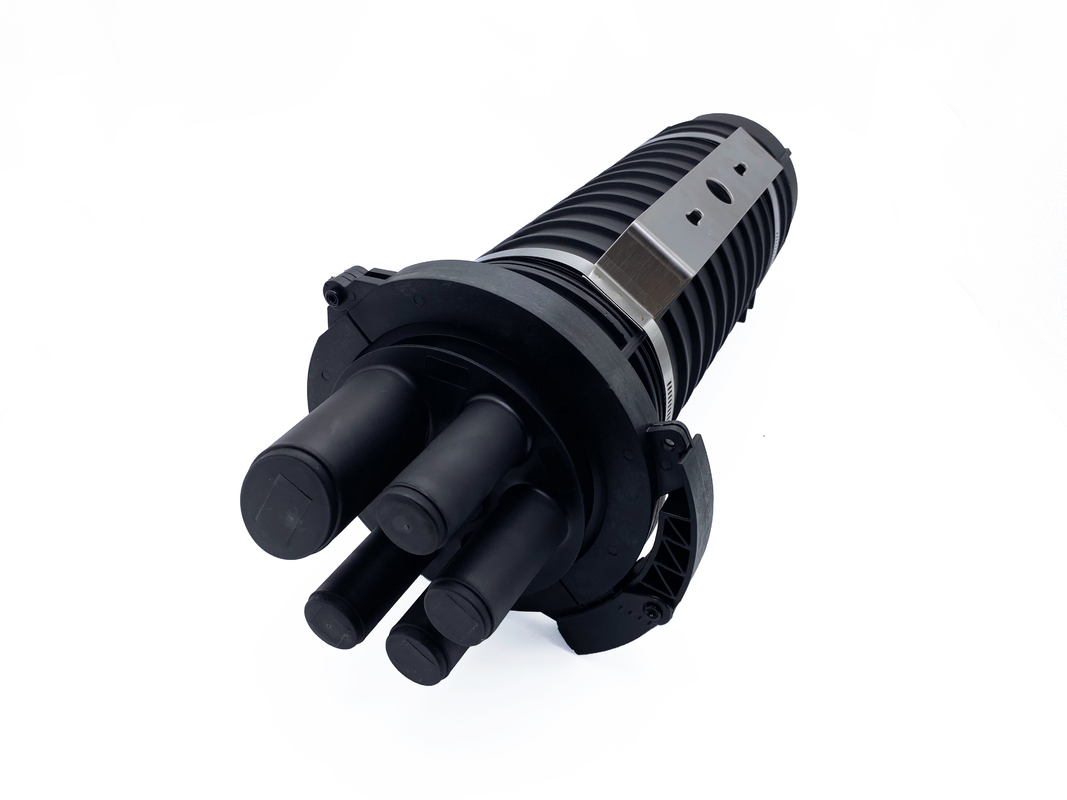

24 48 96 144 Core PP Dome WallMount Outdoor Fiber Optic Splice Enclosure Jounction Box 3

---------------------------------------------------------------------------------------------------------------------------------------------------

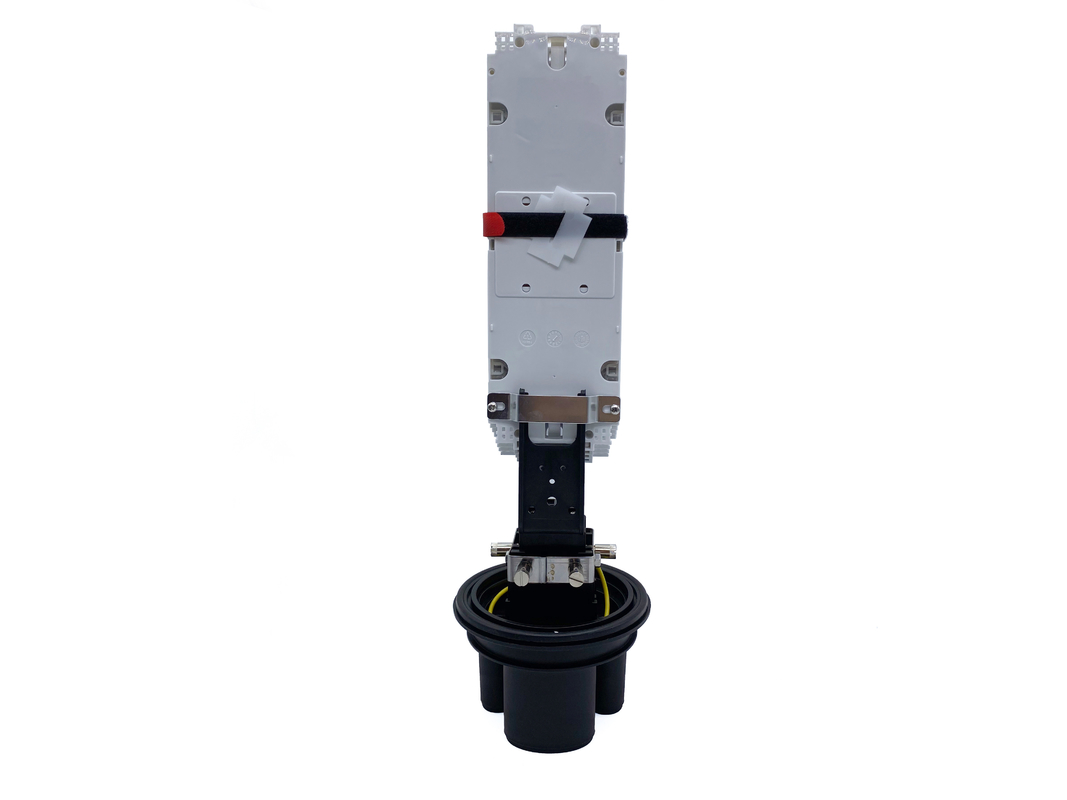

24 48 96 144 Core PP Dome WallMount Outdoor Fiber Optic Splice Enclosure Jounction Box 4

---------------------------------------------------------------------------------------------------------------------------------------------------

Standard accessories

Dome, Base, clamp, O-ring, metal storage basket, Splice Tray, Heat shrink protective sleeve, buffer tube, Cable ties,Grounding wire, Labeling paper, Installation Manual



1 set of Oval port closing kits:

Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper (2.5 x30mm)+ branching clip etc



4 sets of Round port closing kits:

Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm), etc



Optional accessories

Hanging hook, Wall mounting (Duct mounting) kits, Pole Mounting kit, Grounding device, Air valve

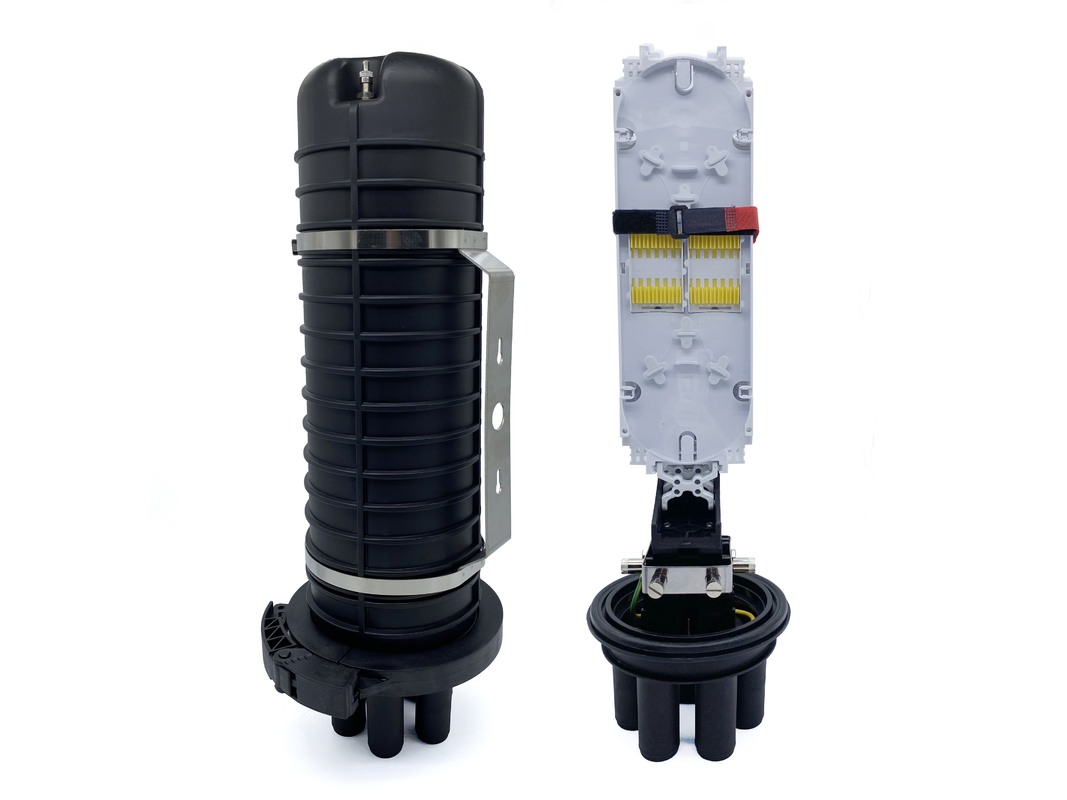

24 48 96 144 Core PP Dome WallMount Outdoor Fiber Optic Splice Enclosure Jounction Box 5

------------------------------------------------------------------------------------------------------------------------------------------------------

Order information:

FOSC400B4-XX-XX-X

FOSC400B4-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)-accessories(S=standard;O=optional,on customer request)
