Outdoor IP68 96 144 Cores Fiber Optic Splice Closure Dome Mechanical PP Uncut Ports Enclosure

Outdoor IP68 96 144 Cores Fiber Optic Splice Closure Dome Mechanical PP Uncut Ports Enclosure

  • High Light

    fiber optic splice enclosure

    ,

    fiber optic joint closure

  • Material
    PP Fiber Enclosure
  • Tray Material
    ABS Splice Tray
  • Capacity
    144 Cores Single Fiber
  • Tray Capacity
    24 Cores
  • Cable Port
    1uncut Port, 4 Round Ports
  • Cable Diameter
    38mm
  • Appliction
    Outdoor Wall Pole Aerial Duct Manhole Mount
  • Shape
    Dome Fiber Splice Case
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    GJS-D022 splice closure
  • Minimum Order Quantity
    500PCS
  • Price
    negotiable
  • Packaging Details
    1pc per box, 6pc per carton
  • Delivery Time
    7days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100000pcs per month

Outdoor IP68 96 144 Cores Fiber Optic Splice Closure Dome Mechanical PP Uncut Ports Enclosure

Outdoor IP68 96 144 Cores Fiber Optic Splice Closure Dome Mechanical PP Uncut Ports Enclosure

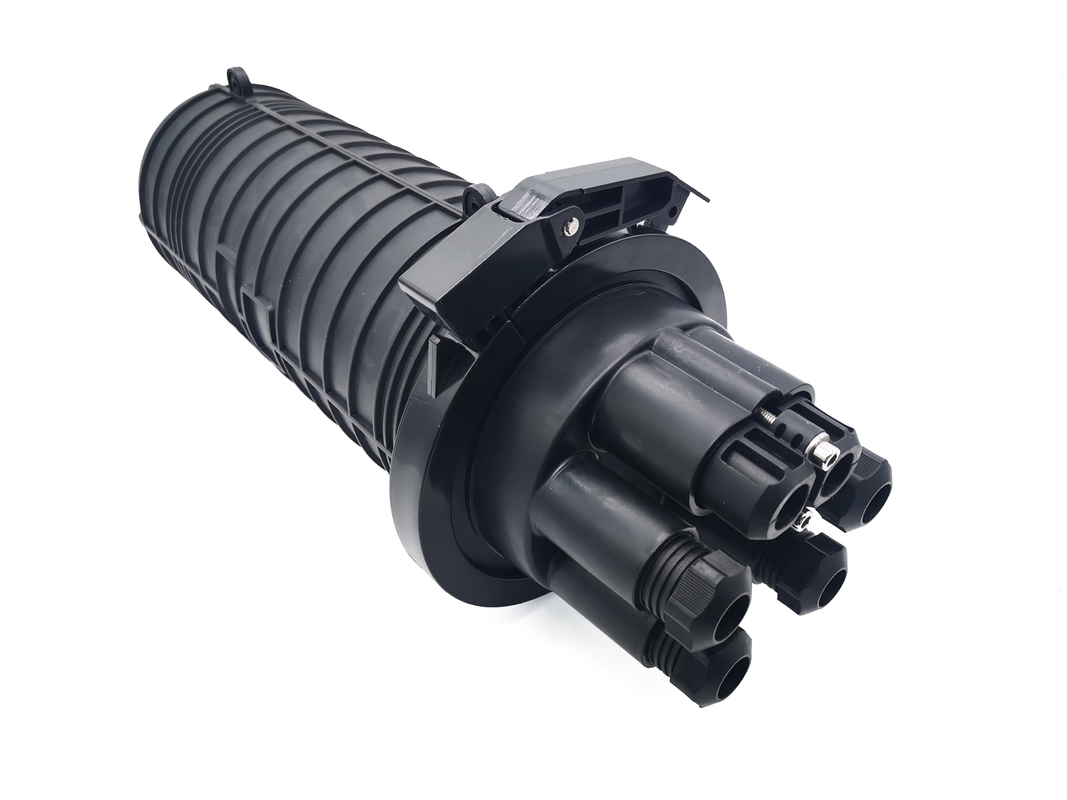

GJS-D033 Fiber Optic Splice Closure (FOSC) is a member in dome series of optical fiber cable splice closure. The cables and the closure are sealed in a mechanical way with the help of compacting pressure from the plastic screws (nuts) and the circular plastic hoop. This model is suitable for different methods of branch connection, including branching and splicing of uncut cables.

Feature

  • For aerial,buried,wall and pipe wall people use wells
  • Ring using a special material that can be repeatedly opened,re-use
  • Splice tray easy to use page design
  • Quick way to make use of open sealed maintenance easier
  • Valve and grounding devices can be installed
  • Advanced internal structure design
  • Easy to re-enter, it never requires re-entry tool it
  • Pass through cable entry

Outdoor IP68 96 144 Cores Fiber Optic Splice Closure Dome Mechanical PP Uncut Ports Enclosure 0
Specification

ModelGJS-D033
Dimension450*φ230mm
Max capacity144cores single fiber
Splice tray capacity24cores
Number of splice tray6pcs
Sealing typeMechanical
Suitable cable diameterPinholeφ5-7mm, express cable φ10-17mm
Cable entry & exit1oval+4round (1express cable&4drop)
MaterialBody:PP+GF, tray:ABS
Net weight4.2-4.8kg

----------------------------------------------------------------------------------------------------------------------------------------------------
Outdoor IP68 96 144 Cores Fiber Optic Splice Closure Dome Mechanical PP Uncut Ports Enclosure 1
This optical fiber splicing box meet IP68 watperoof grade with waterproof rubber ring internal and self-lock hoop to tighten it. Customer can print logo on th body of the cover and paste labels with customer information on the top cover.
-------------------------------------------------------------------------------------------------------------------------------------------------Outdoor IP68 96 144 Cores Fiber Optic Splice Closure Dome Mechanical PP Uncut Ports Enclosure 2
GJS-D033 fiber enclosure dome is 1 uncut port which allow the cable go in and out without cutting off the cable, easy to operate on field.
And it is large size for cable from 10-17mm; the four round ports is for multi-fibers came out. and good sealing performance.
-------------------------------------------------------------------------------------------------------------------------------------------------
Outdoor IP68 96 144 Cores Fiber Optic Splice Closure Dome Mechanical PP Uncut Ports Enclosure 3

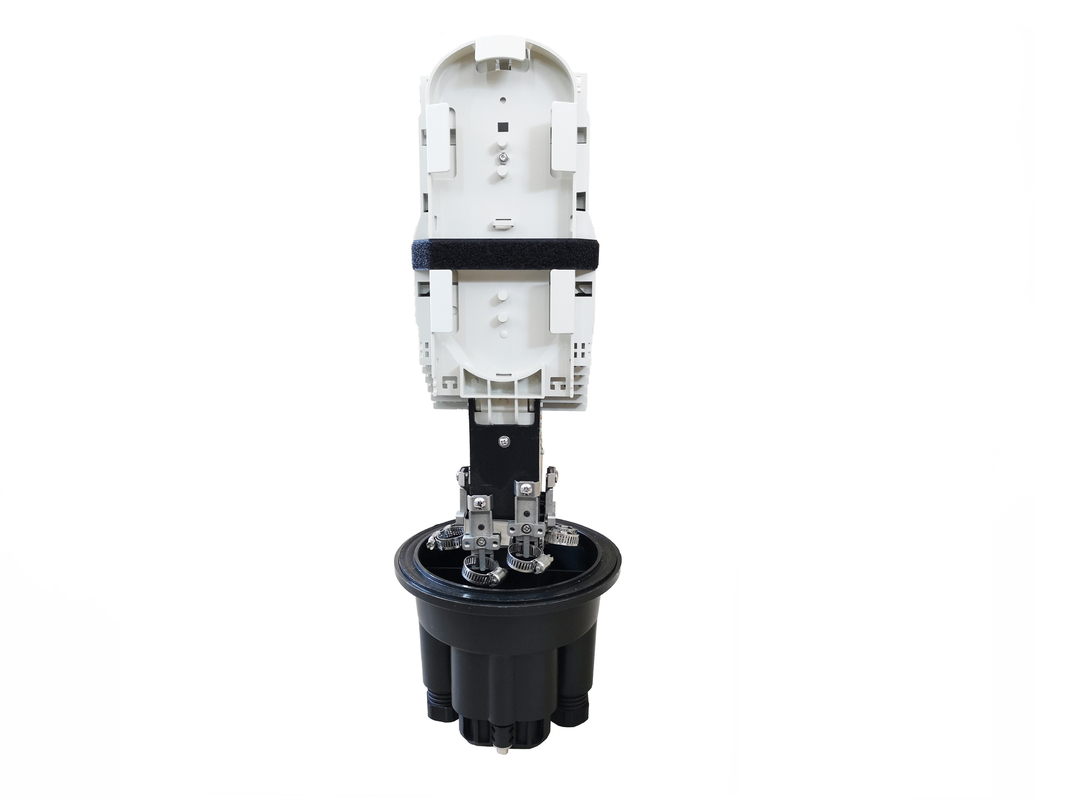

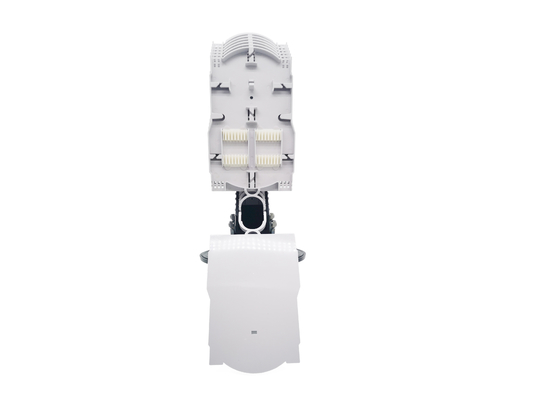

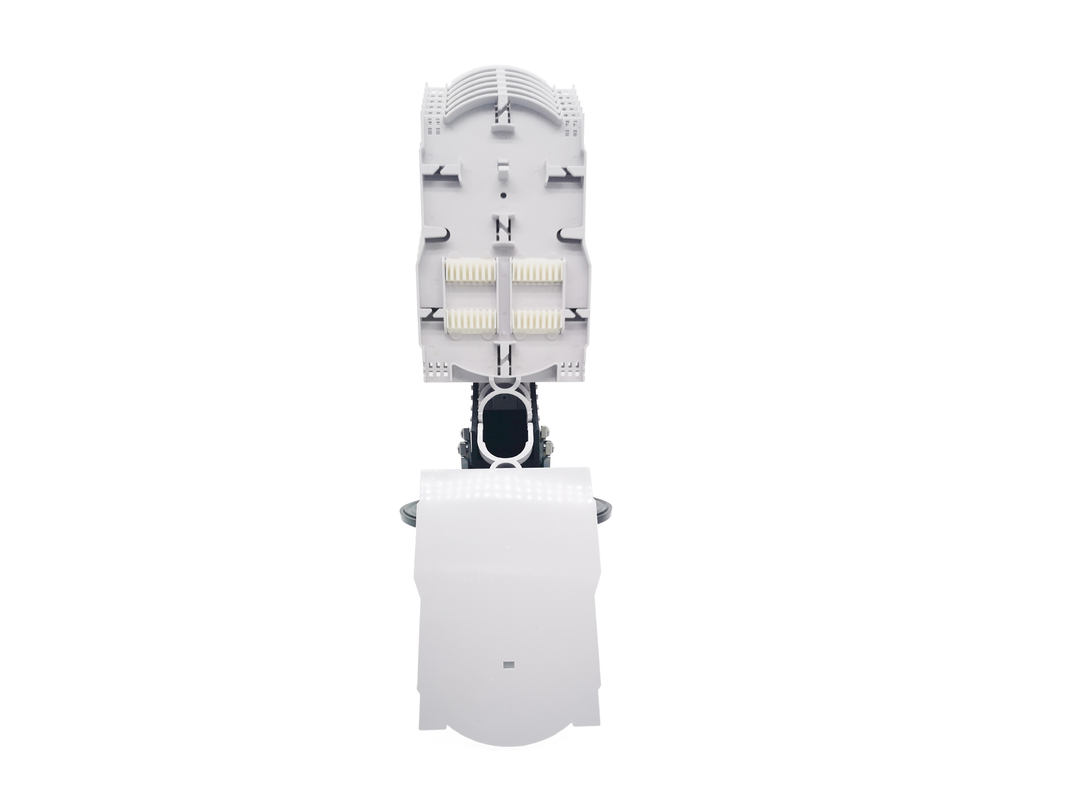

Splice Trays: GJS-D033 dome mechanical splice closure can maximum hold 6pcs splice tray and 1 fiber storage plate at back, maximum capacity 144cores bunchy fiber. If used in FTTH network, can put steel tube splitters inside the trays for fiber splitting or distribute.


ModelCapacitySize(L×W×H)mm
FOST003BunchySingle:24fibers120×196×10
RibbonNormal:6pcs, max. 12pcsRibbonNormal:6pcs, max. 12pcs


-------------------------------------------------------------------------------------------------------------------------------------------------
Outdoor IP68 96 144 Cores Fiber Optic Splice Closure Dome Mechanical PP Uncut Ports Enclosure 4

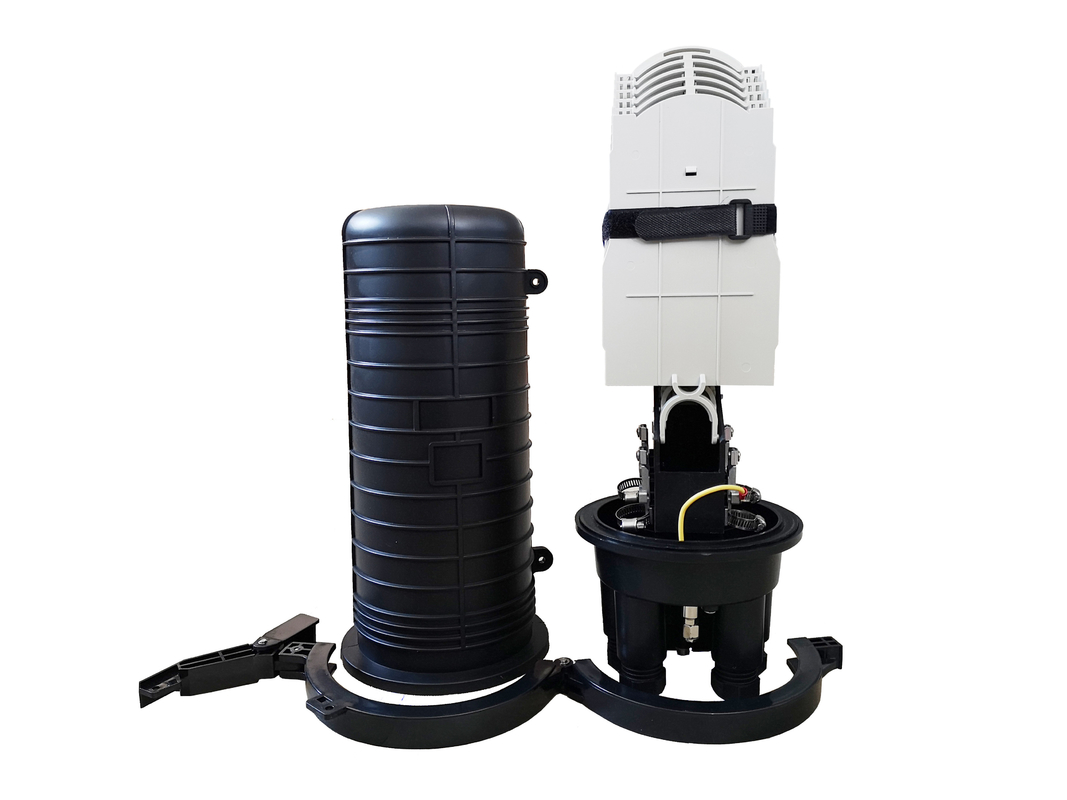

Before delivery, will configurate full list of accessories with the box itself, save cost and time for customers. Details like below:

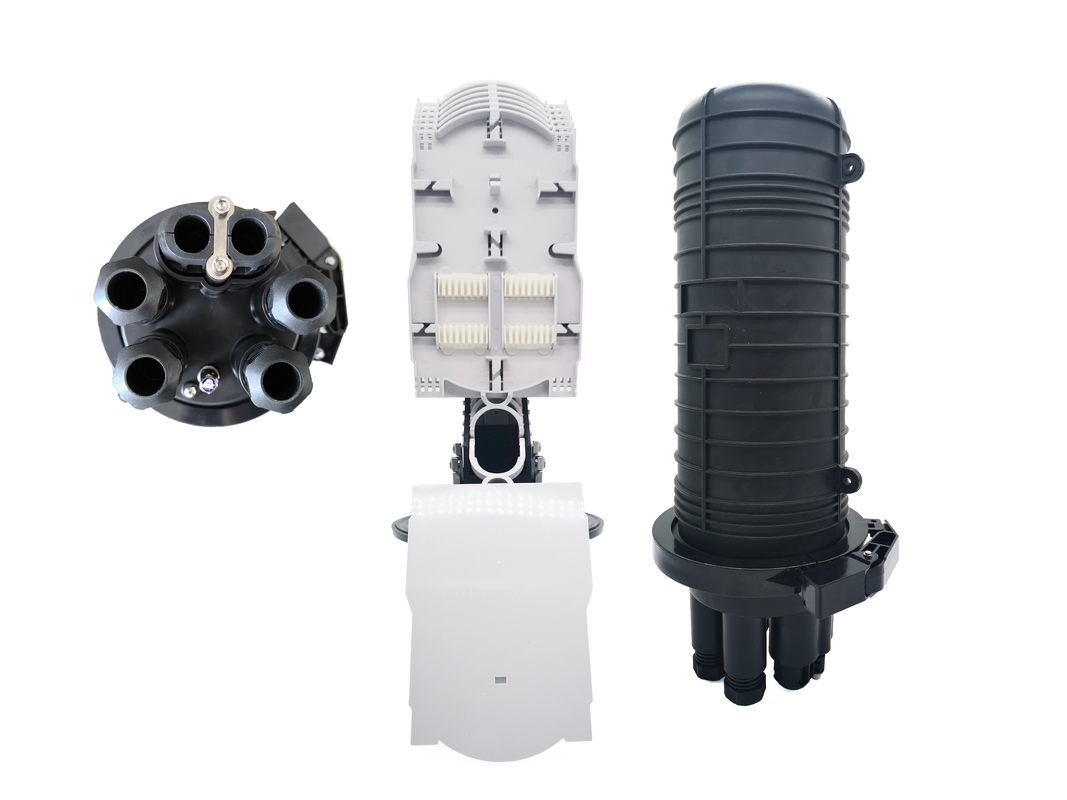

Main Component
No.Name of componentsQuantityUsageRemarks
1FOSC(cover)1 setProtecting fiber cable splices in wholeInternal diameter:355*150(mm)
2

Fiber optic

splice tray(FOST)

Max 4 trays (bunchy)

Fixing heat shrinkable protective
sleeve and holding fibers

Suitable for:
Bunchy:24(cores)
3Fiber holding tray1 pcs

Holding fibers with protective
coat


4Base1 setFixing internal and external structure
5Plastic hoop1 setFixing between FOSC cover and base
6Seal fitting1 setSealing between FOSC cover and FOSC bottom




Main accessories and special tools
7Heat shrinkable fixing sleeve(single) and Branching clip1 setFixing and sealing single fiber cableConfiguration as per requirement
8Heat shrinkable protective sleeve Protecting fiber splicesConfiguration as per capacity
9Nylon tie Fixing fiber with protective coatConfiguration as per capacity
10Earthing wire1 piecePutting through between earthing device
11Abrasive cloth1 pieceScratching fiber calbes
12Labeling paper1 pieceLabeling fiber
13Metal hoop1 setFor wall mounting and pole hugging
14Heat shrinkable fixing sleeve(mass) Fixing and sealing mass of fiber cableConfiguration as per requirement


Application

  • Aerial,underground,pipeline,handhole.
  • The ambient temperature ranges from -40 to 65℃.
