Brand Name: | yingda |
Model Number: | GJS-D033 |
MOQ: | 500PCS |
Price: | negotiable |
Delivery Time: | 7days |
Payment Terms: | T/T, Western Union |
FTTH Optical Splitter 1x16 1x8 1x4 Distribution Splice Closure 96 Cores 32 SC Coupler Outdoor Pole
GJS-D033 Fiber Optic Splice Closure (FOSC) is a member in dome series of optical fiber cable splice closure. The cables and the closure are sealed in a mechanical way with the help of compacting pressure from the plastic screws (nuts) and the circular plastic hoop. This model is suitable for different methods of branch connection, including branching and splicing of uncut cables, splitting and distribution.
1x16 Optical Splitter Closure Feature
1x8 Fiber Optic Joint Box Specification
Model | GJS-D033 |
Dimension | 450*φ230mm |
Max capacity | 144cores single fiber |
Splice tray capacity | 24cores |
Number of splice tray | 6pcs |
Adapter qty | 32pc SC coupler |
Mini Splitter | 1x2 1x4 1x8 1x16 1x32 steel tube |
Sealing type | Mechanical |
Suitable cable diameter | Pinholeφ5-7mm, express cable φ10-17mm |
Cable entry & exit | 1oval+4round (1express cable&4drop) |
Material | Body:PP+GF, tray:ABS |
Net weight | 4.2-4.8kg |

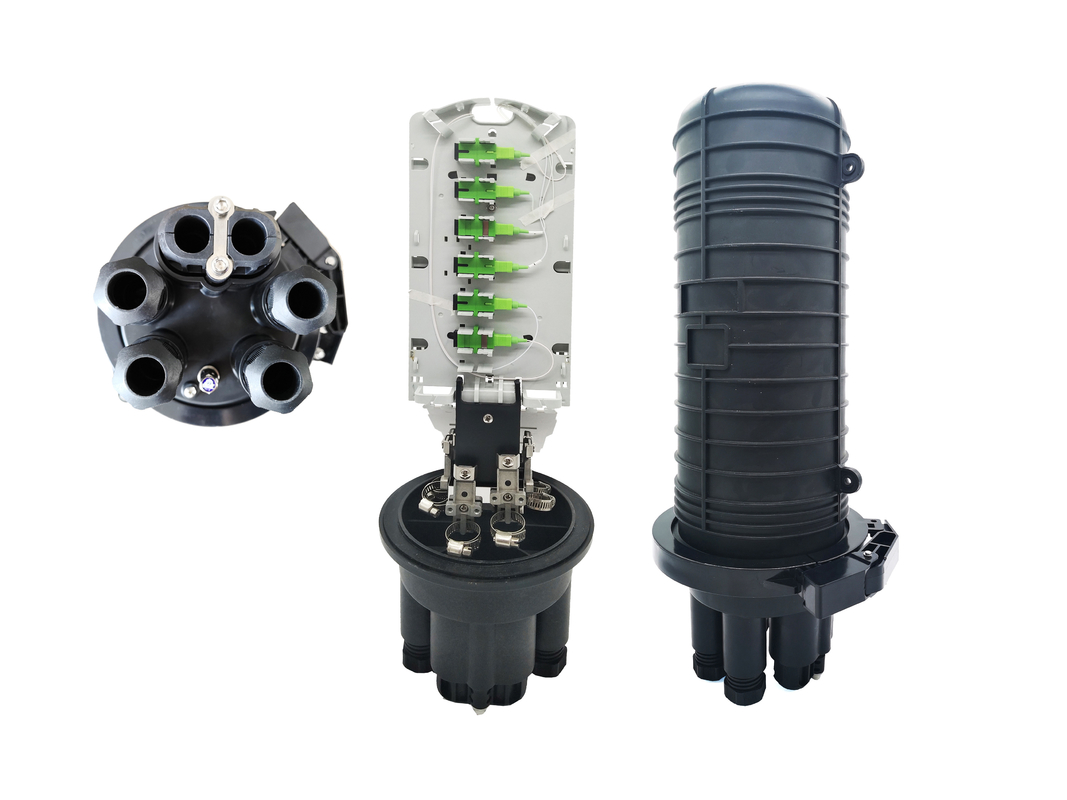

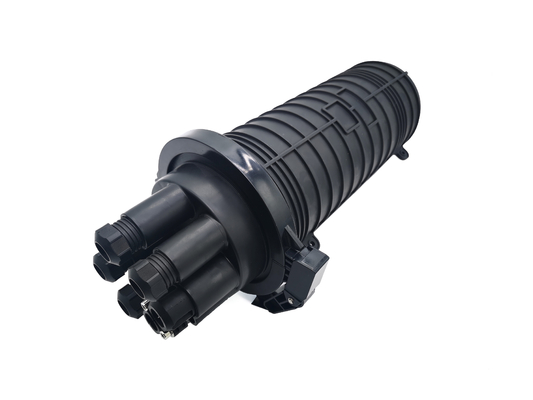

GJS-D033 dome closure with 1 uncut ports and 4 round ports, mechancial sealing with air valve, grouding device and wires.
The express port is typically used for feeder cable go through the box without cutting.
----------------------------------------------------------------------------------------------------------------------------------------------
1x8 splitter closure is totally enclosed with hook and waterproof rings in the dome, and stainless steel cable fixture and clamps for cable entry, all trays is standard 24cores fusion splice, and the top can OEM with customer logo or labels as above.
----------------------------------------------------------------------------------------------------------------------------------------------

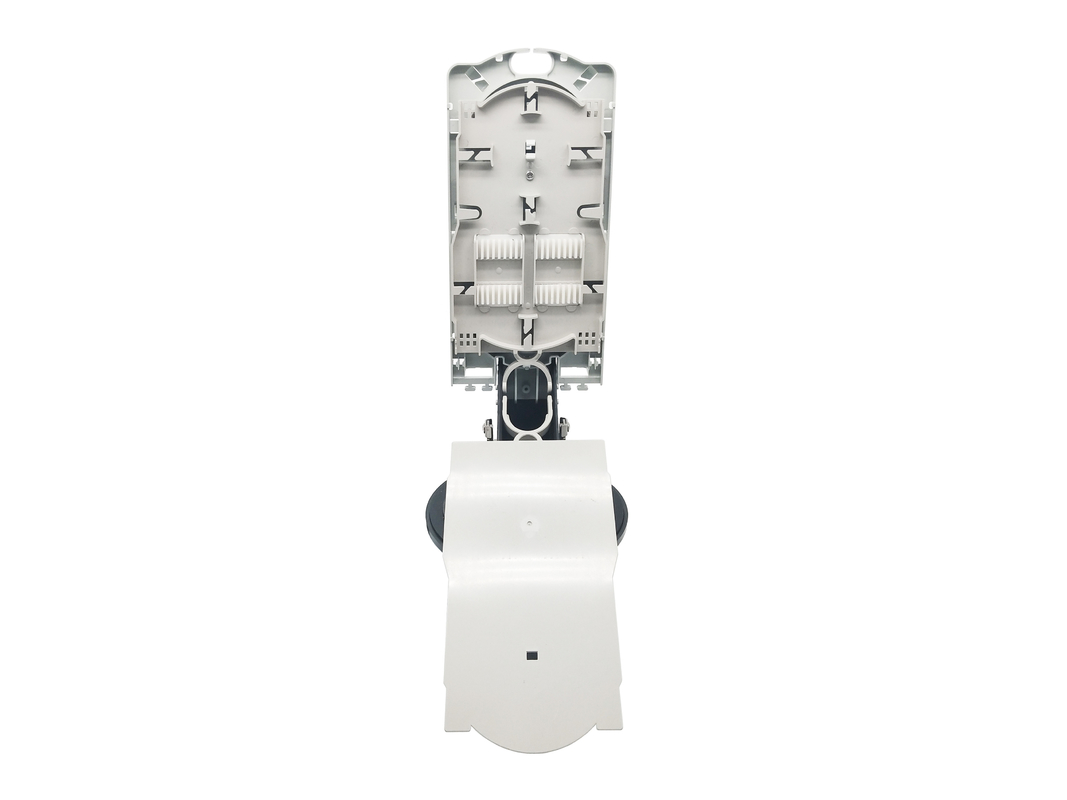

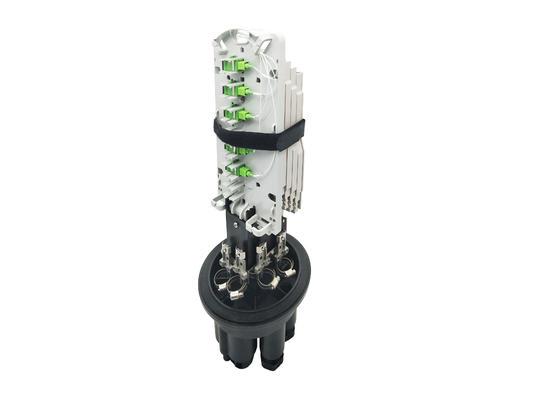

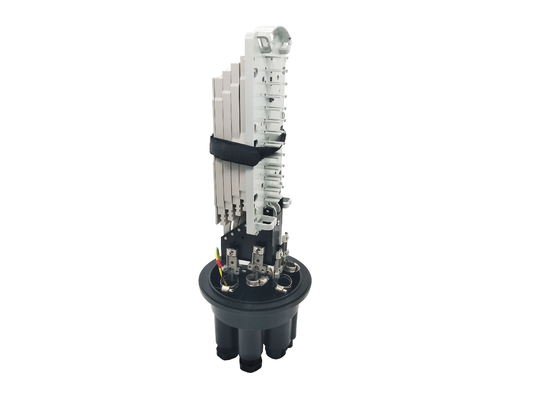

Dome mechanical splice enclosure max. can hold 6pcs trays, 1pc adapter plate at back, all fix on bottomo holders. The adapter plate can fix 32pcs SC adapters for splitter distribution and splitting.
----------------------------------------------------------------------------------------------------------------------------------------------
All kinds of plc splitter mini module can be used, like 1x2 1x4 1x8 1x16 1x32, 2x2 2x4 2x8 2x16 2x32, etc. The splitter tube can fix in fusion trays, the adapter in brackets, which is widely used in FTTH network.
----------------------------------------------------------------------------------------------------------------------------------------------
Dome, cover, clamp,tray, buffer tube, nylon tie, cable tie, cable sealing gromments, aerial mount kits, number mark, sand paper, wrench, silver paper, Hexagon wrench, split card, grounding wire, heat shrink sleeve, etc.
Application
