ABS LC UPC SM SX Fiber Optic Coupler LC / PC Singlemode E2000 Adaptor
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Count | Siimplex | Connector Material | Plastic |
|---|---|---|---|
| Adapter Color | Blue/ UPC, Beige/PC, Green/APC, Aqua/PC | Sleeve Material | Ceramic |
| Fiber Type | SM, MM,OM3,OM4 | Polish Mode | UPC |
| Working Temperature | -40 ~ +85 °C | Wavelength | 1310nm, 1550nm,850nm |
| House Material | Plastic ABS | ||
| High Light | fiber optic coupler,fiber optic adaptor |
||
Product Description

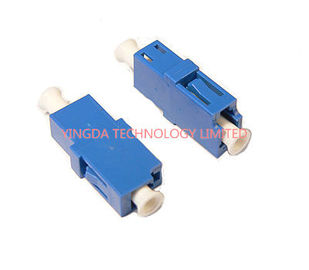

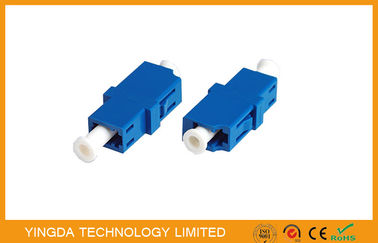

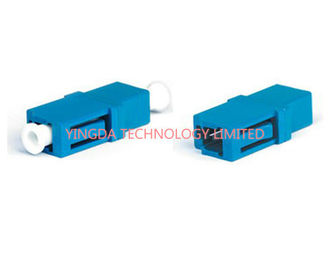

ABS LC UPC SM SX Adapter, Fiber Optic Coupler LC / PC Single Mode Simplex Adaptor
Description
Fiber Optic Adapter(coupler), is connector during optical fiber transmission, both ends can be
inserted into the different optical fiber connector such as FC, SC, ST, LC, MTRJ, MPO, E2000
to make them interchange,and widely used in optical optical distribution frame (ODF), optical
Fiber communication equipment, instruments, etc., superior performance, stable and reliable.
Some call fiber optic adapter as optical fiber connectors, in facSt,its two different things.
Main features
The optical fiber is linked by internal opening sleeve of adapter to ensure the highest connection
performance. In order to fix them on various panels, also designed a variety of precise fixed adapters.
Hybrid adapter can connect different types of connectors on both ends,and provides APC end face
connection. Duplex or multiple adapter can improve the density of installation, save a space.
Product category
According to different optical fiber connector, fiber optic adapter can provide corresponding
connecting parts.
Suitable connector are FC, SC, ST, LC, MTRJ, E2000, etc.
Suitable connector end face are PC, UPC, APC, etc.
Advantage:
- Low insertion loss <0.2dB
- High return loss
- Small size, high density
- High precision mechanism
- Simple installation and operation
Application
- Optical fiber communication room / network cabinet
- Fiber Optic Cross Cabinet
- CATV
- EPON
- FTTP
Specification
|
Item |
Single mode |
multimode |
||
|
Polish |
UPC |
APC |
UPC |
PC |
|
Insertion loss |
≤0.2dB |
≤0.2dB |
≤0.3dB |
0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥50dB |
≥35dB |
|
Max. attenuation |
0.4dB@1310nm 0.3dB@1550nm |
0.4dB@1310nm 0.3dB@1550nm |
3.0dB@850nm 1.2dB@1300nm |
3.0dB@850nm 1.2dB@1300nm |
|
attenuation |
Single mode:1310nm≤0.35dB/km;1550nm≤0.25dB/km multimode:850nm≤3.0dB/km;1300nm≤1.0dB/km |
|||
|
durability |
≥1000 / Matings |
|||
|
Working temperature |
-30℃~ +70℃ |
|||
Note: the parameters in the table for reference purposes only, if the numerical change without notice.
Order information
1. End face polish: PC, UPC. APC
2. Cable type; single mode (SM= 9/125) , multimode (MM= 50/125 or 62.5/125)OM3 ;OM4
3. Cable capacity: Simplex or Duplex
4. Cable jacket: PVC,LSZH ,PU...
5. Cable diameter: 0.9mm 1.6mm 2.0mm 3.0mm 4.0mm......
6. Cable length: L=1M,2M,3M `````````(M=Meter) or customized
7. Cable color: customized
