Fiber Optic Adapter
Created with Pixso. MPO MTP Fiber Optic Adapter Coupler 12Fiber 24Fiber OM3 Green Aqua Purple Black

MPO MTP Fiber Optic Adapter Coupler 12Fiber 24Fiber OM3 Green Aqua Purple Black

Brand Name: YINGDA
Model Number: MPO MTP
MOQ: 10PCS
Price: Negotiable
Delivery Time: 5-7work days
Payment Terms: T/T, D/P, D/A, Western Union, MoneyGram
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Color:
Black, Green, Aqua, Purple ,etc
Material:
Plastic PC ABS
Connector:
MPO MTP Adaptor
Fiber Count:
12 Fiber, 24 Fibers
Product Name:
Fiber Optic Adapter, Flanged Coupling Adapter, Fiber Network Adapter, Fiber Optic Coupling, Media Converter Adapter
Insertion Loss:
<0.3db
Product Name:
Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette
Packaging Details:
1pc / box
Supply Ability:
200000 piecs per month
Highlight:

fiber optic coupler

,

fiber optic adaptor

Product Description

MPO MTP Fiber Optic Adapter Coupler 12Fiber 24Fiber OM3 Green Aqua Purple Black


YINGDA MPO fiber optic adapter connetion is different with the simplex SC adapter, SC fiber optic adapter has ceramic sleeve inside,
which makes the core connection for precise alignment, but MPO adapter connect according to the end surface 2pcs guide hole and
guid pin whose diameter is 0.7mm. So MPO adapter don't have singlemode or multimode, but SC fiber optic adapter have due to
different sleeve. MPO adapter is widely used in communication system base station, building room fiber distribution (ODF), MPO box,
a variety of test instruments.





Stable Mechanical Properties:



MPO adapters possess relatively good mechanical stability. They can endure a certain degree of plugging and unplugging operations as well as the influence of the external environment, ensuring that they can still maintain excellent connection performance after multiple uses. The material is usually plastic (PC), etc., which has a certain degree of strength and durability. The general operating temperature range is from 0℃ to +70℃, and the storage temperature range is from -40℃ to +85℃, enabling them to adapt to complex and harsh working environments.


Shipping Details


12/24 core single mode multimode general use MPO/MTP fiber adapter is the manufacturer sell direct, standard delivery time:
5days -7days.Color can be customized according to customer requirements, non quality problems do not accept returns, specific
problems please contact customer service online or telephone: 18688982406 to make order or consult. We will take the highest
quality service, the quickest technical support to help the parents complete the order.

Features

  • Good repeat ability, repeat >500times
  • Low insertion loss
  • High reliability
  • Variety of kinds
  • Meet RoSH requirements



Polarity



MPO MTP  Fiber Optic Adapter Coupler  12Fiber 24Fiber OM3 Green Aqua Purple Black 0

MPO adapters is divided into Class A and Class B. The polarity of Class A adapters is Key Up/Key Down, which ensures that one end of fiber core 1 corresponds to the other end of fiber core 1 for direct connection; The polarity of Class B adapters is Key Up/Key Up, which allows for staggered connections between one end fiber core 1 and the other end fiber core 12. By selecting different types of adapters, the fiber polarity of MPO connectors can be managed

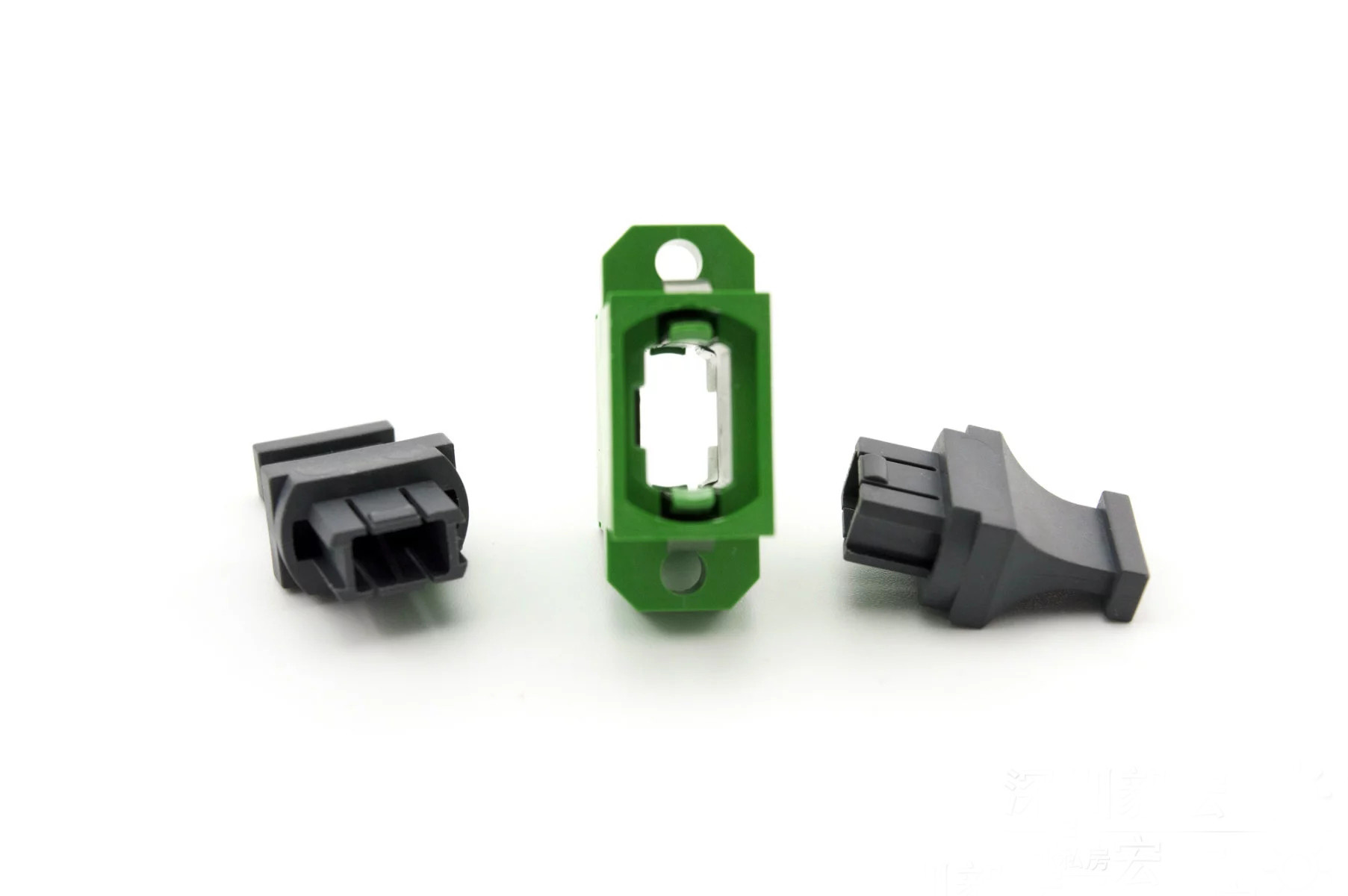

Adapter Structure

MPO MTP  Fiber Optic Adapter Coupler  12Fiber 24Fiber OM3 Green Aqua Purple Black 1

Specification

Connector

MPO / MTP

Color

Black / aqua

Test wavelength

1310nm, 1550nm, 850nm, 1300nm

Insertion loss

typical<0.20dB, maximum< 0.30dB

Repeat ability

≤0.10dB

Interchangeable

≤0.20dB

Plug performance

Plug 500 times, <0.20dB

Adapter material

Plastic PC

Working temperature

0℃ to +70℃

Storage temperature

-40℃ to +85℃


MPO MTP  Fiber Optic Adapter Coupler  12Fiber 24Fiber OM3 Green Aqua Purple Black 2
---------------------------------------------------------------------------------------------------------------------------------------------
MPO MTP  Fiber Optic Adapter Coupler  12Fiber 24Fiber OM3 Green Aqua Purple Black 3
---------------------------------------------------------------------------------------------------------------------------------------------
Application

  • Test instruments
  • The fiber link test
  • The connection between the equipment
  • The connection between the MPO - jumper
  • The cable TV network, metropolitan area network,
  • wide area network, FTTX

MPO MTP  Fiber Optic Adapter Coupler  12Fiber 24Fiber OM3 Green Aqua Purple Black 4







Customized services:



Welcome to purchase adapters from our company. If the quantity is suitable, we are also willing to customize an order for you, even at a discount. Please submit your order to us immediately so that your project can take it further
