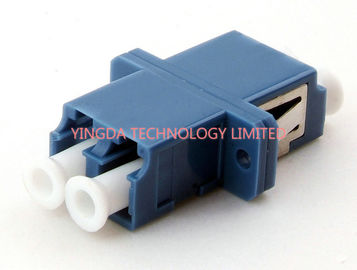

PBT Fiber Optic Adapter LC Duplex SC Footprint Type Blue Single Mode High Density

PBT Fiber Optic Adapter LC Duplex SC Footprint Type Blue Single Mode High Density

  • High Light

    fiber optic adaptor

    ,

    bare fiber adapter

  • Fiber Count
    Duplex, Zipcord
  • Connector Material
    Plastic
  • Adapter Color
    Green. Blue, Beige, Purple, Aqua
  • Sleeve Material
    Ceramic
  • Fiber Type
    SM, MM,OM3,OM4
  • Polish Mode
    APC, UPC, PC, SPC
  • Working Temperature
    -40 ~ +85 °C
  • Wavelength
    1310nm, 1550nm,850nm
  • House Material
    PBT, ABS
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    AD-LCS-DX
  • Minimum Order Quantity
    1000pcs
  • Price
    Negotiable
  • Packaging Details
    50 pc / box
  • Delivery Time
    5 working days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    200km/ month

PBT Fiber Optic Adapter LC Duplex SC Footprint Type Blue Single Mode High Density

PBT Fiber Optic Adapter LC Duplex SC Footprint Type Blue Single Mode Telecom Standard





Features

  1. Low insertion loss <0.2dB
  2. High return loss
  3. Small size, high density
  4. High precision mechanism
  5. Simple installation and operation



Application

  • Optical fiber communication room / network cabinet
  • Fiber Optic Cross Cabinet
  • CATV
  • EPON
  •  FTTP



Specification



Item

Single mode

multimode

Polish

UPC

APC

UPC

PC

Insertion loss

≤0.2dB

≤0.2dB

≤0.3dB

0.3dB

Return loss

≥50dB

≥60dB

≥50dB

≥35dB

Max. attenuation

0.4dB@1310nm

0.3dB@1550nm

0.4dB@1310nm

0.3dB@1550nm

3.0dB@850nm

1.2dB@1300nm

3.0dB@850nm

1.2dB@1300nm

attenuation

Single mode:1310nm≤0.35dB/km;1550nm≤0.25dB/km

    multimode:850nm≤3.0dB/km;1300nm≤1.0dB/km

durability

≥1000 / Matings

Working temperature

-30℃~ +70℃

Note: the parameters in the table for reference purposes only, if the numerical change without notice.



Order information



1.  End face polish: PC, UPC. APC

2. Cable type; single mode (SM= 9/125) , multimode (MM= 50/125 or  62.5/125)OM3 ;OM4

3. Cable capacity: Simplex or Duplex

4. Cable jacket: PVC,LSZH ,PU...

5. Cable diameter: 0.9mm 1.6mm 2.0mm  3.0mm 4.0mm......

6. Cable length: L=1M,2M,3M `````````(M=Meter) or customized

7. Cable color: customized





All kinds of LC adapter can be choosed:

 Simplex, Duplex, Quad, with flange or without flange,shutter type,etc.

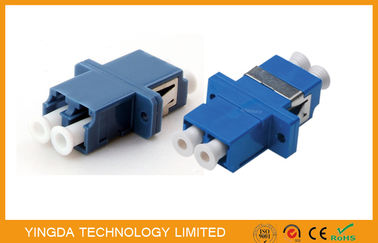

PBT Fiber Optic Adapter LC Duplex SC Footprint Type Blue Single Mode High Density 0
