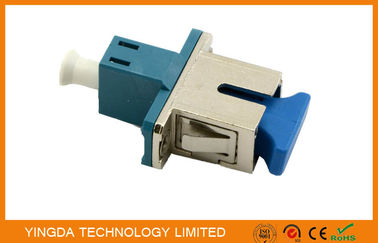

Half Metal LC - SC Fiber Optic Adapter , Low Insertion Loss Male To Female Adapter
Products

Fiber Optic Termination Box

Fiber Optic Splitter Box

Fiber Optic PLC Splitter

Fiber Cable Joint Box

MTP MPO Cable

Fiber Optic Pigtail

Fiber Optic Patch Cord

Fiber Optic Adapter

Fiber Optic Attenuator

Field Installable Connector

FTTH Drop Cable

Fiber Optic Patch Panel

Fiber Optic Splice Closure

Fiber Tool Kits

Optical Network Unit

Cable Installation Kits

AOC Cable

DAC Cable

WDM CWDM DWDM

SFP Module
Contact Us
sales@yingdapc.cn
+86 18688982406
Wechat
Contact Now
Half Metal LC - SC Fiber Optic Adapter , Low Insertion Loss Male To Female Adapter
  • Name
  • Name
  • Name
  • Name

Half Metal LC - SC Fiber Optic Adapter , Low Insertion Loss Male To Female Adapter

MOQ: 100 PCS
Price: 0.04USD-2.15USD
Standard Packaging: 1 pc / bag or 10 pc/ blister box
Delivery Period: 3 days
Payment Method: T/T or western Union
Supply Capacity: 50,000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO,SGS
Model Number
AD-LC M/SC F-SX-M
Material:
Metal, Plastic
Dust Cap Color:
Red
Type:
Hybrid Adapter
Weight:
12g
Fiber Type:
Single-mode, Multimode
Sleeve Material:
Ceramic
Product Name:
Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette
Highlight:

fiber optic adaptor

,

bare fiber adapter

Product Description

Half Metal LC - SC Fiber Optic Adapter , Low Insertion Loss Male To Female Adapter





Description:



Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.

Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber

connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.



Hybrid adapter can connect different types of connectors on both ends,and provides APC end

face connection. Duplex or multiple adapter can improve the density of installation, save a space.



Features

  1. Low insertion loss value
  2. Choice of housing and sleeve materials
  3. Stable capability and high reliability
  4. Excellent mechanical
  5. Choice of housing and sleeve materials
  6. Stable capability and high reliability
  7. Excellent mechanical capability
  8. Variety of colors



Specification



Insertion loss

≤0.2dB

Insert-pull test

1000 times

Repeat ability

≤0.1dB

Tensile strength

≥10kg

Operating temperature

-40°C~85°C

Sleeve materials

Ceramic or Metal

Standard

Bellcore TA-NWT-001209

Storage temperature

-40°C~85°C



Application

  • CATV
  • Telecom networks
  • Optical test equipments
  • Local area networks
  • Wide area networks
  • Data processing networks



Half Metal LC - SC Fiber Optic Adapter , Low Insertion Loss Male To Female Adapter 0Half Metal LC - SC Fiber Optic Adapter , Low Insertion Loss Male To Female Adapter 1
