Plastic Fiber Connector Adapter Coupler SC To SC Duplex SM MM With Flange

Place of Origin china
Brand Name YINGDA
Certification ISO,SGS
Model Number AD-SCM1-03
Minimum Order Quantity 1000pcs
Price Negotiable
Packaging Details 20 pc / box
Delivery Time 5 working days
Payment Terms T/T or western Union
Supply Ability 200km/ month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Count Duplex Connector Material Plastic
Adapter Color Green/Blue/beige.. Sleeve Material Ceramic
Fiber Type Multimode 50/125um,62.5/125um Polish Mode APC/UPC/PC
Working Temperature -40 ~ +85 °C Wavelength 850nm/1250...
House Material PBT / ABS Connector SC
High Light

PBT Fiber Connector Adapter

,

Duplex Fiber Optic Coupler

,

Plastic SC Fiber Connector Adapter

Leave a Message
Product Description

PBT Plastic SC MM DX Fiber Optic Adapter Optical Coupler, SC Duplex Adapter





Fiber connector adapters are also referred to as fiber optic couplers. They are used to provide a

cable to cable fiber connection.. Yingda connector adapters are used to connect the same type

fiber optic connectors, while hybrid adapters connect different kinds of fiber optic connectors.

We offers a complete line of adapters for fiber optic connections, including ST, SC, FC, LC, MTRJ

style fiber optic adapters for both multimode and single-mode fiber applications. We also offer fiber

adapter plates for ST-, SC-, MT-RJ- or LC-type connections.



SC=Standard connector, "SC" connector is standard square connector, made of engineering plastic,

high temperature resistant,not easy to oxidation.Transmission equipment generally use SC connectors.





This is a kind of developed by Japan's NTT optical fiber connector. The shell rectangular, adopted

by the pin and the structure of the coupling sleeve size and FC are exactly the same,. The end face

of the pin is used more PC or APC model grinding way; Fastening way is to use plug pin bolt type,

does not need to rotate. This kind of connector price is low, plug is easy to operate, small ripple in

loss, high compressive strength, high density installation.





Features

  1. Conforms to Telcordia GR-326-CORE standard
  2. Conforms to YD/T-1272.3 standard
  3. Good interchangeability,low insertion loss
  4. Easy to use,plug
  5. Application: FTTH,CATV,Telecommunications,etc
  6. 100% test in factory
  7. High quality blister box package
  8. Customer label with logo ok
  9. Insertion loss<0.2dB



Specification



Wavelength

1200-1600nm

Polish method

UPC,PC,APC

Insertion loss

≤0.2dB

Max.Insertion loss

≤0.3dB

Repeatability

≤0.1dB

Interchangeability

≤0.2dB

Sleeve material

Cermic or metal

Working/Storage temperature

-40~+85℃

Matings time

>1000



Order information

  1. Connector type: SC/UPC, SC/PC, SC/APC
  2. Connector color: beige, blue, green, aqua, purple
  3. Fiber type: SM, OM1, OM2, OM3, OM4
  4. Type: simplex, duplex

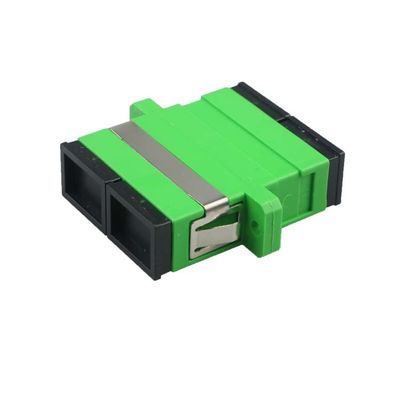

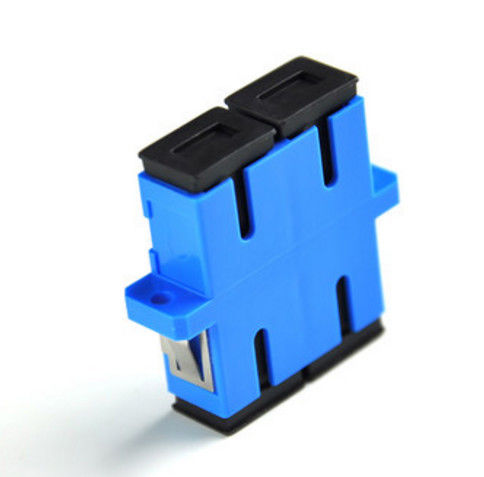

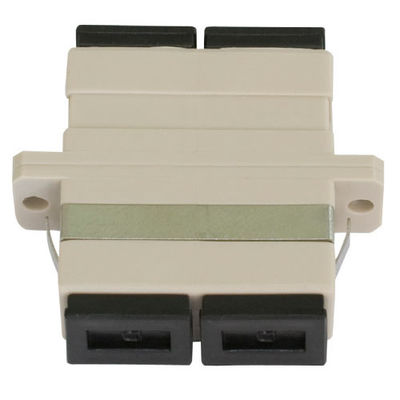

Plastic Fiber Connector Adapter Coupler SC To SC Duplex SM MM With Flange 0Plastic Fiber Connector Adapter Coupler SC To SC Duplex SM MM With Flange 1

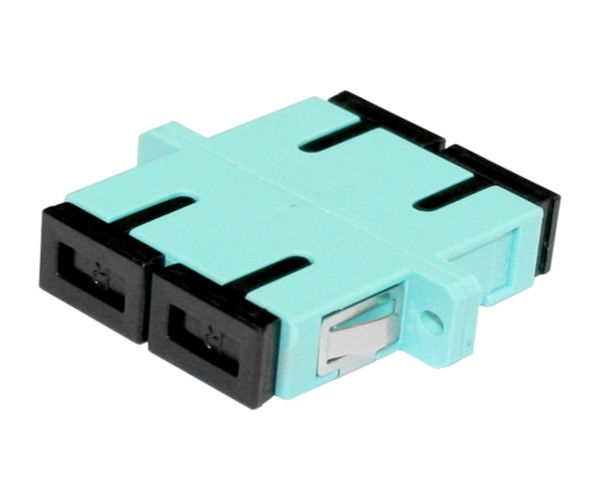

Plastic Fiber Connector Adapter Coupler SC To SC Duplex SM MM With Flange 2Plastic Fiber Connector Adapter Coupler SC To SC Duplex SM MM With Flange 3Plastic Fiber Connector Adapter Coupler SC To SC Duplex SM MM With Flange 4
