E2000 Fiber Optical Adapter RM Metal Shell Without Flange For ODF Rack
-
High Light
Durable Fiber Optical Adapter
,PBT Fiber Optical Adapter
,Metal Shell Fiber Optic Adapter
-
Fiber Count1core Simplex
-
Connector MaterialPlastic
-
Adapter ColorGreen Blue Purple Gray Aqua
-
Sleeve MaterialCeramic White
-
Fiber TypeSingle Mode 9/125um
-
Polish ModeAPC PC UPC
-
Insetion Loss< 0.2dB
-
Wavelength1310nm, 1550nm
-
House MaterialPBT ABS
-
Flange TypeWithout Flange
-
ApplicationPatch Panel, ODF Frame, Rack, Cabinet, Closure Etc
-
Place of Originchina
-
Brand NameYINGDA
-
CertificationISO, CE
-
Model NumberYDAD-SA-E2000/RM
-
Minimum Order Quantity100pcs
-
PriceNegotiable
-
Packaging Details50cs / box
-
Delivery Time5 working days
-
Payment TermsT/T or western Union
-
Supply Ability20k pcs/ month
E2000 Fiber Optical Adapter RM Metal Shell Without Flange For ODF Rack
E2000/Upc Simplex Singlemode Fiber Optic Adapter with Flange For Patch Panel
Quick Details of Fiber Optic Adapters
- Connector: SC LC FC ST E2000 MPO
- Color type: blue, beige, aqua, green, purple, etc.
- Insertion loss<0.2dB
- Conforms to IEC61300 standard, CE certified
Yingda simplex plastic SC couplers are designed for mounting in standard rectangular cut out stype panels. This sery features either bronze or ceramic alignment sleeves to meet your specific design requirement. Ferrule can be PC, APC, UPC polished. Simplex, duplex and quad adapters are available in plastic without flange, and in horizontal and vertical mount type. All come with a choice of zirconia split sleeves (diagonal or straight split options avilable) or with phosphor bronze straight split sleeves.
E2000 Fiber Optic Adapter Features
- Insertion loss <0.2dB
- 100% test in factory
- Durability >1000 times
- Use connect PC,UPC,SPC,APC polished SC Fiber Optic Connectors
- Plastic ABS/PBT body, light weight, durable
- Stainless steel mounting clips allow for easy snap in installation
- Ceramic alignment sleeve supports Single mode applications
Specification
|
Item |
Test condition |
Conformance |
Test result |
|
Vibration |
10-55Hz, 1.5mm, 60min |
IEC61300-2-1 |
≤0.2dB |
|
Mating Durability |
1000 Mating, clean every 25 mating. |
IEC61300-2-2 |
≤0.2dB |
|
Impact |
1.5m, 8 drops |
IEC61300-2-6 |
≤0.2dB |
|
Strength of Coupling Mechanism |
40N, 10Min, L=22-28cm |
IEC61300-2-12 |
≤0.2dB |
|
Temperature Cycling |
40ºC to +75ºC, 40 cycles |
IEC61300-2-22 |
≤0.2dB |
|
Temperature humidty cycling |
40ºC, 95%, 96Hr |
IEC61300-2-21 |
≤0.2dB |
|
Operating Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
|
Storage Temperature |
-40ºC to +85ºC |
|
≤0.2dB |
E2000 Adapter Dimension

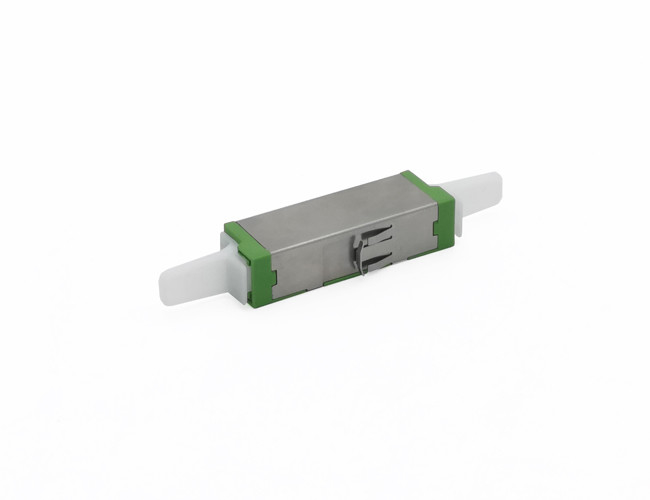

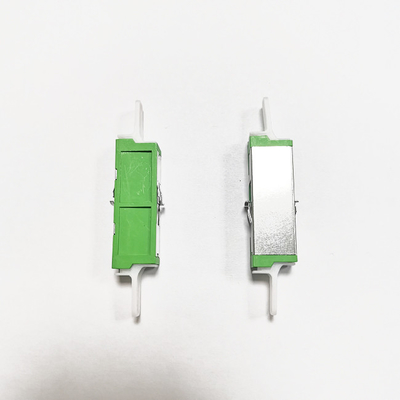

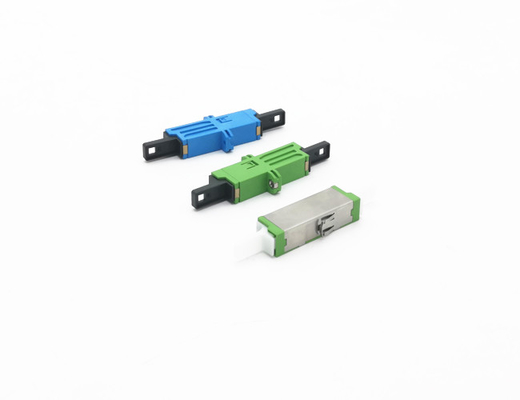

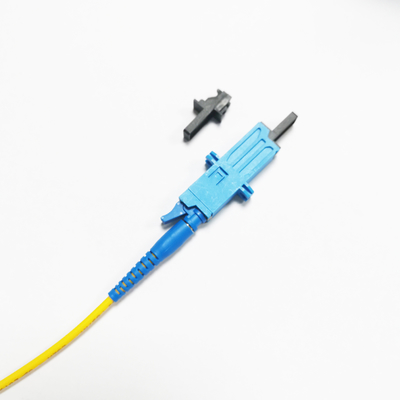

Product picture
Our products are sold all over the world, you can rest assured.
