Send Message
Good price  online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Adapter
Created with Pixso. Hybrid Fiber Optic Adapter FC / LC For Interconnecting Two Fiber Connector

Hybrid Fiber Optic Adapter FC / LC For Interconnecting Two Fiber Connector

Brand Name: YINGDA
Model Number: AD-FC/LC-SX-M
MOQ: 100 PCS
Price: Negotiable
Delivery Time: 3 days
Payment Terms: T/T or western Union
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Material:
Metal
Dust Cap Color:
Red
Type:
Hybrid Adapter
Weight:
12g
Fiber Type:
Single-mode
Sleeve Material:
Ceramic
Product Name:
Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette
Packaging Details:
1 pc / bag or 10 pc/ blister box
Supply Ability:
50,000pcs per month
Highlight:

fiber optic coupler

,

fiber optic adaptor

Product Description

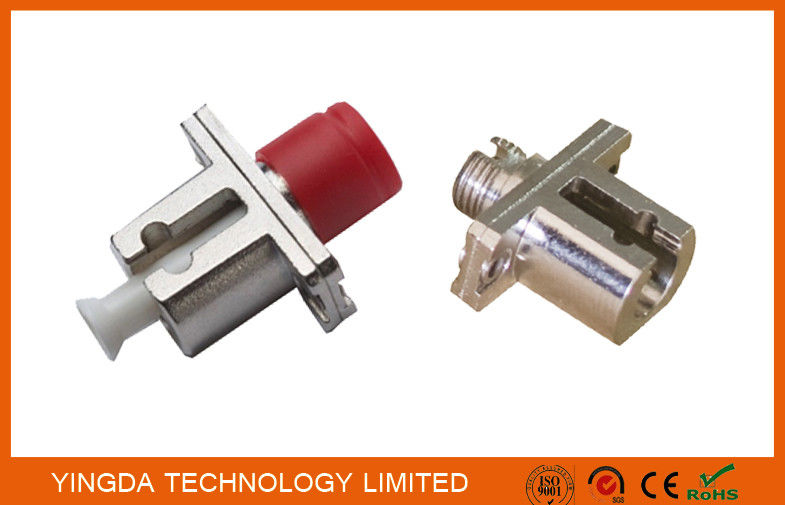

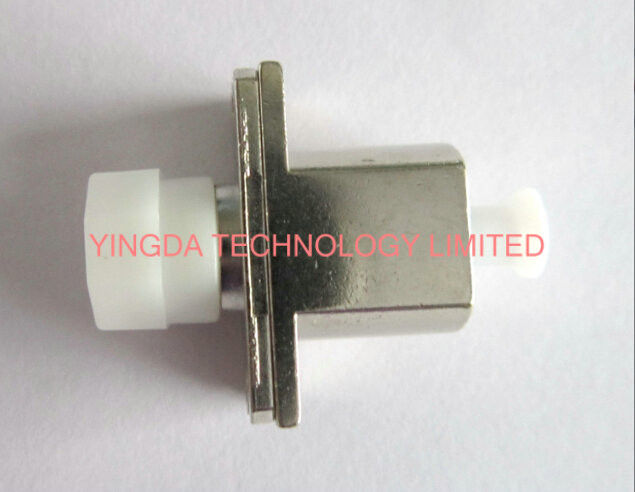

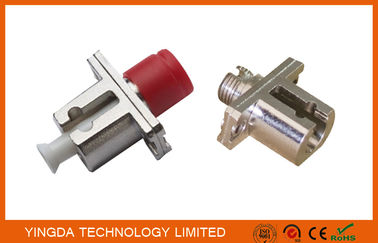

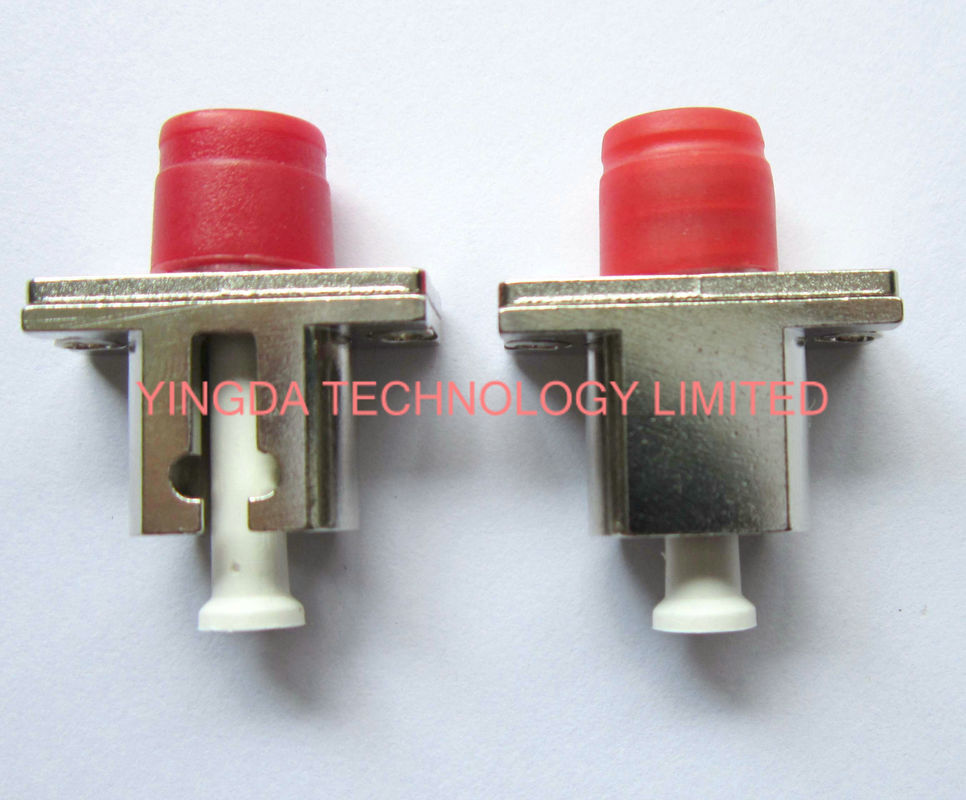

FC to LC Hybrid Adapter, FC / LC Hybrid Fiber Optic Adapter, FC - LC Coupler​





Description:

Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.

Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber

connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.



Hybrid adapter can connect different types of connectors on both ends,and provides APC end

face connection. Duplex or multiple adapter can improve the density of installation, save a space.



Application

  • CATV
  • Telecom networks
  • Optical test equipments
  • Local area networks
  • Wide area networks
  • Data processing networks



Features

  1. Low insertion loss value
  2. Choice of housing and sleeve materials
  3. Stable capability and high reliability
  4. Excellent mechanical
  5. Choice of housing and sleeve materials
  6. Stable capability and high reliability
  7. Excellent mechanical capability
  8. Variety of colors



Specification



Item

Value

Insertion loss

≤0.2dB

Insert-pull test

1000 times

Repeat ability

≤0.1

Tensile strength

≥10kg

Operating temperature

-40°C~85°C

Sleeve materials

Ceramic





Hybrid Fiber Optic Adapter FC / LC For Interconnecting Two Fiber Connector 0Hybrid Fiber Optic Adapter FC / LC For Interconnecting Two Fiber Connector 1Hybrid Fiber Optic Adapter FC / LC For Interconnecting Two Fiber Connector 2Hybrid Fiber Optic Adapter FC / LC For Interconnecting Two Fiber Connector 3Hybrid Fiber Optic Adapter FC / LC For Interconnecting Two Fiber Connector 4
