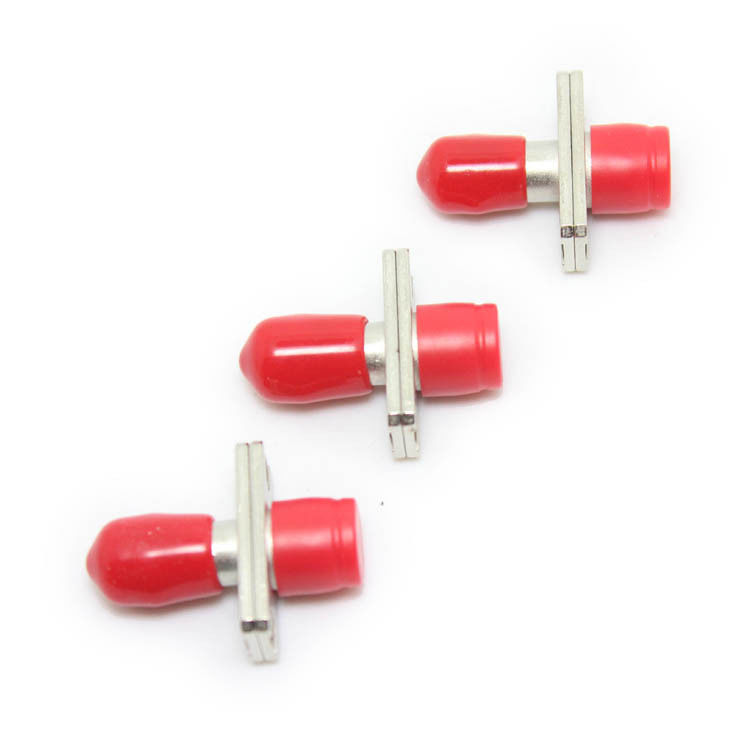

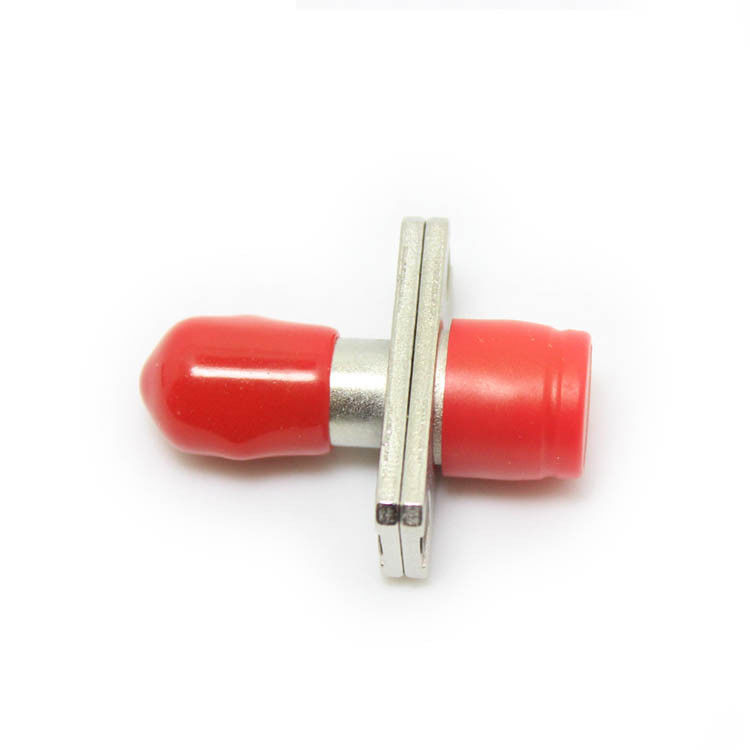

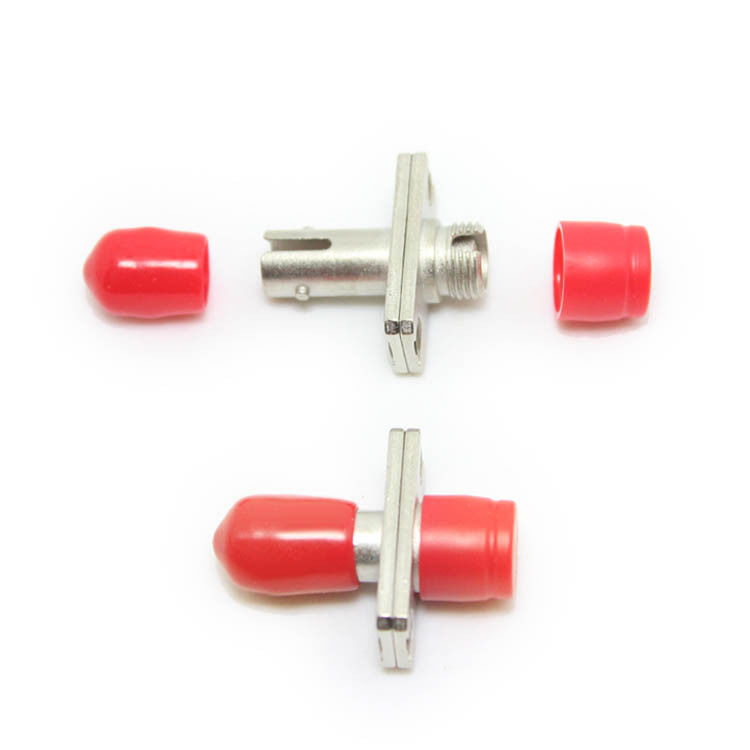

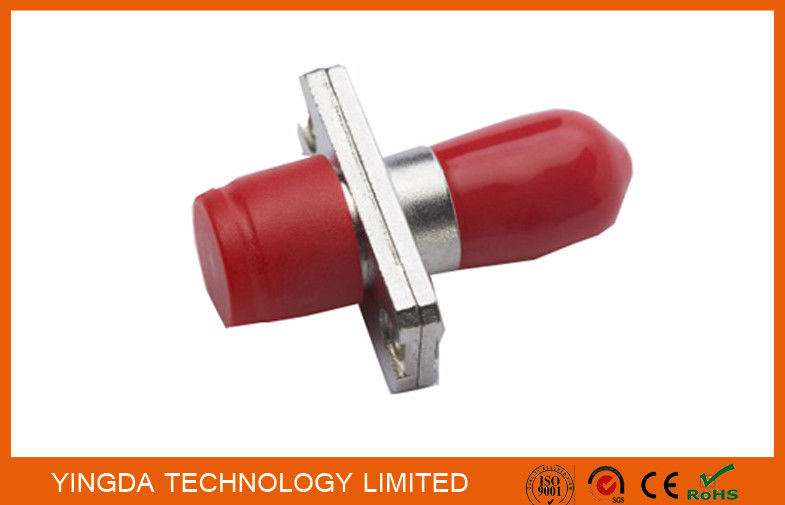

Metal SM SX  Hybird Fiber Optic Adapter / Telecom Network Optical Fiber FC/ST Adapter

Metal SM SX Hybird Fiber Optic Adapter / Telecom Network Optical Fiber FC/ST Adapter

  • High Light

    fiber optic coupler

    ,

    bare fiber adapter

  • Material
    Metal
  • Dust Cap Color
    Red
  • Type
    Hybrid Adapter
  • Weight
    12g
  • Fiber Type
    Single-mode, Multimode
  • Sleeve Material
    Ceramic
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    AD-FC/ST-SX-M
  • Minimum Order Quantity
    100 PCS
  • Price
    Negotiable
  • Packaging Details
    1 pc / bag or 10 pc/ blister box
  • Delivery Time
    3 days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    50,000pcs per month

Metal SM SX Hybird Fiber Optic Adapter / Telecom Network Optical Fiber FC/ST Adapter

FC/ST Fiber Optic Adapter Metal SM SX, FC / ST Hybird Adapter Fiber Optic​





Description:

Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.

Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber

connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.



Hybrid adapter can connect different types of connectors on both ends,and provides APC end

face connection. Duplex or multiple adapter can improve the density of installation, save a space.



Features

  1. Low insertion loss value
  2. Choice of housing and sleeve materials
  3. Stable capability and high reliability
  4. Excellent mechanical
  5. Choice of housing and sleeve materials
  6. Stable capability and high reliability
  7. Excellent mechanical capability
  8. Variety of colors



Specification



Item

Value

Insertion loss

≤0.2dB

Insert-pull test

1000 times

Repeat ability

≤0.1

Tensile strength

≥10kg

Operating temperature

-40°C~85°C

Sleeve materials

Ceramic



Application

  • CATV
  • Telecom networks
  • Optical test equipments
  • Local area networks
  • Wide area networks
  • Data processing networks
