fiber optic cabling / Mtp Mpo Cable Optical Patch Cord With Test Report

Place of Origin SHENZHEN,CHINA
Brand Name YINGDA
Certification ISO SGS ROHS
Model Number MPOF-MPOF-12F-OM1-02
Minimum Order Quantity 100 pcs
Price negotiable
Packaging Details 1pc/ box,200pcs/carton box
Delivery Time 7days after payment
Supply Ability 10,000 pcs per month
Product Details
Connector MPO MTP Female Fiber Type Multimode 50/125um
Cable Type Ribbon Optical Fiber Cable Fiber Count 24 Fibers / Cores
Cable Color Orange Cable Jacket LSZH
Insertion Loss <0.37dB Return Loss >25dB
Wavelength 850nm Cable Diameter Max.  5.5mm
High Light

MPO fanout cable

,

MPO patch cord

Leave a Message
Product Description

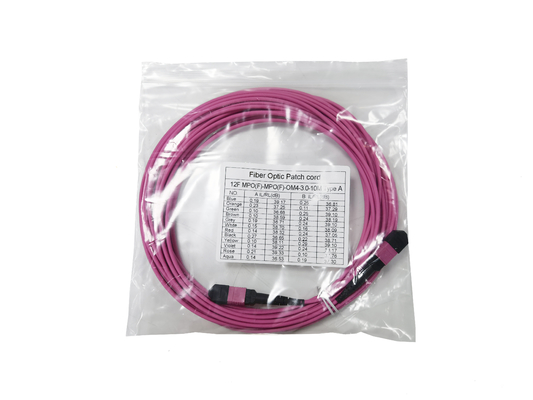

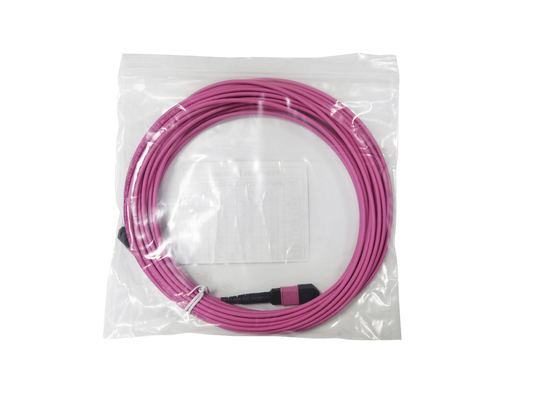

24 Fibers MTP MPO Cable Optical Patch Cord, Multimode MPO Patch Cord With Test Report





Features

  1. High Performance in IL & RL
  2. 4,8,12 and 24 fiber connector terminations and assemblies
  3. Designed for low loss and standard loss SM and MM applications
  4. Economical solution for mass-termination of fiber
  5. Suitable for MPO/MTP application
  6. Ruggedness round cable, oval cable and bare ribbon options available
  7. Color coded housings available to differentiate fiber type, polish type
  8.  and/or connector grade



Application

  • Optical switching inter-frame connections
  • High fiber density card edge access
  • Array trunk cables
  • Data center cabling



Specifications



Fiber type

Single mdoe (APC polish)

Multi mode (PC flat polish)

Parameter

Standard

Low loss

Standard

Low loss

Max. Insertion loss

<0.7dB

<0.35dB

<0.7dB

<0.35dB

Return loss

>60dB

NONE

Durability

500 mating's

Operating temperature

-40°C ~+85°C

Test wavelength

1310nm

850nm



MPO Connector Polarity Configurations:



MPO connectors have two characteristics that enable them to change the path of optical signals

(signal polarity). First, MPO connectors hold a group of fibers in fixed positions relative to some

keying feature. Second, they can be used to construct patch cords in two different orientations,

either key-up/key-up or key-up/key-down.



1. Key-up/Key-up Construction





fiber optic cabling / Mtp Mpo Cable Optical Patch Cord With Test Report 0



When a patch cord is constructed in a key-up/key-up configuration, the fiber arrangement

on one connector is mirrored about the vertical axis on the other connector. For example,

on connector A the blue fiber is to the left with the key up, while on connector B the blue

fiber is to the right with the key up. Signals input on the left side of connector A will be

output on the right side of connector B.



 fiber optic cabling / Mtp Mpo Cable Optical Patch Cord With Test Report 1



Key-up/Key-up Patch cords Mirror Signals About the Vertical Axis





 Key-up/Key-Down Construction

 fiber optic cabling / Mtp Mpo Cable Optical Patch Cord With Test Report 2

When a patch cord is constructed in a key-up / key-down configuration, the fiber arrangement

on both connectors is identical about the vertical axis (the fiber arrangement is not mirrored).

For example, on connector A the blue fiber is to the left with the key up, and on connector B

the blue fiber is also to the left with the key up. Signals input on the left side of connector A

will be output on the left side of connector B.



 fiber optic cabling / Mtp Mpo Cable Optical Patch Cord With Test Report 1

Key-up/Key-down Patch cords Do Not Mirror About the Vertical Axis



Assembly Structure Illustration:

fiber optic cabling / Mtp Mpo Cable Optical Patch Cord With Test Report 4
