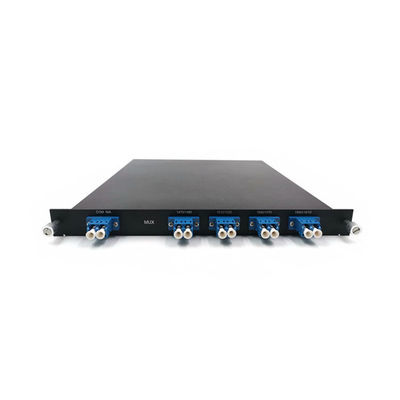

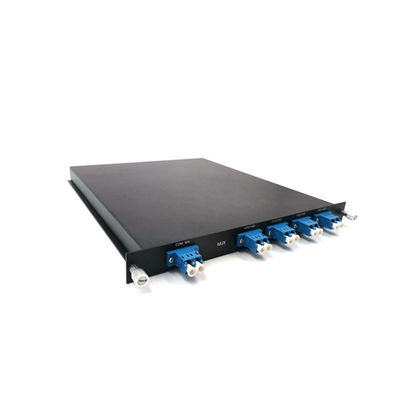

Home Products 1270-1410nm 8CH Mux/Demux CWDM 100GHz 8 Channels LGX Box CWDM For Fiber Network

1270-1410nm 8CH Mux/Demux CWDM 100GHz 8 Channels LGX Box CWDM For Fiber Network

Brand Name:	Yingda
Model Number:	8CH CWDM 1X8
MOQ:	100pcs
Price:	1.1USD-4.58USD
Delivery Time:	7days
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

Reflection:

1310/1490nm

Transmition:

1550nm

Connector Type:

LC SC FC

Fiber Type:

SMF-28e

Package:

Blister Box, 1pc/ Box

Product Name:

Fwdm Dwdm Cwdm

Network:

Wired LAN, 4g, 3G

Fiber Count:

4/8/16/32

Packaging Details:

1pc/box, 10pcs/master box

Supply Ability:

20000pcs per month

Highlight:

100GHz 8CH CWDM

LGX Box CWDM

1410nm 8CH CWDM

Product Description

Description

CWDM Mux/Demux Module are based on thin film filter technology. CWDM technology provides the flexibility to increase capacity of existing fiber infrastructure by enabling multiple channels (wavelengths) over the same fiber cabling. Each channel carries data independently from each other, allowing network designers to transport different data rates and protocols for different customers or applications.
CWDM can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-cost low power consumption and small compact, it is widely used in metro aggregation and access layer to do transmission on a short time.
Our CWDM Mux/Demux products provide up to 16-channel or even 18-channel Multiplexing on a single fiber. Standard CWDM Mux/Demux package type include: ABS box package, LGX package and 19” 1U rack-mount.

Mux CWDM Module Features

Low Insertion loss and low PDL

High channel Isolation

Good channel-to-channel uniformit

High Reliability and Stability

Telcordia Compliant

RoHS Compliant

WDM Module Application

ü Broadband networks

ü PON Networks

ü CATV system

ü CWDM system

CWDM Mux Demux Module Specification

Parameters		Unit	4CH	8CH	12CH	18CH
Operating Wavelength		nm	1260~1620
Channel Space		nm	20
Center Wavelength		nm	ITU,ITU+1
Center Wavelength y Accuracy		nm	±0.8
Pass band @-0.5dB		nm	±6.5
Port Insertion Loss		dB	≤1.3	≤2.6	≤3.6	≤3.8
Link Loss		dB	≤2.1	≤3.3	≤4.1	≤4.3
Isolation	Adjacent	dB	≥30
	Non-adjacent	dB	≥40
Ripple		dB	≤0.5
Polarization Dependent Loss		dB	≤0.2
Return Loss		dB	≥40
Directivity		dB	≥50
Power		mw	≤300
Fiber Type		/	G657.A1(0.9mm Tube, 2.0mm Tube)
Fiber Length		m	0.5+/-0.05&Customized
Connector		/	LC/UPC&Customized
Operating Temperature		℃	-20~75
Storage Temperature		℃	-40~85
Housing		mm	15512929,21519042,48425044

NOTE:

All specifications include all states of polarization and all operating temperature and all wavelength ranges specified.

All the data are without connectors, insertion loss of one pair conector is less than 0.3dB.

Mux Demux Module Structure Diagram (Refer to the below)

WDM Box Mechanical Dimensions (Refer to the below)

Packaging and Shipping:

1270-1410nm 8CH Mux/Demux CWDM 100GHz 8 Channels LGX Box CWDM For Fiber Network 2

YINGDA More FTTH Products

Fiber splitter box Fiber PLC splitter Fiber adapter Fiber fast connector

Fiber Cable Patch Cord&Pigtail MPO Cable AOC Cable
