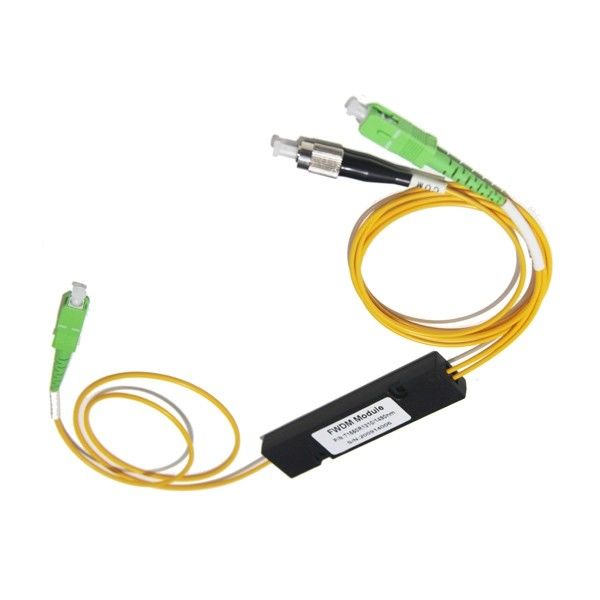

CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm

MOQ:	100pcs
Price:	1.1USD-4.58USD
Standard Packaging:	1pc/box, 10pcs/master box
Delivery Period:	7days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	20000pcs per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

china

Brand Name

Yingda

Certification

Model Number

FWDM 1X2 Fliter Module

Reflection:

1310/1490nm

Transmition:

1550nm

Connector Type:

SC/LC/ST/FC

Fiber Type:

SMF-28e

Package:

Blister Box, 1pc/ Box

Diameter:

2.0mm, 3.0mm

Network:

Wired LAN, 4g, 3G

Product Name:

FWDM Splitter 1x2

Highlight:

FC Box WDM

CATV Equipment WDM

T1550nm WDM

Product Description

Description

FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc. YINGDA Photonic provides filter-based wavelength division multiplexing (WDM) filter devices that are customized to the particular wavelength bands for your special applications. As you might know, G/E/PON system itself works on 1310/1490, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get's "mixed".

Features

Low insertion loss

High isolation

High stability and reliability

Application

Fiber laser

Fiber amplifier

Testing equipment

The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range.
It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive optical transfer solutions etc.

Specification

Type		Rx1310/1490nm, Tx 1550nm FWDM
Transmission operating wavelength (nm)		1550±20nm
Reflection operating wavelength (nm)		1310±40nm; 1490±10nm
Isolation (dB)	Reflection port	15
	Transmission port	30
Insertion loss (dB)	Reflection port	≤0.6
Transmission port	Transmission port	≤0.8
Insertion loss flatness (dB)		≤0.2
Directivity (dB)		>50
Return loss (dB)		>50
PDL (dB)		0.15
PMD (PS)		0.15
Maximum power (mW)		300
Working temperature (℃)		-40 ~+85
Storage temperature (℃)		-40 ~+85
Fiber type		Corning single mode SMF-28e, DS fiber or Flexcore
Pigtails length(m)		1.2 or customize
Port		Reflection port, Transmission port, COM port
Package		Customize

NOTE:

This indicator only corresponds to the product without connector. The indicator is subject to change without further notice.

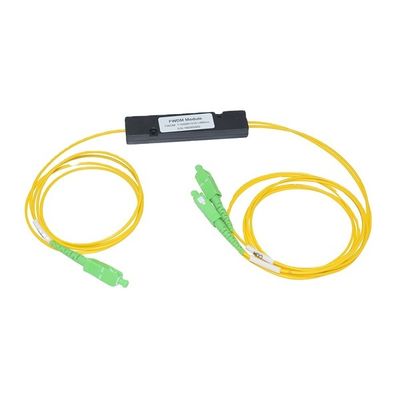

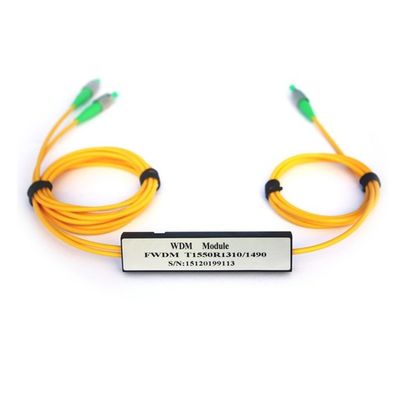

More products pictures:

CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm 0

CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm 2

Packing information:

CATV Equipment WDM With Connectors FC Box Fwdm T1550nm R1310nm/1490nm 4

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

N*n

France Oct 25.2023

Helpful (8)

Excellent product, good material quality! Easy to installtion, suitable for mini sc adapter and flat drop cable...

E*n

Chile Aug 23.2023

Helpful (9)

Good quality, IP65 waterproof. will continue to cooperate with YINGDA

R*K

Venezuela Sep 26.2022

Helpful (24)

All connectors insert loss < 0.3db, and the quality is better than other suppliers. I recommend this supplier to everyone, very professional!
