High Channel Capacity: This CCWDM module offers a high channel capacity of 4/8 channels, making it an ideal solution for applications requiring a large number of channels, such as a customer who needs to support multiple devices on a single fiber.

Compact Design: With a compact package dimension of 44x28x7mm, this CCWDM module is perfect for space-constrained environments, such as a data center that requires a compact solution.

Flexible Configuration Options: This product offers a flexible configuration option, including Mux and Demux, allowing customers to choose the configuration that best suits their needs, such as a user who wants to combine multiple signals into one fiber.

Wide Operating Wavelength Range: The CCWDM module operates within a wide wavelength range of 1260~1620nm, making it suitable for various applications, including FTTH, FTTB, and FTTD, as specified by a customer.

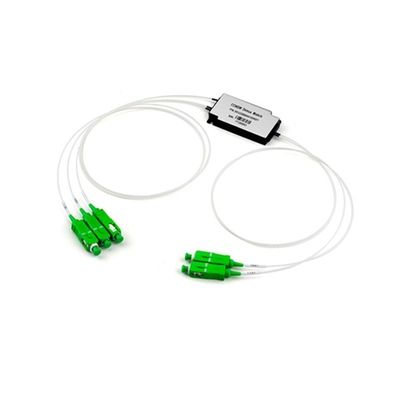

Customizable Options: This product offers customizable options, including input/output connector type (FC, SC, or LC), input/output length (0.5m, 1m, or customized), and pigtail diameter (0.9mm), allowing customers to tailor the product to their specific requirements.

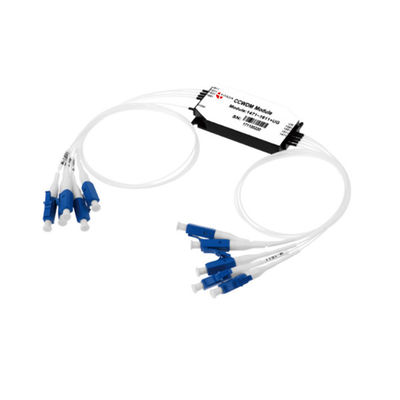

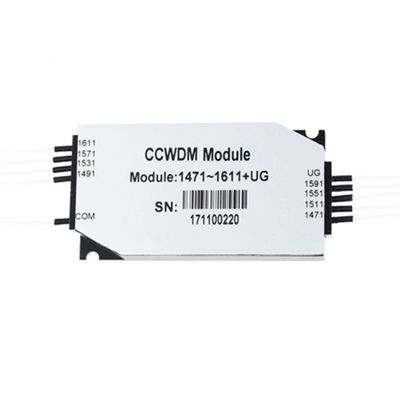

Yingda provides a series of customized Mini 8CH CCWDM within metal box to meet different requirements on Port Configuration (1310nm and upgrade ports), Operating Wavelength, Fiber Type, Fiber Length, Input Connector, and Output Connector.

Features

Low Insertion Loss

High Isolation

Low PDL

Compact size design

Good Channel-to-Channel Uniformity

Wide Operating Wavelength:From 1260nm to 1620nm

Operating Temperature: From -40°C to 85°C

High Reliability and Stability

Epoxy free in optical path

Application

Broadband Systems
Optical Add/Drop Multiplexing
Metro/Access Communication Networks
Fiber Optic Instruments

CWDM Systems

PON Networks

CATV Links

Optical add drop

Metro network

Specification

NOTE:

All specifications include all states of polarization and all operating temperature and all wavelength ranges specified.

All the data are without connectors, insertion loss of one pair conector is less than 0.3dB.
