Fiber Optic PLC Splitter 1x8 With SC Connector Colored Single Mode For PON XGPON Network

Name: Fiber Optic PLC Splitter 1x8 With SC Connector Colored Single Mode For PON XGPON Network
Brand: YINGDA TECHNOLOGY LIMITED
SKU: 1x32 plc splitter
Price: 2.10 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	1x32 plc splitter
MOQ:	100 pcs
Price:	1.1USD-4.58USD
Delivery Time:	5-8days after payment
Payment Terms:	Western Union,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Split Count:

8cores

Connector:

SC APC/ UPC

Fiber Type:

Singlemode G657A1

Insertion Loss:

10.5 DB

Uniformity (Max.):

<1.0 DB

Wavelength:

1260 - 1650 Nm

PDL(Max.):

0.3dB

Steel Tube:

80×20×6mm

Packaging Details:

1pc/ box, 20pcs/carton box

Supply Ability:

10,000 pcs per month

Product Description

Fiber Optic PLC Splitter 1x8 With SC Connector Colored Single Mode For PON XGPON Network

Planar lightwave circuit PLC splitter is a type of optical power management passive device that is fabricated using silica optical waveguide technology, it can split optical signal evenly. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

Yingda provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

Fiber PLC splitter Sepcification:

Parameter	Sepcification
Operating Wavelength(nm)	1260~1620
Type	1*2	1*4	1*8	1*16	2*4	2*8	2*16	1*32	2*32	1*64	2*64
Insertion Loss(dB) Max.	<4.0	<7.3	<10.8	<13.8	<7.6	<11.2	<14.5	<17.2	<18.2	<20.5	<21
Unifromity(dB) Max.	<0.6	<0.8	<1.0	<1.5	<1.0	<1.5	<2.0	<2.0	<2.5	<2.5	<3.0
PDL(dB) Max.	<0.2	<0.2	<0.2	<0.3	<0.3	<0.3	<0.4	<0.3	<0.4	<0.3	<0.3
Directivity(dB) Min.	55
Return Loss(dB) Min.	55(50)
Opterating Temperature(°C)	-40~+85
Storage Temperature(°C)	-40~+85
Fiber Length	1m or custom length
Fiber Type	Corning SM-28e fiber
Connector Type	Custom specified

Fiber PLC splitter Features

Low insertion loss
Low PDL
High return loss
Uniform power splitting
Compact design
Wide operating wavelength
Wide operating temperature
Excellent environmental &mechanical stability
Qualified under Telcordia GR-1221 and GR-1209

Fiber PLC splitter Applications:
• LAN, WAN & Metro Networks
• Telecommunication Networks
• Passive Optical Networks
• FTT(X) Systems
• CATV
• Value Added Modules

Product details

passive optical splitter

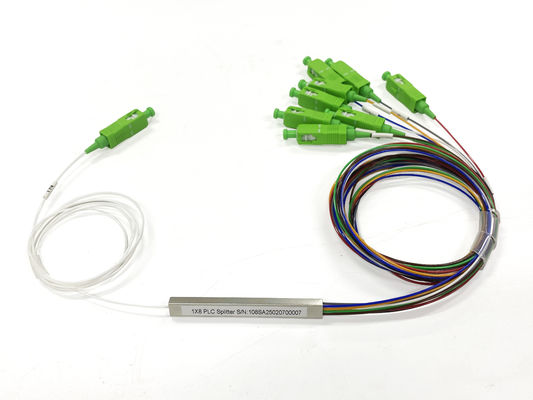

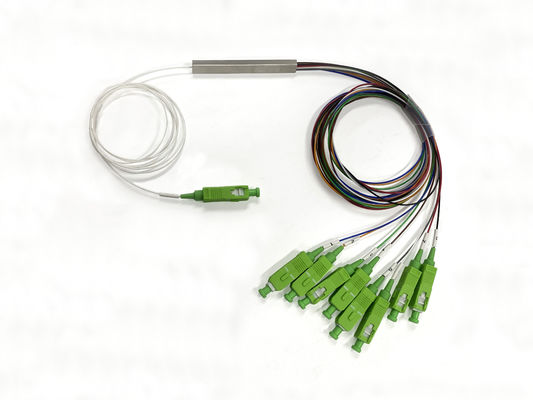

1X8 Fiber PLC Splitter Cable color can be white color or colored cable.input white, output:white,black,red,green,blue,purple,yellow,orange,...etc,

Fiber Optic PLC Splitter 1x8 With SC Connector Colored Single Mode For PON XGPON Network 1

If you choose white cable, it will have number tubes for output, better for the remake when install.

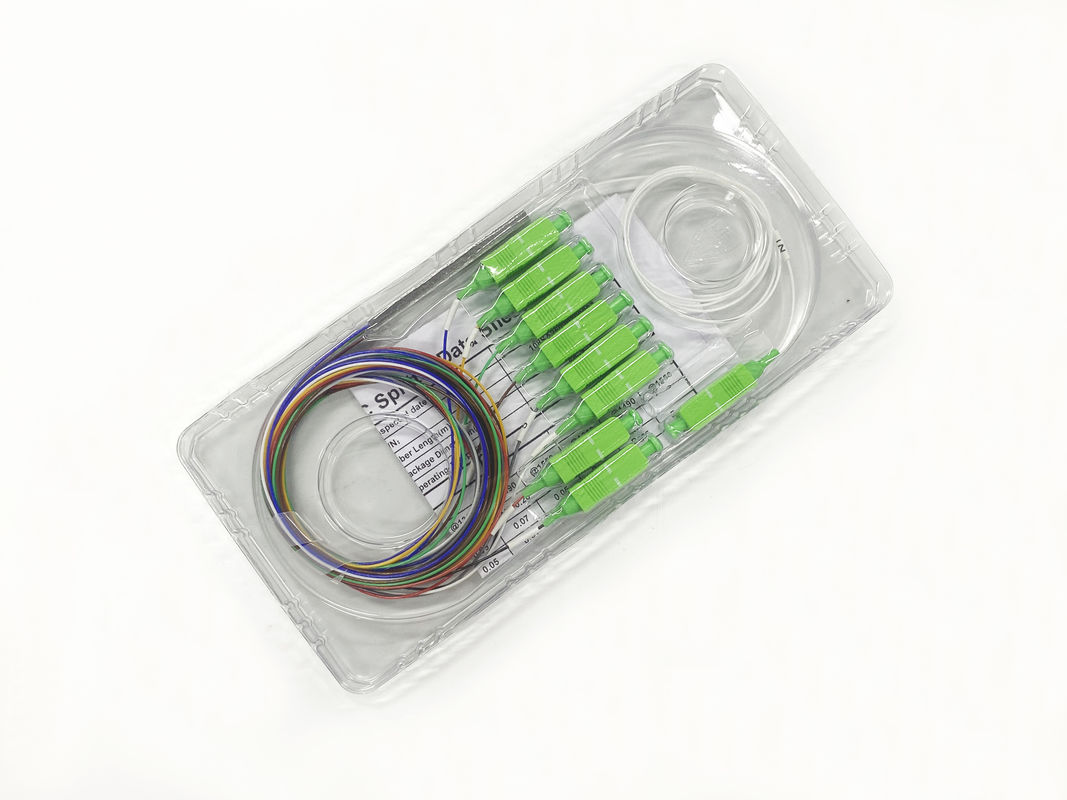

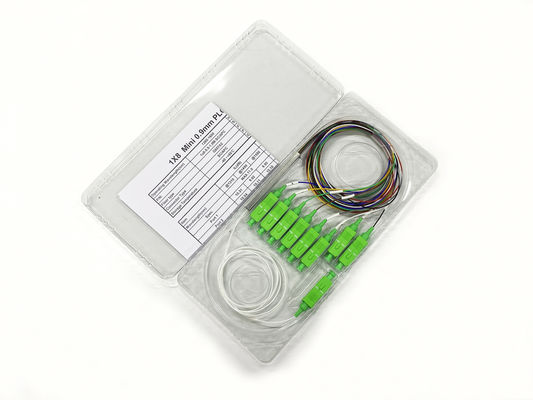

Fiber optic PLC Splitter package PLC Splitter test report

100% quality test before shipment, provider splitter data sheet for each one. Splitter IL data 1X8: Max ≤10.5dB

Fiber Optic PLC Splitter 1x8 With SC Connector Colored Single Mode For PON XGPON Network 4

Support LC/APC, LC/UPC, SC/UPC, SC/APC, ST/UPC...More Connector are optional.

PLC splitter 1X8 without connector unbalanced splitter

Mini steel type PLC splitter without connector Unbalanced splitter 1X3 1X9 70% 30%

ABS PLC splitter with SC APC connector LGX PLC splitter with SC APC connector

ABS PLC splitter with SC FC LC connector LGX PLC splitter with SC UPC connector

PLC Splitter Production Workshop

PLC Splitter Production Workshop

PLC SPLITTER CAN USED IN BELOW TERMINAL BOX

Fiber Optic PLC Splitter 1x8 With SC Connector Colored Single Mode For PON XGPON Network 10
32 ports Fiber splitter box 32 Cores LGX splitter module box 19" Patch Panel Rack Mount

Order information

Type	Package size	Port	Fiber Type	Input/output	Fiber length	connector
PLCS	BF=bare fiber FO=fan-out MD=module MB=metal box	01X02 01x04 01x08 …… 02x16 02x32 02x64	0=G652D 1=G657A C=Customize	1=bare fiber 2=900µm tight buffered 3=2.0mm Loose tube 4=3.0mm Loose tube	1=1m 2=1.5m C=Customize	0=no connector 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST/APC 6=ST/PC 7=LC/AP 8=LC/PC C=customize
