1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers

1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers

  • High Light

    plc splitter

    ,

    fiber optic splitter

  • Box Size
    267×100×50mm
  • Material
    Flame-retardant ABS
  • Color
    Gray
  • Cable Port
    18 Port: 2in ,16out
  • Splitter Type
    1x32 2x32 Passive Fiber Optic Splitter
  • Fiber Type
    Single Mode 9/125um
  • Loose Tube
    0.9mm Diameter White
  • Connector
    SC LC
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    YDPLC-LGX-232LA
  • Minimum Order Quantity
    1pc
  • Price
    negotiable
  • Packaging Details
    1PC/PLASTIC BAG, 40pcs/carton box
  • Delivery Time
    5DAYS
  • Payment Terms
    T/T, Western Union, MoneyGram, L/C

1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers

1x32 2x32 lgx plc splitter for fiber optic cable Single mode with LC SC couplers



Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using

silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise

locations. The standard LGX mental box housing provides a plug-and-play method for integration in the network,

which eliminates any risks during installation. It eliminates the need for splicing machines on the field and there

is no need for skilled personnel for deployement. Yingda provides whole series of 1xN and 2xN splitter products

that are tailored forspecific applications. All products meet GR-1209-CORE and GR-1221-CORErequirements.



These modules are compatible with all of our rack and wall mount enclosures & patch panels, available in all

connector types. Push/pull fasteners make plates easy to install and remove for service. All modules are made

of plastic. Cassette Face plates are standard LGX dimensions and compatible with most manufacturers.



LGX Box Dimension:



Splitting ratio Dimension (H×W×D)mm
1x2 / 2x2 (Inserts) 130×100×25
1x4 / 2x4 (inserts)
1x8 / 2x8(Inserts)
1x16 / 2x16 (Inserts) 130×100×50
1x32 / 2x32 (Inserts) 267×100×50



Product details:

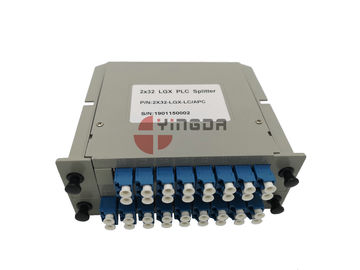

Box fully load with 2X32 LC UPC apdater and splitter as bleow:

1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers 01x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers 1



Box fully load with 2X32 LC APC apdater and splitter as bleow:

1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers 21x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers 3

1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers 41x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers 5



Application:

CATV/Telecom/LAN/WAN/Data Centers/Medical/Military/Wireless/Broadband

1x32 2x32 Lgx Plc Splitter Fiber Optic Cable Single Mode With LC SC Couplers 6





Order information:

PLC-LGX-XXX/XXX

- 1 / 2

PLC 1 Split ratio 2 connector in/out port
LGX Modular

102=1*2

104=1*4

...

SA=SC/APC

SU=SC/UPC

ST=ST

...
