Discount Average 0.3dB IL SC APC Quick Connector Field Installable For Drop Cable

Name: Discount Average 0.3dB IL SC APC Quick Connector Field Installable For Drop Cable
Brand: YINGDA TECHNOLOGY LIMITED
SKU: YDFAC003-55mm
Price: 0.19 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	YDFAC003-55mm
MOQ:	10000pc
Price:	0.19USD-0.72USD
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Price:

0.20-0.26USD

Inventory:

10K In Stock, 1-3 Days Fast Delievry

Length:

55mm

Insertion Loss:

<0.3dB Average, Max. 0.5dB

Return Loss:

>65dB

Ferrule Type:

Apc

Package:

Blister Box

Spare Parts:

Length Fix Tool, User Manual

Applicable:

Fiber To The Home, FTTH

Cable Applicable:

2.0*3.0mm Drop Cable, 2.0mm,3.0mm Round Cable

Tools Needed:

Fiber Cleaver, Cable Stripper, Alcohol Cloth, Miller Plier

Material:

PEI

Product Name:

Sc Fiber Connector,sc Fiber Optic Connector,fiber Cable Connectors,field Installable Connector

Packaging Details:

10pc / blister box

Highlight:

PEI SC APC Quick Connector

0.3dB IL SC APC Quick Connector

SC-APC Field Installable Connector

Product Description

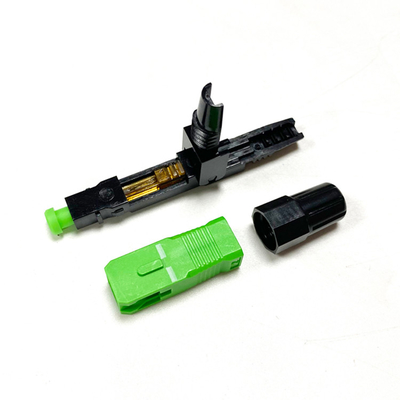

Average 0.3dB IL SC APC Green Quick Field Installable Connector for Drop cable

Discount Average 0.3dB IL SC APC Quick Connector Field Installable For Drop Cable 0

Technical parameter:

Model	YDFAC003-55mm	YDFAC003-60mm
Dimension	60mm*9mm	55mm*9mm
Insertion loss	<0.5dB, average≤0.3dB
Return loss	≥50dB
Fiber type	Single mode, multimode
Fiber diameter	0.9mm, 2.0mm, 3.0mm, 2.0*3.0mm
Working temperature	-40 ~+75⁰C
Application	Fiber to the home
Dimension	60mm*9mm	55mm*9mm
Standards	ISO9001

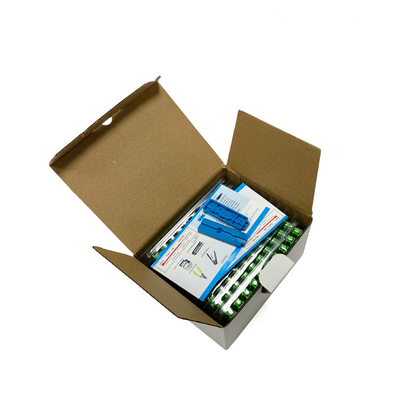

Pack information:

100pcs/each inner box, 1000pcs / carton box,

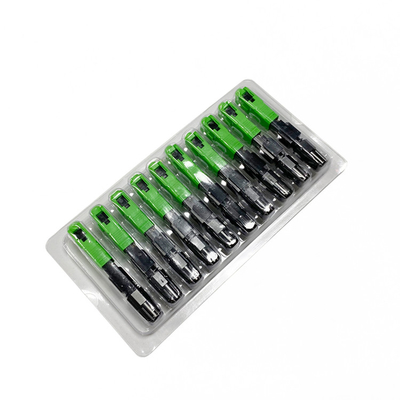

INNER PACK: 10pcs/blister box

Discount Average 0.3dB IL SC APC Quick Connector Field Installable For Drop Cable 1

Features :

40K in stock, 1 day lead time, fast delivery;

100% test before delivery;

English user manual is available.

Discount Average 0.3dB IL SC APC Quick Connector Field Installable For Drop Cable 2

Discount Average 0.3dB IL SC APC Quick Connector Field Installable For Drop Cable 3

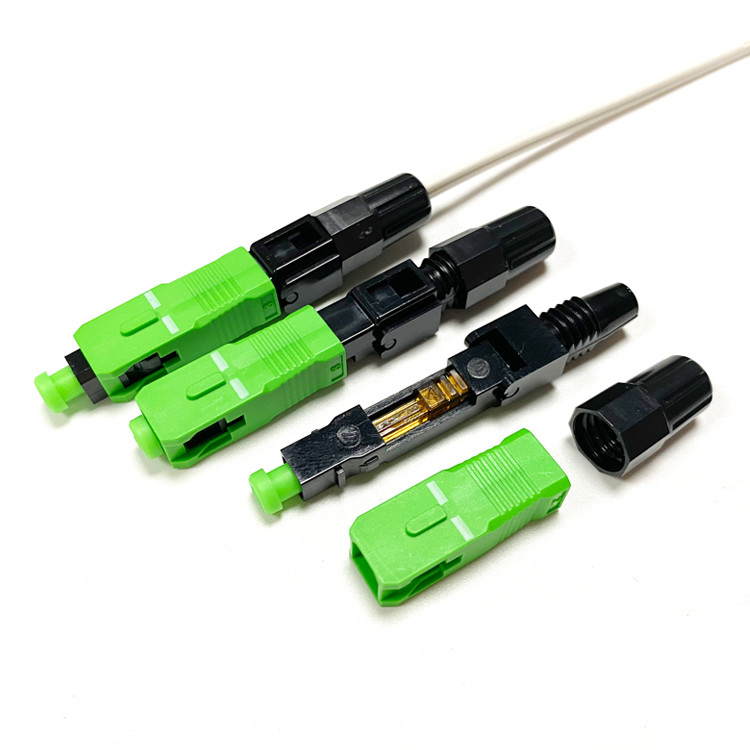

What is the difference of long and short type?

The long type is flat to lay the drop cable and the short type is vertical to lay the drop cable

Discount Average 0.3dB IL SC APC Quick Connector Field Installable For Drop Cable 4

Support OEM Services:

Discount Average 0.3dB IL SC APC Quick Connector Field Installable For Drop Cable 6

HOW TO USE?

The operation is simple, insert the optical fiber to the limit point, automatically generate a small amount of bending, keep your radian, do not straighten, screw the nut first and then lock the switch.

Step 1: take out the boot and put it into the drop cable

Discount Average 0.3dB IL SC APC Quick Connector Field Installable For Drop Cable 7

Step 2: peel off the 5cm drop cable sheath with drop cable stripper

Discount Average 0.3dB IL SC APC Quick Connector Field Installable For Drop Cable 8

Step 3: scrape the coating outside the length fixer with Miller pliers

Discount Average 0.3dB IL SC APC Quick Connector Field Installable For Drop Cable 9

Step 4: wipe the fiber core with dust cloth

Discount Average 0.3dB IL SC APC Quick Connector Field Installable For Drop Cable 10

Step 5: cut the core with a cutter

Discount Average 0.3dB IL SC APC Quick Connector Field Installable For Drop Cable 11

Step 6: insert the fiber core into the fast connector to resist the embedded core

Discount Average 0.3dB IL SC APC Quick Connector Field Installable For Drop Cable 12

Step 7: use the boot on the drop cable to clamp the cable

Discount Average 0.3dB IL SC APC Quick Connector Field Installable For Drop Cable 13
