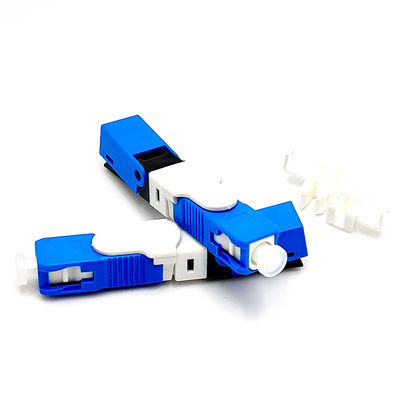

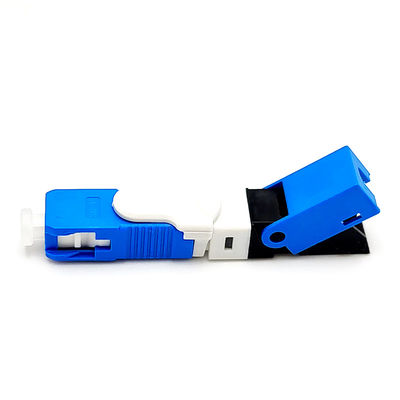

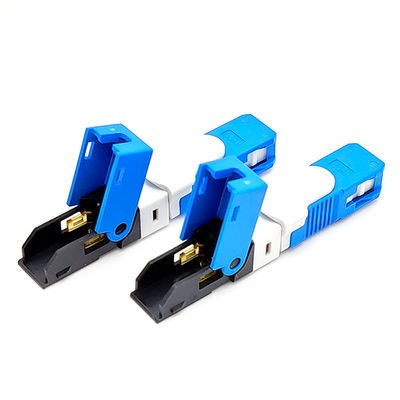

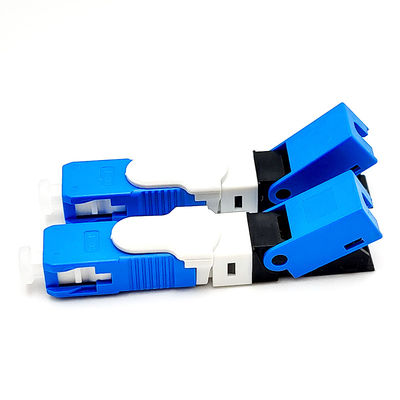

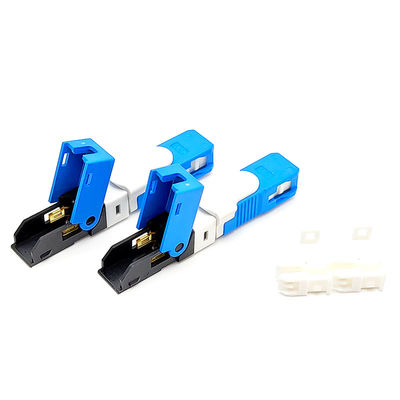

Pre Polished Embedded Field Assembly Connector Single Mode G657A1 Corning
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | ABS | Color | Blue |
|---|---|---|---|
| Fiber Type | Single Mode G657A1 Corning | Ferrule | UPC |
| Insertion Loss | <0.5dB, Average 0.3dB | Package | 10pcs/box |
| High Light | Embedded Field Assembly Connector,Pre Polished Field Assembly Connector,G657A1 field mount connector |
||
Product Description
Pre Polished Embedded Field Assembly Connector Single Mode G657A1 Corning
FTTH SC UPC Pre-Polished Embedded Fiber Optic Installable Fast Mechanical Connector Green
YINGDA Field-installable connectors are factory pre-polished connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.
Yingda fast onnectors are compatible with 250 µm and 900 µm optical fibers, as well as 900 µm, 2 mm and 3 mm cordage. All primary fiber types are supported, and each connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a “pass/fail” signal once physical contact is achieved.
Specification
| Item | Unit | UPC | APC |
| Model | ESC250D/UPC | ESC250D/APC | |
| Insertion loss | dB | ≤0.25 | ≤0.3 |
| Return loss | dB | ≥50 | ≥55 |
| Tensile strength | N/2min | ＞30 | |
| Work temperature | 0C | -40～+85 | |
| Repeatability | dB | ≤0.2 | |
| Repeated assembly | times | ≥10 | |
| Mate-demate | times | ≥500 | |
| Cable type | mm | 2.0×3.0 & 2.0×1.6 drop cable | |
| Product dimension | mm | 52*9*8.1 | |
Product Details
Features:
- Compatible with standard SC connectors;
- Field installable, cost effective, user friendly;
- PC, APC polishing optional;
- No electricity required;
- FTTH cable, fiber optic cable optional;
- Reliable durable and superior optical performance
- Low insertion loss and high return loss
- Stable capability and high reliability
- Excellent mechanical capability
| Standards | |
| Intermateability | Connectors are FOCIS Compliant with TIA/EIA 604- 3 (SC), FOCIS 10 (LC) |
| Approvals and Listings | Passed EIA/TIA 568-B.3 |
| Design and Test Criteria |
Telcordia GR-1209 and GR-1221 |
Package information :
10PCS/Blister box, 100pcs/inner box, 1000pcs/carton box
User manual
Finally, we can offer many kind of fast mechanical connectors which is quite popular at home and abroad, if any interested, please send us mail at sales@yingdapc.com.
