ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector

Place of Origin china
Brand Name YINGDA
Certification ISO
Model Number ESC250D/APC
Minimum Order Quantity 1000pcs
Price negotiable
Packaging Details 10pcs in blister box, 1000pcs in a carton box
Delivery Time 7 working days
Payment Terms T/T, Western Union
Supply Ability 1000000pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS/PBT Color Green
Fiber Type Single Mode G657A1 Ferrule APC Angle 8
Insertion Loss <0.5dB, Average 0.3dB Package 10pcs/box
High Light

APC Field Assembly Optical Connector

,

ESC250D Field Assembly Optical Connector

,

APC Field Attachable Connector

Leave a Message
Product Description

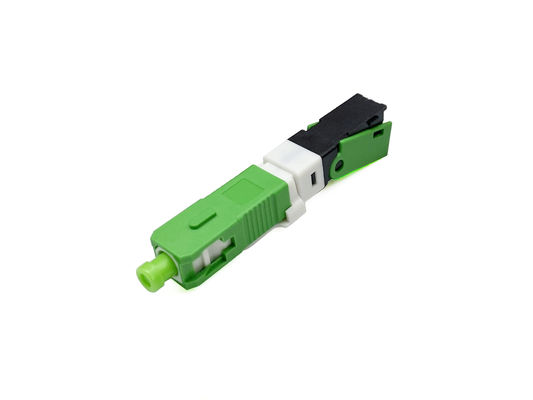

ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector



ESC250D/APC Field Assembly Connector FTTH for Drop Cable 2*3mm Green Optical Fiber Termination





The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installation optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this on-site assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.



Specification

Item Unit UPC APC
Model   ESC250D/UPC ESC250D/APC
Insertion loss dB ≤0.25 ≤0.3
Return loss dB ≥50 ≥55
Tensile strength N/2min >30
Work temperature 0C -40~+85
Repeatability dB ≤0.2
Repeated assembly times ≥10
Mate-demate times ≥500
Cable type mm 2.0×3.0 & 2.0×1.6 drop cable
Product dimension mm 52*9*8.1

ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector 0



Features

  • Linkage structure design, and equipment, connector connection, reserved micro-bend to remain unchanged;
  • Double V groove structure design, high stability and reliability of fiber connection;
  • Core structure: adopt the normally closed flexible locking structure, excellent optical performance;
  • Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.
  • Widely used in FTTH network

ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector 1

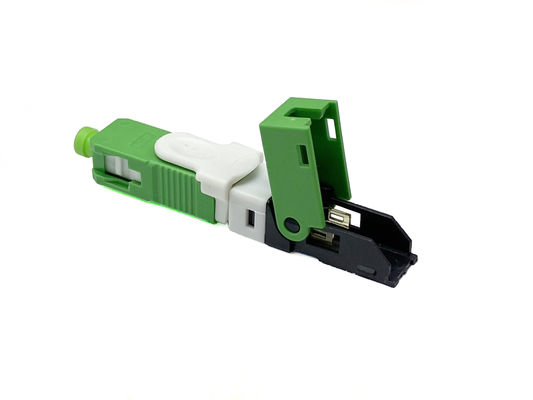

SC/APC fast connector, green color, white cilp to re-open and close the connector, square boot can be flip up and down.

ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector 2

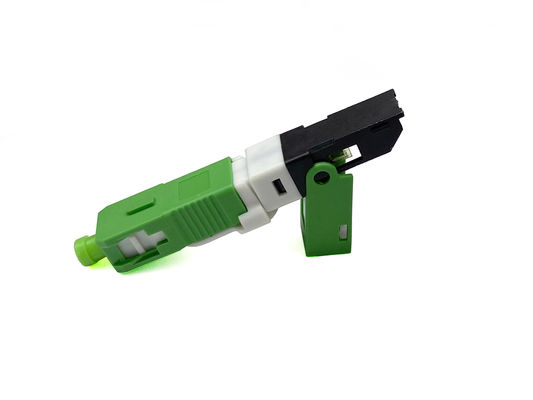

Linkage structure and 2 groove, square boot with white 2.0*3.0 mm/2.0*1.6mm drop cable holder;

ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector 3

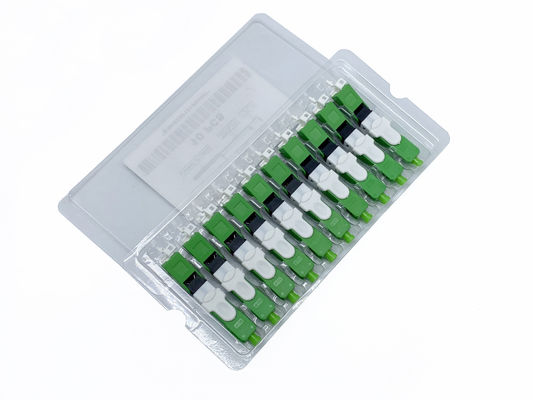

10pcs quick installation fast connector will pak in a blister box;

ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector 4

10pcs in a blister box with 1 sticker of fiber cutting length mark;

ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector 5

Each white box will with 1piece SC/APC Chinese and English user manual+1piece fiber cutting length;

10pcs blister box in a white cardboard box=100pcs/white box, then 10pcs white box=1000pcs/Carton box;



ESC250D APC Field Assembly Optical Connector Green Field Attachable Connector 6
