5G LX58 SC UPC FTTX Field Installable Connector Fiber Optic Flat Cable Blue

Products

SFP Module

sales@yingdapc.cn

+86 18688982406

Contact Now

5G LX58 SC UPC FTTX Field Installable Connector Fiber Optic Flat Cable Blue

MOQ:	500PCS
Price:	0.19USD-0.72USD
Standard Packaging:	1pc /plastic bag, 10pcs/bigger plastic bag, then 100pcs/box, 1000pcs/ carton
Delivery Period:	5 working days after received your payment
Payment Method:	T/T or western Union
Supply Capacity:	500,000pcs per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

china

Brand Name

YINGDA

Certification

ISO SGS ROHS

Model Number

FMC-M-SM-SCP-APC-CD-MP (KG53)

Boot Type:

Screw

House Color:

Fiber Type:

Single Mode

Back Cover:

Black

Insertion Loss:

<0.3dB

Return Loss:

>45dB

Pack:

Plastic Bag And Box

Total Length:

V Groove Material:

Ceramic

Life Span:

500times

Product Name:

Sc Fiber Connector,sc Fiber Optic Connector,fiber Cable Connectors,field Installable Connector

Highlight:

FTTX Field Installable Connector

SC UPC Field Installable Connector

SC UPC fast connector fiber optic

Product Description

5G LX58 SC UPC FTTX Field Installable Connector Fiber Optic Flat Cable Blue

5G FTTx 0.3dB LX58 SC UPC Fiber Optic Fast Field Installable Connector Figure-8 Flat Cable Blue

The Field Assembly Connector are a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH expansion, it provide itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. SC, LC, or FC ST can be choose, and cater for 250um to 900um, and 2.0mm, 3.0mm diameter single mode. The ferrule can be PC or APC.

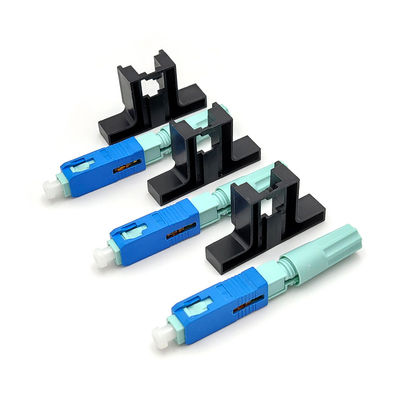

5G LX58 SC UPC FTTX Field Installable Connector Fiber Optic Flat Cable Blue 0

Techanical Specification

ITEM	Parameter
MODEL	FMC-M-SM-SCP-APC-CD-MP (KG53)
Length	58mm
Cable type	2.01.6MM, 2mm 3mm figure-8 drop cable
C-Groove structure	Ceramic
Insertion loss	the average ≤0.2dB, MAX≤0.4dB
Return loss	≥50dB UPC, ≥65db APC
Insertion loss	≤ 0.3dB (1310nm & 1550nm)
Return loss	≤ -45dB
Bare fiber strength	>5N
Clad strength	>10N
tension	>50N
Mechanical durability	IL ≤ 0.2dB & RL ≤ 5dB
Operating Temperature	5 ºC to +70 ºC
Repeat time	>50times
Length	53mm
Comply standard	IEC61754-4
Life span	30years

Pack Information:

1pc/plastic bag, 100pcs/inner box, 10pcs inner box/carton box

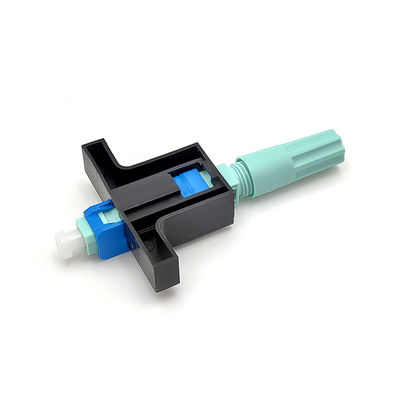

5G LX58 SC UPC FTTX Field Installable Connector Fiber Optic Flat Cable Blue 1

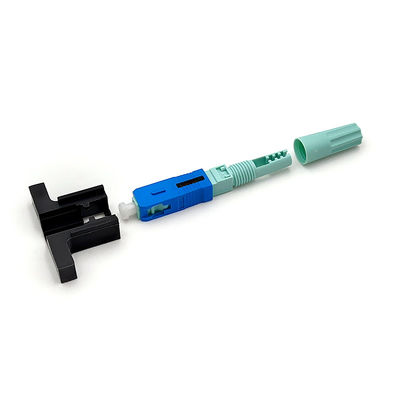

5G LX58 SC UPC FTTX Field Installable Connector Fiber Optic Flat Cable Blue 3

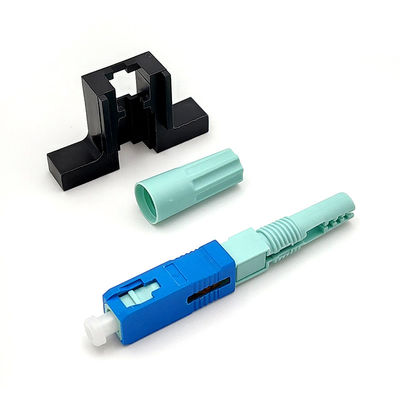

5G LX58 SC UPC FTTX Field Installable Connector Fiber Optic Flat Cable Blue 5

Fast Connector Structure:

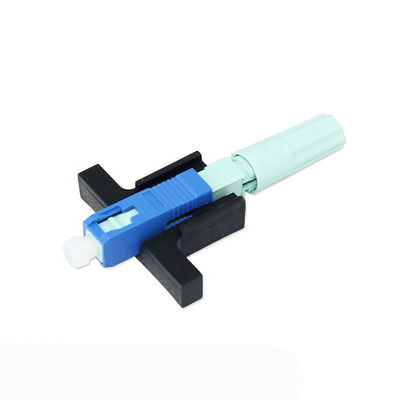

5G LX58 SC UPC FTTX Field Installable Connector Fiber Optic Flat Cable Blue 7

Application

Premise environments
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber / Home (FTTH) applications
Repair/replacement requirements
Equipment test leads

How to use the fast connectors?

Process the fiber

1. Insert the drop cable into the stripper till 50-60mm out, and strip the cable strength layer

2. Press the stripped cable into the clamp, there are 4points to lock the fiber

3. Strip the cable coating layer by the insert the longitudinal fiber stripper to strip the coating of the fiber. Or use Miller stripper align of the fiber clamp.

4. Check the fiber by bending about 60°into direction if ok

5. Clean the fiber with alcohol cloth by 0°wipe and 90°again

6. Put the clamp into the length fixer till arrow up, and press to the end

7. Lay flat on the fiber cleaver slot, align to the end, and then cut the fiber

8. Finally the fiber length will be :19.4mm and 29.4±0.1mm,see picture

5G LX58 SC UPC FTTX Field Installable Connector Fiber Optic Flat Cable Blue 8

Assembly

Check the black locker

Insert the fiber along with the V entrance till fiber bend, but not higher than 1mm than V entrance

Keep housing, coating, and jig on the same level, take off the switch.

5G LX58 SC UPC FTTX Field Installable Connector Fiber Optic Flat Cable Blue 9

Dis-assembly

Assemble the auxiliary jig,fit on switch to the right end

Unlock the fiber

Use the exclusive convex to open the cover, unlock the shell

Raise 15°to pull out the fiber

5G LX58 SC UPC FTTX Field Installable Connector Fiber Optic Flat Cable Blue 10
