Brand Name: | YINGDA |
Model Number: | FS-SCU-09-09B |
MOQ: | 100 PCS |
Price: | Negotiable |
Delivery Time: | 5 working days after got payment |
Payment Terms: | T/T or western Union |
Durable Field Installable Connector SC UPC APC SM SX For FTTH LAN ODF
Description

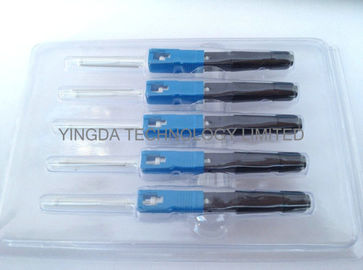

SC Fusion splice-on connector is is optical fiber type quick connector, but its splicing point inside
the connector end, equivalently eliminate the pigtails when splicing.The advantage is no need
additional protection after splice, such as splice tray,splice closure,distribution box. In contract
to the design of mechanical splice connector, it save V-groove mechanical connector aintenance
and operation cost and durable, which overturns the concept that high cost of splice machine
and do not apply to FTTH construction.
Features
Application
Specification
Item |
Parameter |
Cable |
3.1*2.0mm drop cable |
Fiber diameter |
125um(G657A2 bare fiber) |
Tight buffer diameter |
250um |
Fiber type |
Single mode OS1 9/125um |
Insertion loss |
≤0.3dB |
Return loss |
≤-50dB |
Bare fiber solid tightness |
>250g |
Working temperature |
-40℃-+80℃ |
Tensible strength |
60N(5kgs for 2mins) |
Drop test |
4 meters high cement floor direction at a time,in total 3times
|
* Please use the customized FTTH melting machine
* Recommended consumable:
Keep a supply of the following items
Order information
FS-XXX-XX-XXX
1- 2 -34
FS= fusion splice |
1 |
2 |
3 |
4 |
Connector type |
Fiber inside |
Applicable cable diameter |
House color |
|
SCU=SC/UPC SCA=SC/APC FCU=FC/UPC |
09=0.9mm 25=250um bare fiber |
09=0.9mm 20=2.0mm 30=3.0mm |
B=blue B=black G=green |
Fusion Splice-on Connector Instruction Steps
1. Preparation
2. Put heat-shrink tube housing and nut through into the fiber cable
3. Use flat-fiber stripper to strip the covering about 45mm
4. Use the fiber stripper to strip the fiber coating layer ad clean the fiber ,then place the optial fiber to the holder.
5. Cut the fiber by fiber cleaver
6. Place the assembled holder into the fusion splice machine
7. Strip the 0.9mm fiber coating layer
8. Clean the optical fiber and put it into the holder of fusion splicer machine
9. Cut the fiber by fiber cleaver
10. Put the holder into the fusion splicer machine
11. After the two holder tools ready, close the fusion machine,start fusion
12. After fusing,open the machine and take out the whole spliced-connector carefully
13. Insert the heat-shrink tube to the tail of the spliced-connector carefully, then put the whole spliced connector into the fusion machine and start heating up
14. Remove the connector from fusion machine after about 90s heating, and then cooling down for about 5s
to 10s.
15. Complete assembly
