5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable

5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable
5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable

Large Image :  5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: FMC-M-SM-SCP-APC-CD-MP (KG53)

Payment & Shipping Terms:

Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: 1pc /plastic bag, 10pcs/bigger plastic bag, then 100pcs/box, 1000pcs/ carton
Delivery Time: 5 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 500,000pcs per month
Detailed Product Description
Material: Plastic House Color: Green
Fiber Type: Single Mode Back Cover: Black
Insertion Loss: <0.3dB Return Loss: >45dB
Pack: Plastic Bag And Box Total Length: 53mm
V Groove Material: Ceramic Life Span: 500times
High Light:

mechanical splicer

,

FTTH connector

5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable





Sell point:



1.SC / APC, cover type, total length 53mm

2. Apply to 2mm* 3mm fiber drop cable

3.Ceramic C-groove structure not plastic or metal, good sealing performance, flame retardant

4. Insertion loss: the average ≤0.2dB, MAX≤0.4dB

5. Return loss: ≥50dB

6. No need epoxy or polished, field-installable, factory embedded fiber





Description



SC/APC Fiber Optic Fast Connector is designed for FTTH is a new generation of fiber connector

used in assembly. It can provide Open flow and Pre-cast type of products, whose optical and

mechanical specification meets the standard optical fiber connector.


It is designed for high quality and high efficiency for installation the structure of crimping position

is a unique design, and need not gluing, polishing neither any consumables. Adopting fiber

pre-installed structure, and convenient for field installation.





Specification



Type

Parameters

Insertion loss

≤ 0.3dB (1310nm & 1550nm)

Return loss

≤ -45dB

Bare fiber strength

>5N

Clad strength

>10N

Tension

>50N

Mechanical durability (500times)

IL ≤ 0.2dB & RL ≤ 5dB

Operating Temperature

5 ºC to +70 ºC



5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 0

Application

  • Premise environments
  • Connections at the desk for LAN environments
  • Patch panels
  • Direct equipment termination
  • Fiber to the Subscriber / Home (FTTH) applications
  • Repair/replacement requirements
  • Equipment test leads



Features

  1. Precise mechanical dimensions
  2. Low insertion loss, high return loss
  3. Comply standard of IEC61754-4
  4. Repeatable times is no less than 50 times;
  5. Long life span design, more than 30 years.
  6. Provide Open flow and Pre-cast type of products
  7. Adopting fiber pre-installed structure
  8. Convenient for field installation
  9. No epoxy or polishing required, easy assembly in the field
  10. Fiber termination can be reset, save time and energy ,reduce scrap
  11. No need special too, readily available

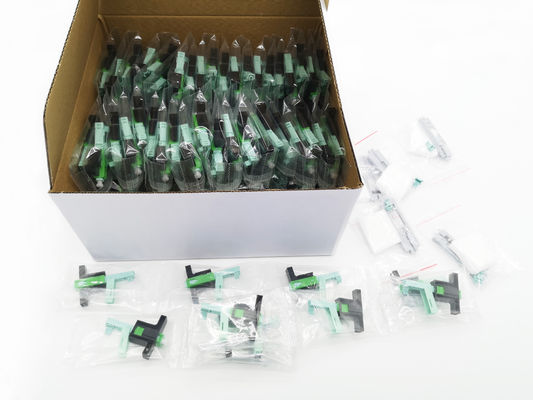

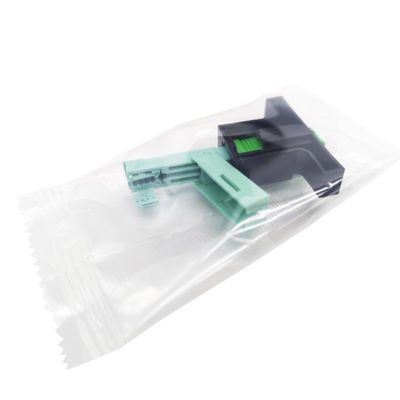

Pack Information:



1pc/plastic bag, 100pcs/inner box, 10pcs inner box/carton box



5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 15G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 2

5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 35G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 4

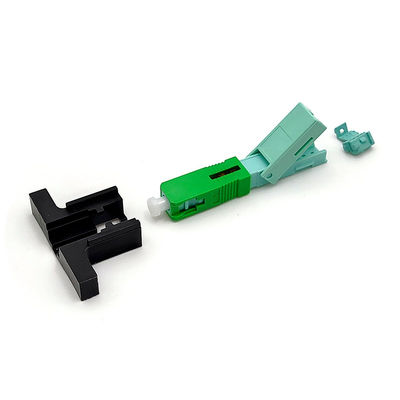

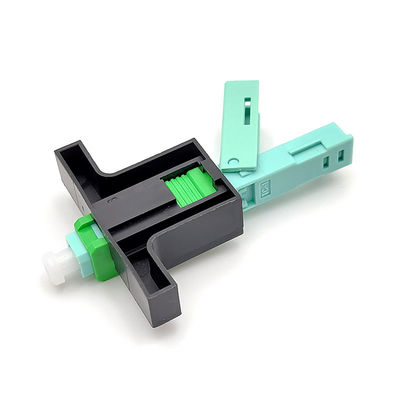

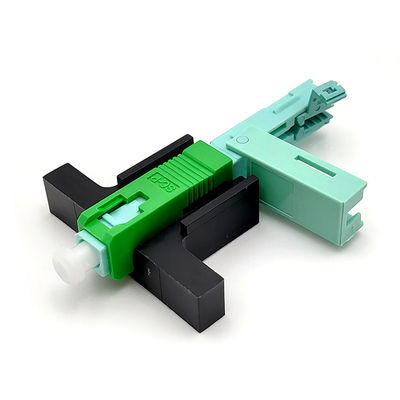

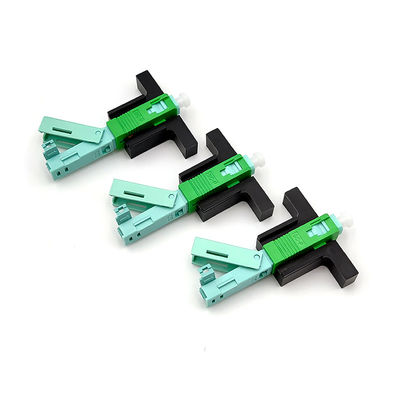

Product details:

5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 5

5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 6

5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 7

5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 8



English User Manual: 1pcs/100pcs inner box



How to use the fast connectors?



Process the fiber

1. Insert the drop cable into the stripper till 50-60mm out, and strip the cable strength layer

2. Press the stripped cable into the clamp, there are 4points to lock the fiber

3. Strip the cable coating layer by the insert the longitudinal fiber stripper to strip the coating of the fiber. Or use Miller stripper align of the fiber clamp.

4. Check the fiber by bending about 60°into direction if ok

5. Clean the fiber with alcohol cloth by 0°wipe and 90°again

6. Put the clamp into the length fixer till arrow up, and press to the end

7. Lay flat on the fiber cleaver slot, align to the end, and then cut the fiber

8. Finally the fiber length will be :19.4mm and 29.4±0.1mm,see picture

5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 9



Assembly

Check the black locker

Insert the fiber along with the V entrance till fiber bend, but not higher than 1mm than V entrance

Keep housing, coating, and jig on the same level, take off the switch.

5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 10



Dis-assembly

Assemble the auxiliary jig,fit on switch to the right end

Unlock the fiber

Use the exclusive convex to open the cover, unlock the shell

Raise 15°to pull out the fiber

5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable SC APC Connector 2*3mm Drop Cable 11
