ESC250D FTTH Field Installable Connector Single Mode G657A1 For Drop Cable
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

ESC250D FTTH Field Installable Connector Single Mode G657A1 For Drop Cable

Brand Name: YINGDA
Model Number: ESC250D
MOQ: 1000pcs
Price: 0.19USD-0.72USD
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO
Material:
ABS/PBT
Color:
Blue / Green
Fiber Type:
Single Mode G657A1
Ferrule:
UPC / APC
Insertion Loss:
<0.5dB, Average 0.3dB
Package:
10pcs/box
Product Name:
Fiber Connector,fiber Optic Connector,fiber Cable Connectors,field Installable Connector

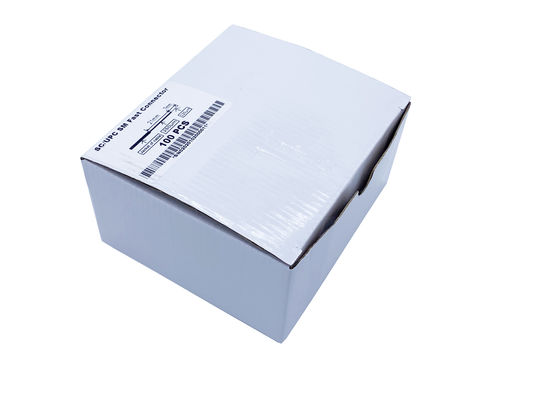

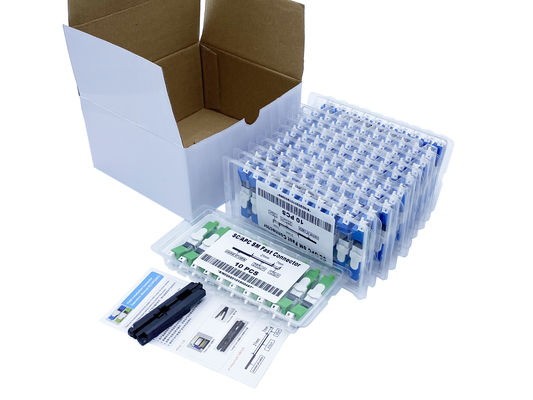

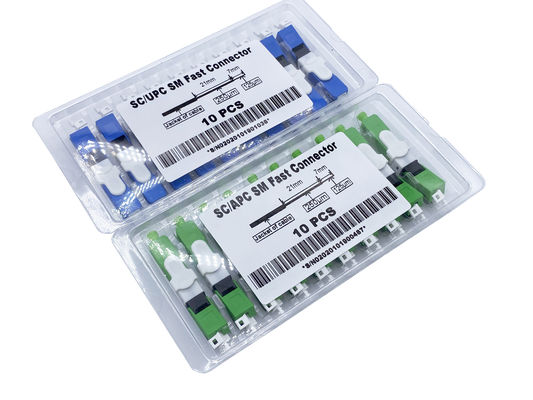

Packaging Details:
10pcs in blister box, 1000pcs in a carton box
Supply Ability:
1000000pcs per month
Highlight:

FTTH Field Installable Connector

,

ESC250D Field Installable Connector

,

FTTH Field Connector

Product Description

ESC250D FTTH Field Installable Connector Single Mode G657A1 For Drop Cable



ESC250D Fiber Optic Field Assembly Mechanical Connector FTTH for Drop Cable 2*3mm 2.0*1.6mm





Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installation optical fiber connector, no epoxy and no polishing, It incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule, it can improve the flexibility of optical wiring design  and reduce fiber termination time. It is a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.



Specification

Item Unit UPC APC
Model   ESC250D/UPC ESC250D/APC
Insertion loss dB ≤0.25 ≤0.3
Return loss dB ≥50 ≥55
Tensile strength N/2min ＞30
Work temperature 0C -40～+85
Repeatability dB ≤0.2
Repeated assembly times ≥10
Mate-demate times ≥500
Cable type mm 2.0×3.0 & 2.0×1.6 drop cable
Product dimension mm 52*9*8.1




Features

  • Linkage structure design, and equipment, connector connection, reserved micro-bend to remain unchanged;
  • Double V groove structure design, high stability and reliability of fiber connection;
  • Core structure: adopt the normally closed flexible locking structure, excellent optical performance;
  • Applied to 2.0mm × 3.0mm & 2.0mm × 1.6mm drop cable;
  • Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.
  • Widely used in FTTH network

ESC250D FTTH Field Installable Connector Single Mode G657A1 For Drop Cable 0

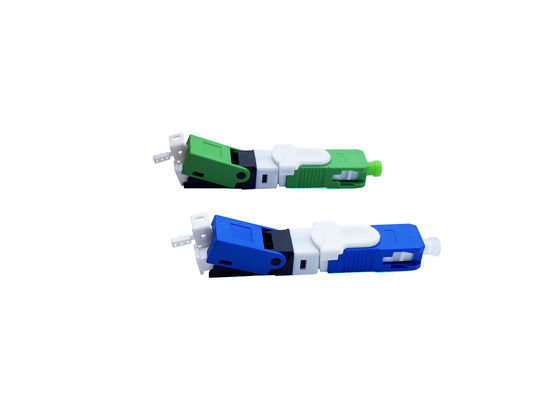

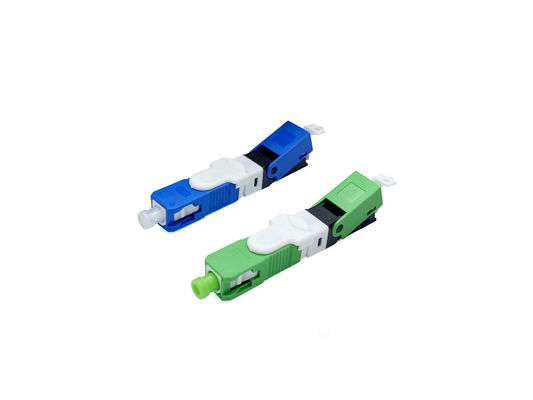

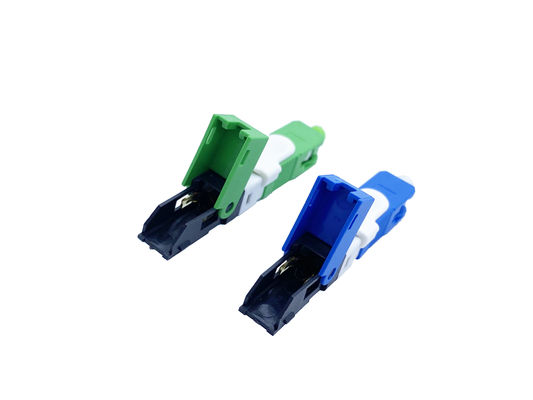

Product Details

ESC250D FTTH Field Installable Connector Single Mode G657A1 For Drop Cable 1ESC250D FTTH Field Installable Connector Single Mode G657A1 For Drop Cable 2ESC250D FTTH Field Installable Connector Single Mode G657A1 For Drop Cable 3ESC250D FTTH Field Installable Connector Single Mode G657A1 For Drop Cable 4ESC250D FTTH Field Installable Connector Single Mode G657A1 For Drop Cable 5ESC250D FTTH Field Installable Connector Single Mode G657A1 For Drop Cable 6



Finally, we can offer many kind of fast mechanical connectors which is quite popular at home and abroad, if any interested, please send us mail at sales@yingdapc.com.



ESC250D FTTH Field Installable Connector Single Mode G657A1 For Drop Cable 7
