SC UPC/APC/OM3/OM4 Connectors Duplex Fibre Optic Adapters for Fiber Optic Connections

MOQ: 100
Price: 0.04USD-2.15USD
Standard Packaging: Single item：10X10X10 cm
Delivery Period: 5-8days
Payment Method: D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity: 100000/month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Shenzhen，China
Brand Name
Yingda
Certification
ISO CE
Model Number
OM2/OM3/OM4
Products:
SC/apc Fiber Optic Adapter
Inner Core:
Ceramic Sleeve
Packing:
0.100 Kg
Fiber Type:
SM/MM/OM3/OM4
Polishing:
200~600G
Structure:
Square Type
Inner:
Ceramic
Sample:
Yes
Use:
FTTH/FTTx
Jacket Type:
Jacket Type
Adapter Structure:
SC-SC
Product Name:
Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette
Highlight:

OM3 Fibre Optic Adapters

,

SC-SC Fibre Optic Adapters

,

Duplex Fibre Optic Adapters

Product Description

Description


Fiber optic adapter, which is a removable (movable) connection between the optical fiber and the optical fiber, is a device that buttresses the two end faces of the optical fiber in order to maximise the coupling of the optical energy output from the transmitting fiber to the receiving fiber and minimise the impact on the system by intervening in the optical link.

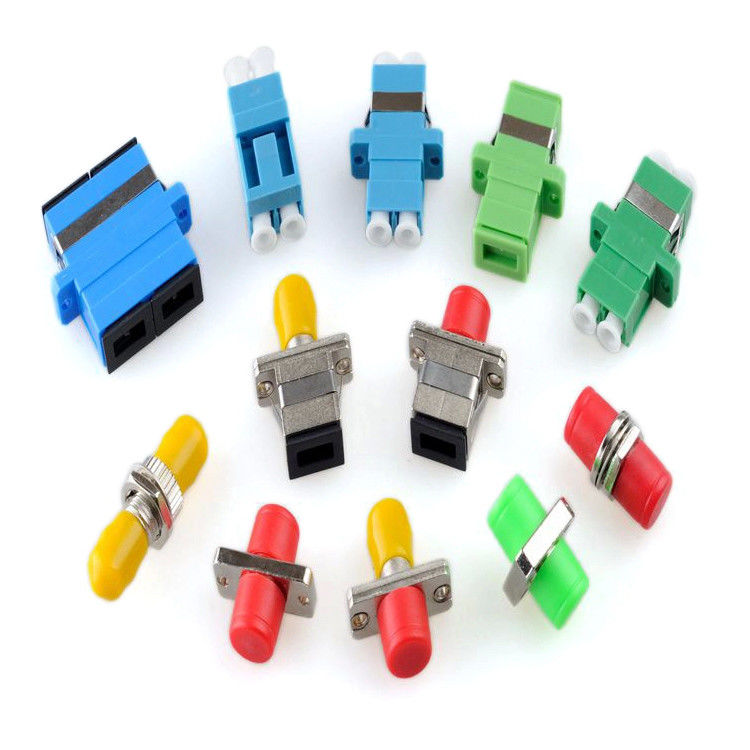

SC UPC/APC/OM3/OM4 Connectors Duplex Fibre Optic Adapters for Fiber Optic Connections 0

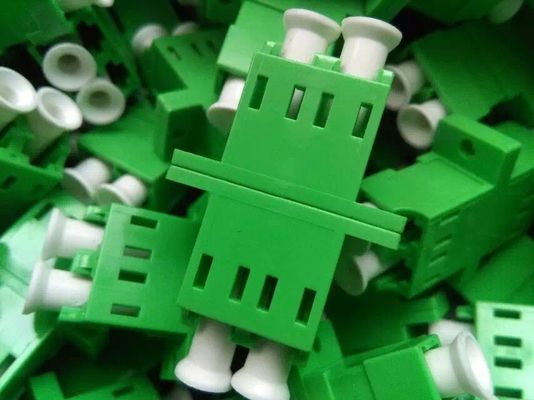

SC UPC/APC/OM3/OM4 Connectors Duplex Fibre Optic Adapters for Fiber Optic Connections 1

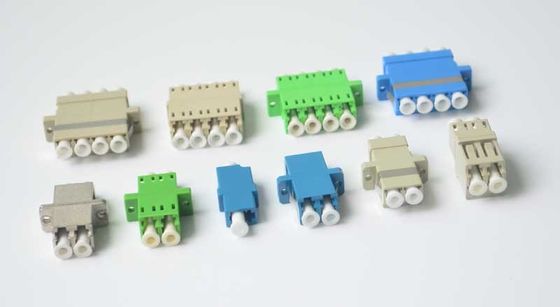

SC UPC/APC/OM3/OM4 Connectors Duplex Fibre Optic Adapters for Fiber Optic Connections 2

Lead time

Quantity (pieces) 1-50 51-500 501-1000 ＞1000
lead time (days) 1 3 5 to be negotiated


Product Type: Fiber Optical Couplers
Coupler Type: Female to Female
Connectivity: Technology SC
Cable Type: Fiber Optic Compatible Devices Compatible Devices Server
Insertion Loss:≤0.2dB
High Interchangeability:≤0.25db
High Repeatability:≤0.15db
Operating Temperature:-20～70℃

The SC to SC Coupler is a small device designed to mount in standard rectangular cut out style panels, and It can be used to link Optical Fiber cables or fiber connectors between two Optical Fiber Lines. The Coupler features a low insertion loss and durability with an anti-fungus plastic for the humid environment and features a dust cap to protect the fiber installation from debris and other contaminants that can ensure the optical functionality. It can widely used in Server Rack, Patch Panel, Optical Distribution Frame (ODF), CATV, optical fiber broadband access network, etc.
