AOC Cable
Created with Pixso. 850nm 40G QSFP+ To 4 X 10G SFP+ AOC Active Optical Cable 5m OM3 8cores Module Sfp To Sfp Cable
Name
  • Name
  • Name
  • Name
  • Name

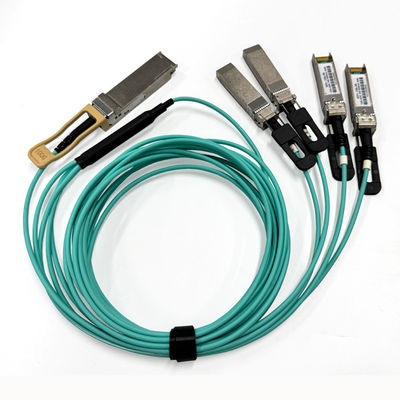

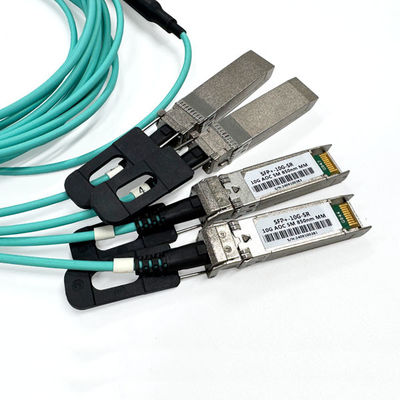

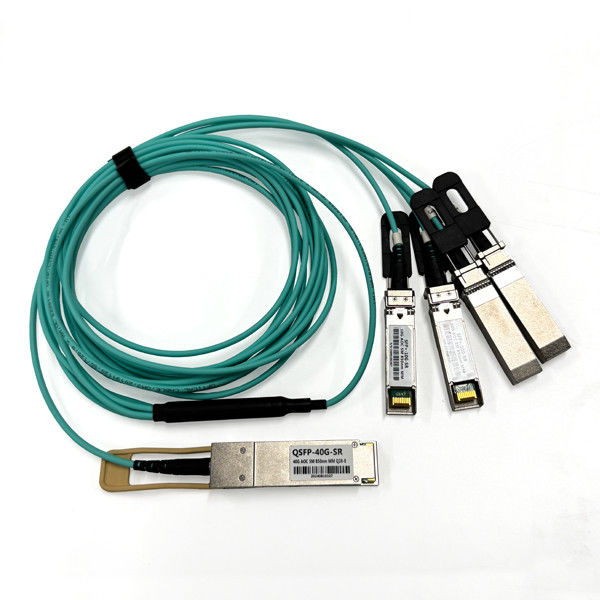

850nm 40G QSFP+ To 4 X 10G SFP+ AOC Active Optical Cable 5m OM3 8cores Module Sfp To Sfp Cable

Brand Name: YINGDA
Model Number: QSFP+-40G-AOC5M
MOQ: 1
Price: US$10-50
Delivery Time: 3-7 working days
Payment Terms: D/A,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ISO
Data Rate:
100Gbps
Length:
0.5-100meters Customized
Hot Pluggable:
Yes
Applications:
FTTH FTTB FTTX Network
Connector:
QSFP-40G-SR
Operating Temperature:
0°C To 70°C
Cable Type:
Active Optical Cable
Compliance Standards:
RoHS/CE/FCC
Product Type:
Fiber Optic Transceivers
Type:
QSFP-40G-SR
Data Transfer Rate:
40Gbps
Distance:
1m 2m 3m 5m 7m Up To 100m
Temp:
0~70
Supply Ability:
1000000per month
Highlight:

850nm AOC Active Optical Cable

,

4 X 10G SFP+ Active Optical Cable

,

40G QSFP+ AOC Active Optical Cable

Product Description

Description


850nm 40G QSFP+ AOC to 4 x 10G SFP+ active optical cable is a 10Gbps solution to 10G Ethernet, and datacenter.The integrated cable transmits 10Gbps data in each direction over MMF with distance up to 100m. The AOC is SFP+ MSA compliance, low power consumption and lightweight.
 AOC is a family of next-generation active optical cables specifically for use between SFP+ ports. Based on vertically integrated array technology and designed with SFP+ connectors, the SFP+ AOC is lighter and more flexible than comparable copper SFP+direct attach cables (DAC).The primary application is inter-rack and intra-rack connections within a data center environment.

, SR 5m 8 Cores



Technical Parameter


Product Model QSFP+-40G-AOC5M
Transmission rate 40G
Transmission distance 1-100m (optional)
Packaging form

QSFP+ to QSFP+
Cable Type OM2&OM3&OM4 (optional)
Brand YINGDA
Compatible with brand Extreme, Intel, Huawei, Cisco, HP, H3C, etc
Operating temperature 0~70℃
Power less than 1.5W – 0.5W
Cable material LSZH (OFNR)
Minimum bending radius 7.5mm



Features

  • Low power consumption <0.35W per end
  • Electrical interface compliant to SFF-8431
  • Up to 300m on OM3 MMF
  • 850nm VCSEL transmitter, PIN photo-detector receiver
  • Operating case temperature 0 °C to +70°C
  • 3V power supply voltage
  • RoHS 6 compliant
  • Hot Pluggable SFP+ form factor
  • Good EMI performance
  • Length:1m / 2m / 3m / 4m / 5m / 7m /10m / 20m / 30m / 50m / 100m



Multiple Lengths Support Customization

Meet your various needs and arrange wiring reasonably for detailed customization process.

Support OEM print service.

850nm 40G QSFP+ To 4 X 10G SFP+ AOC Active Optical Cable 5m OM3 8cores Module Sfp To Sfp Cable 0850nm 40G QSFP+ To 4 X 10G SFP+ AOC Active Optical Cable 5m OM3 8cores Module Sfp To Sfp Cable 1


Compatible Brands


Widely compatible with fiberoptic equipment from brands, such as HP,CISCO,ARISTA and HUAWEI ect.


850nm 40G QSFP+ To 4 X 10G SFP+ AOC Active Optical Cable 5m OM3 8cores Module Sfp To Sfp Cable 2


*Suitable for devices of the above brands with built-in SFP interfaces




Application


• Switch / router / HBA / SAN, NIC card

• Servers and storage devices

• Data center network


• 4G and 8G Fiber Channel

• InfiniBand FDR/EDR

• 100Gbs Ethernet



Questions & Answers


Q : What cables lengths does YINGDA offer for 100G QSFP28 to 4x25G SFP28 Active Optical Cable ?

A: We offers 100G QSFP28 to 4x25G SFP28 Active Optical Cable in 1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 25m, 30m, 50m and inquiries for customized length are also welcomed.


Q: Can I get a free sample?
A: We can refund you sample cost after you make a formal order

Q: We are new in this fiber optic fields,can you help me and recommend me some items?
A: Yes,of course.it is our pleasure to help you with it. You only need to offer us more details about your application.

Q: What is your MOQ?
A: No MOQ for any sample test,at least 10pcs/models after sample order.

Q: OEM,ODM Service is available?
A: Yes,PACBTECH have strong ability to offer customers ODM&OEM products of highest quality. And it will requirement about your quantity.

Q: For Trade Terms,such as payment and leadtime.
A: Payment Terms:We mainly support T/T bank transfer,Paypal and Western Union
Price Terms:EXW,FOB Shenzhen,CIF
Shipping Methods: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
Leadtime: Sample order,3-7work days; Bulk order 15-25work days(after your payment )
