48 Cores Optical Fiber Jumper Distribution Patch Cord Fanout With LC APC

Name: 48 Cores Optical Fiber Jumper Distribution Patch Cord Fanout With LC APC
Brand: YINGDA TECHNOLOGY LIMITED
SKU: YDPC-LCA-LCA-48A1-015P
Price: 14.36 USD
Availability: InStock

Brand Name:	yingda
Model Number:	YDPC-LCA-LCA-48A1-015P
MOQ:	1pc
Price:	0.36USD-30USD
Delivery Time:	5days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO,CE,SGS

Fiber Count:

48core

Connector Type:

LC APC

Sub Unit Diameter:

2mm

Fiber Type:

G657A1

Fiber Mode:

Single Mode

Cable Length:

15meter

Fanout Length:

1.2meter

Cable Jacket:

PVC Material

Insertion Loss:

<0.3dB

Return Loss:

>60dB

Product Name:

Fiber Cable,fiber Optic Patch Cables,fiber Optics Patch Cords,fiber Optic Jumpers,fiber Optic Jumper Cables,fiber Optik Patch Cord

Packaging Details:

1pc/bag

Supply Ability:

10000pcs/month

Highlight:

48 Cores Optical Fiber Jumper

G657A1 Optical Fiber Jumper

G657A1 FTTH Patch Cord

Product Description

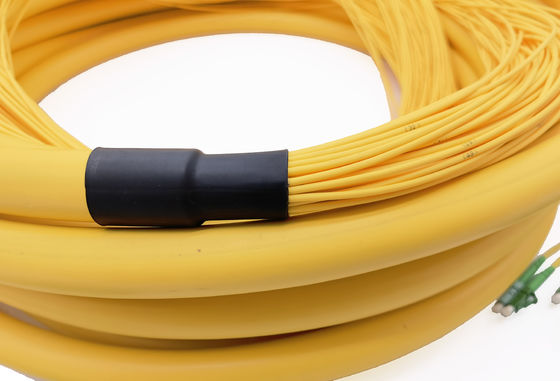

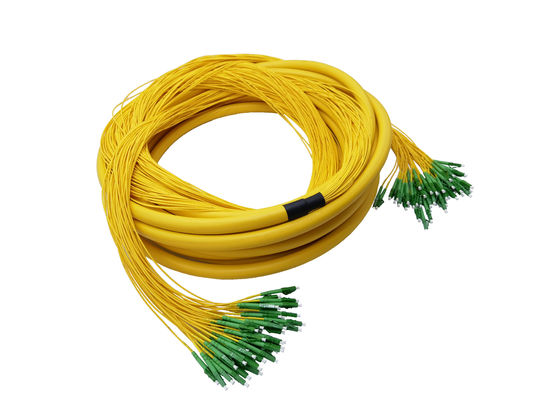

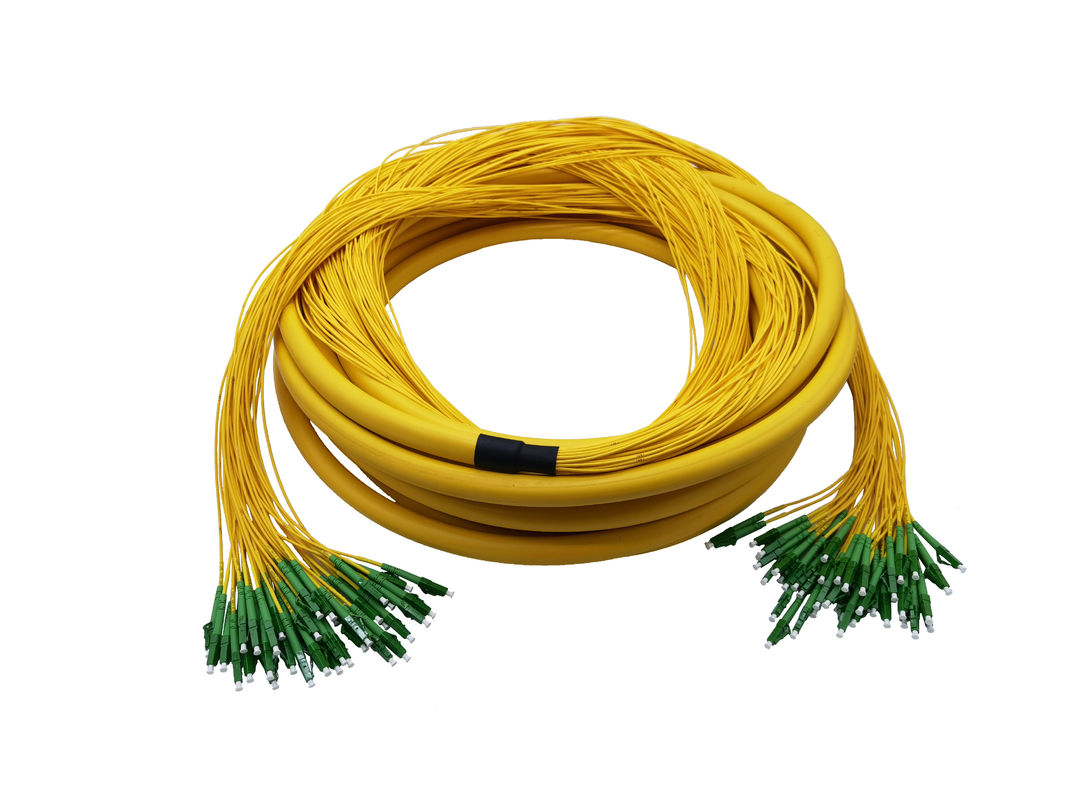

48 Cores Optical Fiber Jumper Distribution Patch Cord Fanout With LC APC

48 Cores Fiber Optic Distribution Patch Cord Fanout with LC/APC Single mode 2.0mm Breakout Jumper

Pre-terminated Patch cable is called Bunch/Distribution patch cable or Mini breakout patch cable. It’s suitable for laying in buildings, primarily in cable conduits and cable trays for direct connector assembly with no need for splice connectors.

48 Cores Optical Fiber Jumper Distribution Patch Cord Fanout With LC APC 0

48 Cores Optical Fiber Jumper Distribution Patch Cord Fanout With LC APC 1

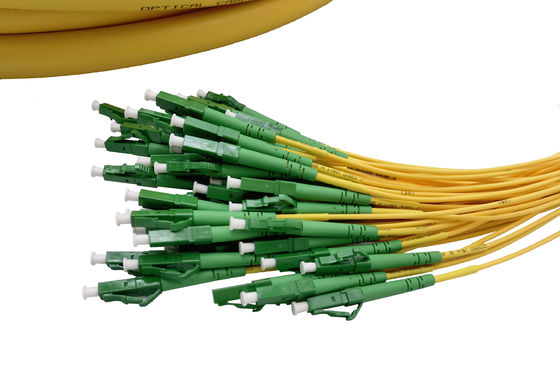

LC/APC 48Core Breakout Jumpers

LC/APC connector at both ends will be protected by plastic bag firstly, then wrap together with the main cable.

Test Report for each patch cord will be wrap inside.

48 Cores Optical Fiber Jumper Distribution Patch Cord Fanout With LC APC 2

Connector’s Standards:

Telcordia GR-326, IEC61300, IEC61300-2, IEC61754-20, ROHS and UL94 V0, etc.

Fiber Optic Patch Cable Features

100% pre-terminated and test in factory to ensure transfer performance.
Rapid configuration and networking, reduce installation time.
Supports 40G and 100G network applications.
Low insertion loss and added loss.
RoHS and REACH materials compliant.
End-face geometry and quality superior than IEC and Telcordia standards.
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.

Optical Specification

Connector	LC/APC	Jacket OD(mm)	22mm
Fiber mode	9/125um	Jacket color	yellow
Polish method	APC	Wavelength	1310/1550nm
Cable type	Multi-fibers breakout 2.0mm unit cable	Jacket material	PVC
Insertion loss	≤0.3dB (IEC grade C)	Insertion loss	≤0.12dB (IEC grade B)
Return loss	SM APC≥65dB(min)	Interchangeability &vibration	≤0.2dB
Operating temperature	-40~+75°C	Storage temperature	-40~+85°C

End-face quality (Single mode)

Zone	Range (um)	Scratches	Defects	Reference
A:core	0-25	none	none	IEC61300-3-35:2015
B:cladding	25-115	none	none
C: adhesive	115-135	none	none
D:contact	135-250	none	none
E: rest of ferrule		none	none

48 Cores Optical Fiber Jumper Distribution Patch Cord Fanout With LC APC 4

48 Cores Optical Fiber Jumper Distribution Patch Cord Fanout With LC APC 5

48 Cores Optical Fiber Jumper Distribution Patch Cord Fanout With LC APC 6

Order information -YDPC-A-B-FCFT-CLS

YDPC

Connector A

Connector B

FC=Fiber count

FT=Fiber type

CL=cable length

S=Cable sheath

YD=yingda

PC=patch cord

PG=pigtail

LCA=LC/APC

LCU=LC/UPC

SCA=SC/APC

SCU=SC/UPC

E2A=E2000/APC

E2U=E2000/UPC

...

XXX=null

LCA=LC/APC

LCU=LC/UPC

SCA=SC/APC

SCU=SC/UPC

E2A=E2000/APC

E2U=E2000/UPC

...

XXX=null

01=simplex

02=duplex

04=4core

06=6core

12=12core

24=24core

...

2D=G.652D

A1=G.657A1

A2=G.65A2

B3=G.657B3

M1=OM1

M2=OM2

M3=M3

M4=OM4

M5=OM5

...

001=1meter

002=2meter

...

015=15meter

...

120=120meter

...

P=PVC

L=LSZH

O=OFNR

For example:

48core breakout patch cord 15meters PVC with LC/APC 2mm connectors YELLOW

Part no.: YDPC-LCA-LCA-48A1-015P

Yingda can offer all kinds of patch cord for different application such as armored patch cord, waterproof patch cord, FTTH patch cord, FTTA patch cord, outdoor patch cord, etc. If any inquiry, please contact us:

Any time at your service!
