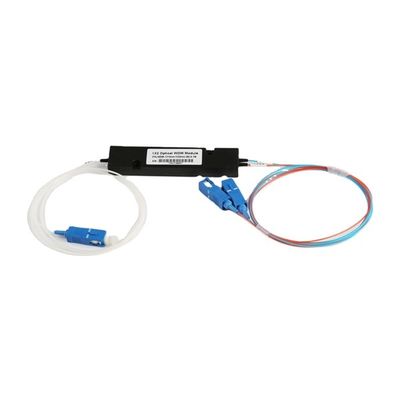

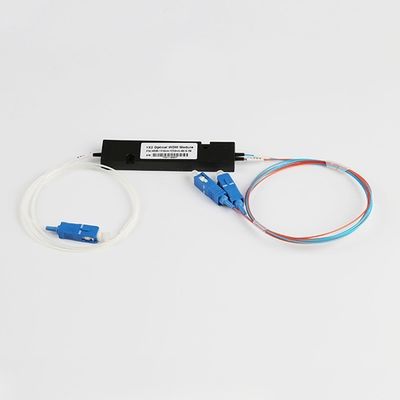

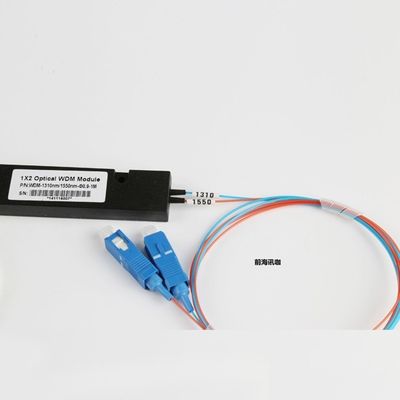

ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable
  • name
  • name
  • name

ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable

MOQ: 100pcs
Price: 1.1USD-4.58USD
Standard Packaging: 1pc/box, 10pcs/master box
Delivery Period: 7days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 20000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
Yingda
Certification
ISO
Model Number
FWDM 1X2-SC UPC 0.9mm ABS
Reflection:
1310/1490nm
Transmition:
1550nm
Connector Type:
SC/UPC SC/APC
Fiber Type:
SMF-28e
Package:
Blister Box, 1pc/ Box
Highlight:

1*2 WDM Module

,

1*2 FWDM Coupler

,

ABS Module WDM

Product Description

FWDM device s based on environmentally stable Thin Film Filters technology. The flitter wdm device combines or separates light at different wavelengths in a wide wavelength range.


Features

Low insertion loss

High isolation

High stability and reliability


Application

Fiber laser

Fiber amplifier

Testing equipment


The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range.
It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive optical transfer solutions etc.



Specification


Parameter FWDM  4/35 FWDM  5/35 FWDM  35/5
Pass Band Wavelength Range (nm) 1480~1500 1540~1560 1260~1360 & 1480~1500
Reflection  Band1 Wavelength Range (nm) 1260 ~ 1360 1260 ~ 1360 1540~1560
Reflection  Band1 Wavelength Range (nm) 1540~1560 1480~1500
Insertion Loss (dB) Reflect Channel ≤0.6
Pass Channel ≤0.8
Pass Band Rippler(dB) <0.3
Isolation (dB) Reflect Channel > 15
Pass Channel >30
Insertion Loss Temperature Sensitivity (dB/℃) <0.005
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion (ps) <0.1
Directivity (dB) >50
Return Loss (dB) >50
Maximum Power Handling (mW) 500
Operating Temperature (℃) -20 ~+70
Storage Temperature (℃) -40 ~+85
Package Dimension (mm) 1. Φ5.5 x L34(for 900um Loose tube)


2. Φ5.5 x L30(for bare fiber )

3. L90xW20xH9.5(for 2.0/3.0mm Cable)


NOTE:

For device with connectors, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.



Package information:




ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable 0

ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable 1

Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

M
M*y
Chile May 22.2025
trustpilot.com
Helpful (13)
The quality is very good, it is worth buying again, I have bought from this supplier many times, I believe you.
D
Danie Maritz
South Africa Aug 2.2024
Helpful (4)
best price and quality, excellent service
Review Image
N
N*n
France Oct 25.2023
Helpful (8)
Excellent product, good material quality! Easy to installtion, suitable for mini sc adapter and flat drop cable...
Tags:

1*2 FBT Coupler,

SC APC Fiber Optic Coupler,

Fiber Optic Coupler for WDM
