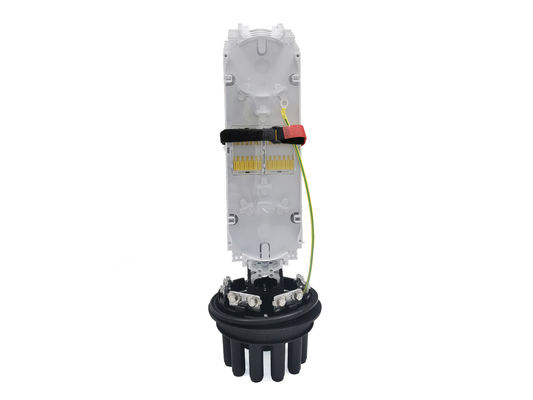

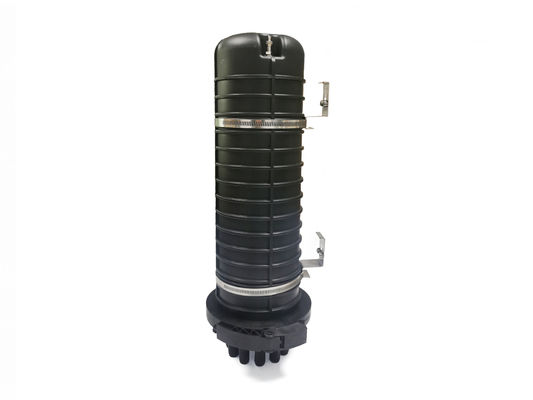

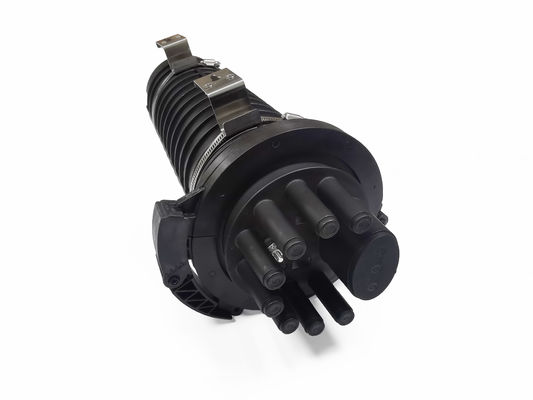

144 Cores Dome Fiber Optic Splice Cable Closure IP68 Heat Shrinkable Seal With Air Valves For Outdoor Underground
  • name
  • name
  • name

144 Cores Dome Fiber Optic Splice Cable Closure IP68 Heat Shrinkable Seal With Air Valves For Outdoor Underground

MOQ: 10 PCS
Price: Negotiable
Standard Packaging: 1pc / box, 6 pcs/ carton box
Delivery Period: 15 days after pay
Payment Method: T/T or western Union
Supply Capacity: 50,000pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO,SGS
Model Number
FOSC400B8 GJS-03H
Shape:
Dome Vertical Closure
Max Capacity:
144 Fibers
Cable Port:
1 Oval 8 Round Port Or 1 Oval 4 Round Port
Cable Diameter:
Φ10mm～Φ20 Mm
Material:
PP+GF Body + ABS Tray
Splice Tray Qty:
Max. 6 Pcs
Closure Dimension:
522*185mm
Weight:
3.8 Kgs
Carton Qty:
4 Pcs
Sealing Method:
Heat Srhinkable Tube
Waterproof Class:
IP68 Splice Closure
Tray Capacity:
24cores Single Fiber
Highlight:

IP68 Fiber Optic Splice Closure

,

Outdoor Underground Fiber Optic Splice Closure

,

144 Cores Fiber Optic Splice Closure

Product Description

(GJS-03H)FOSC400B8 Fiber Optic Splice Closure Joint Box



Features

  • Excessive fibers can be stored in storage baskets. Easy in fiber management.
  • Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.
  • Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.
  • The splice trays are hinged for access to any splice tray, without disturbing other trays.
  • The inner parts and fixing parts are made of stainless steel
  • With a earthing device protect it from damage by lightning
  • Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, hand hole, manhole)and in many applications(tap-off, expressed, branch, and repair)



Specifications



Model FOSC400B8
Max capacity 144 cores
Dimension 522*185mm
Tray quantity 6pcs
Tray capacity 24cores single fiber
Cable ports 1oval+8round ports
Cable diameter

8round ports available for cable dia. < 11.5mm;

1 oval port available for two pcs dia.≤ 20mm
Material

Dome & base :Modified P.P +GF

Tray: ABS
Sealing method Heat shrink seal
Waterproof grade IP68





Application

  • Underground, Aerial, Vault, Pole Mounting and Wall Mounting

144 Cores Dome Fiber Optic Splice Cable Closure IP68 Heat Shrinkable Seal With Air Valves For Outdoor Underground 0





Standard accessories

Dome, Base, clamp, O-ring,metal storage basket, Splice Tray,Heat shrink protective sleeve,buffer tube,Cable ties,Grounding wire, Labeling paper, Installation Manual, etc

144 Cores Dome Fiber Optic Splice Cable Closure IP68 Heat Shrinkable Seal With Air Valves For Outdoor Underground 1

1 set of Oval port closing kits:

Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper

(2.5 x30mm)+ branching clip etc



8 sets of Round port closing kits:

Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm)etc





Optional accessories

Hanging hook,Wall mounting(Duct mounting) kits,Pole Mounting kit,Grounding device,Air valve



144 Cores Dome Fiber Optic Splice Cable Closure IP68 Heat Shrinkable Seal With Air Valves For Outdoor Underground 2

----------------------------------------------------------------------------------------------------------------------------------------------------------------------



144 Cores Dome Fiber Optic Splice Cable Closure IP68 Heat Shrinkable Seal With Air Valves For Outdoor Underground 3

--------------------------------------------------------------------------------------------------------------------------------------------------------------------

144 Cores Dome Fiber Optic Splice Cable Closure IP68 Heat Shrinkable Seal With Air Valves For Outdoor Underground 4



Packing Method:

144 Cores Dome Fiber Optic Splice Cable Closure IP68 Heat Shrinkable Seal With Air Valves For Outdoor Underground 5



Actual Picture:



144 Cores Dome Fiber Optic Splice Cable Closure IP68 Heat Shrinkable Seal With Air Valves For Outdoor Underground 6

144 Cores Dome Fiber Optic Splice Cable Closure IP68 Heat Shrinkable Seal With Air Valves For Outdoor Underground 7
