Mini Type Dome Fiber Optic Splice Closure for 48 Fiber Cable Joint closure

48 core Vertical Dome Fiber Optic Closure Splice Box Fiber Optic Closures

The mini type dome fiber optic splice closure is suitable for fiber cable of 21mm and 34mm diameter. It can accommodate 48 fibers with 1 inlet and 3 outlet. The shell is made of high-strength engineering plastics, which has the characteristics of anti-aging, corrosion resistance, high and low temperature resistance, and high mechanical strength. The mini type joint box is popular among customers.

Waterproof Junction Box Outdoor Specification

Outdoor Junction Box Features

• The waterproof protection grade reaches IP 68.

• Support Aerial and wall-mounting.

• Small volume, big capacity Max.48cores  and convenient maintenance.

• The closure casing is made of quality engineering PC+ABS material, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.

• The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

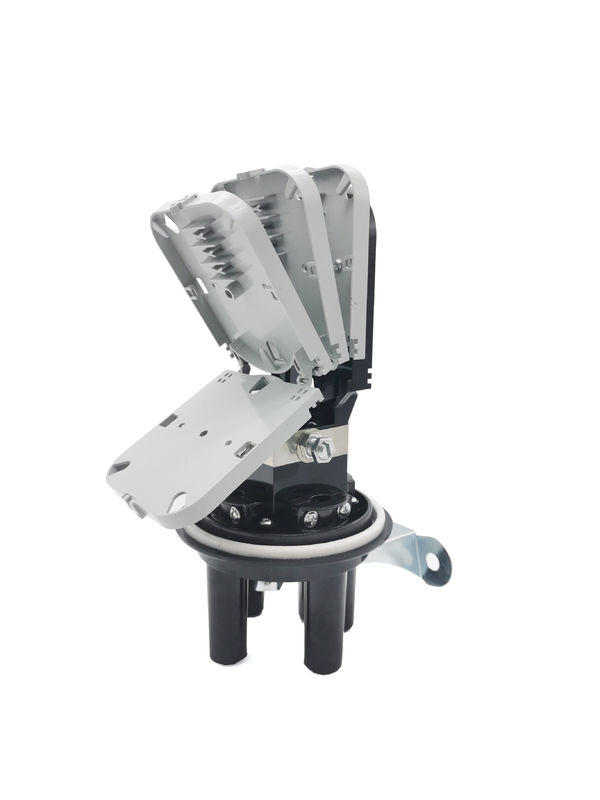

• The splice trays (FOST) inside the closure like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.

The splice closure is total closed with self-lock clamp, and IP68 waterproof ring, each cable port internal with metal screws and fixtures.

-------------------------------------------------------------------------------------------------------------------------------------------------------

Max. hold 4pieces splice trays, each tray hold 6fibers/layer, dual fiber 12cores,  maximum 48cores in total; The back fiber holding tray is fix on bottom with screws and large management area.

--------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------

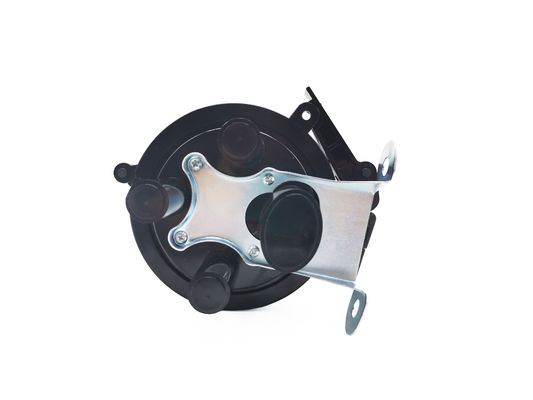

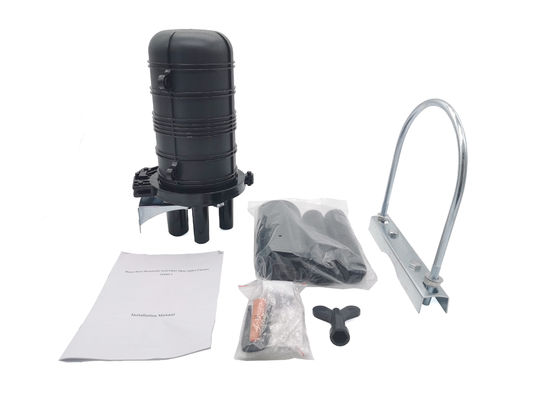

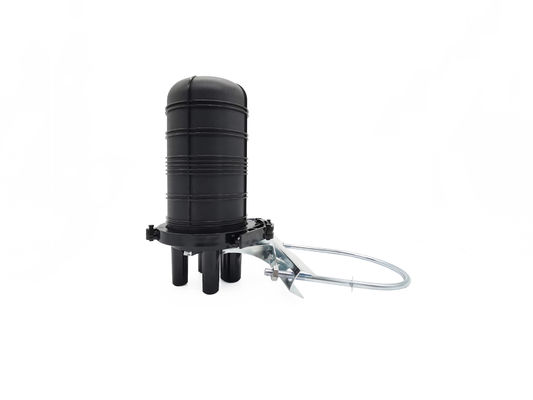

Fiber Enclosure Box Detail pictures:

FAQ

--How many ports inlets abd outlets does the joint box?

The joint box have 1 inlets and 3 outlets.

--What is the shell material of the splice closure?

The shell material of the joint box is made of PPR.

--What is the core count of the joint box?

The core number is 12,24,48.

--What's the sealing method of the fiber optic splice closure?

This splice closure adopts heat shrinkable sealing.

--What's the lead time?

Normal is 8-18 working days. Depends on your specific quantity.
