PP 96 Fibers Waterproof Pole Mount Fiber Optic Cable Splice Closure 1 Oval + 4 Round Ports
GJS-DR02A fiber closure synthesize many year’s experience of cable construction, which is very convenient for installation, maintain, operation, this dome splice closure conform the standard and relative regulations of communications industry of The People's Republic of China: YD/T814-1996.
Optical Fiber Splice Enclosure Features

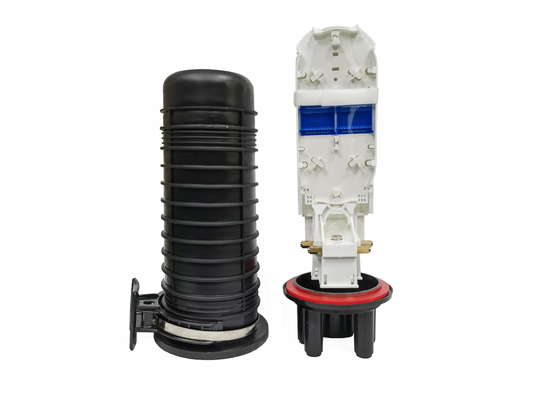

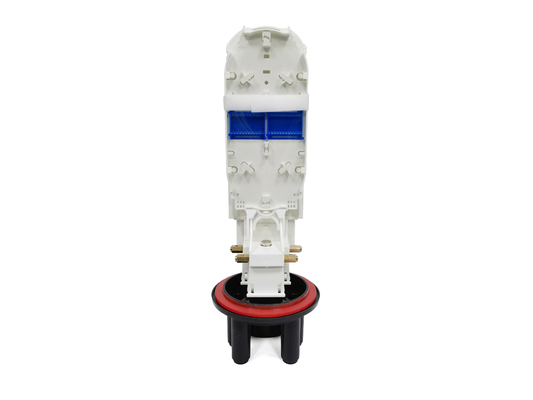

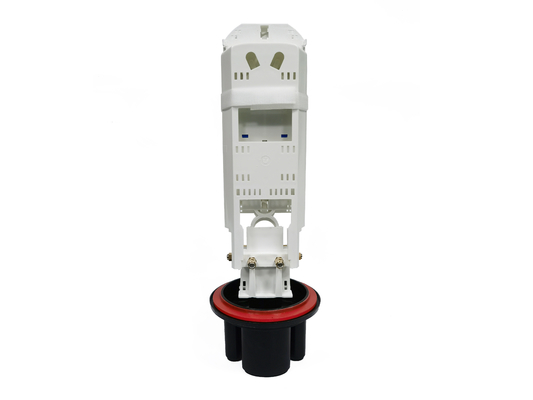

FOSC Fiber Optic Splice Box Specification
| Model | Cable ports | Qty of trays | Tray capacity | Cable diameter | Dimension (D*H) | Net weight |
| GJS-DR02A -A | 6 round ports | 4pcs | 12cores /24cores | φ8-φ20mm | 130*430mm | 2-3kg |
| GJS-DR02A -B | 1oval + 4 round ports | 4pcs | 12cores /24cores | φ8-φ20mm | 130*430mm | 2-3kg |
----------------------------------------------------------------------------------------------------------------------------------------------------
2 Kinds Closure Base

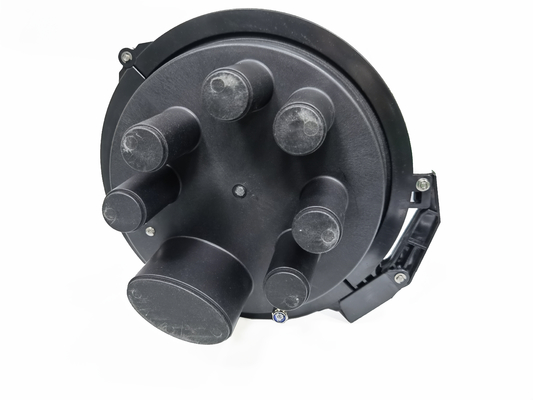

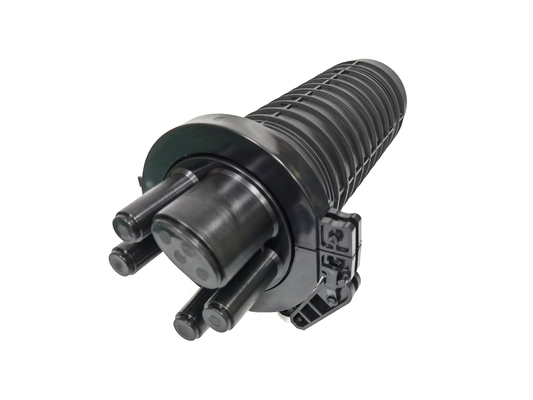

TYPE 1: 1 Oval port + 4 round port TYPE 2: 6 round port
------------------------------------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------------------------------
Fiber Optical Cable Closures Technical Parameters
| Environment |
Temperature: -30℃- +60℃ Atmospheric Pressure:70-106Kpa |
|
| Life Span | More than 25 years | |
| Material | High strength polypropylene(PP),which can assure any items of physical performance is excellent. | |
|
Sealing Performance
|
Pressurized up to 100Kpa±5Kpa into the sealed FOSC,then put the FOSC into the water 15minutes.There are no air bubbles. Or there is no change of air pressure within 24 hours. | |
| Re-entry performance |
Re-entry the FOSC 3 times as normal working condition,and pressurized up to 100Kpa±5Kpa into the sealed FOSC, then put the FOSC into the water 15minutes.There are no air bubble Or there is no change of air pressure within 24 hours. |
|
| Mechanical Character | Tensile Test | The axial tensile strength should be not less than 800N,and there is not any crack |
| Squeezing test | The FOSC can bear 2000N/m2 ,the lasting time is 1 minute.There is not any crack | |
| Impact test | The FOSC can bear 16N.M impact 3 times,there is not any crack. | |
| Bending test | The link part of cables and FOSC can bear 150N bending strength.The bending angle is ±450, repeat 10 times,there is not any crack. | |
| Torsion Test | The FOSC can bear 50N.m torsion.The torsion angle is ±90°,repeat 10 times,there is not any crack. | |
| Temperature Cycling Test | Pressurized up to 60KPa±5Kpa, the FOSC can bear temperature cycling from -40℃ to +65℃. Put the sample to the high temperature surrounding 2 hours, then 2 hours at room temperature, then 2 hours at low temperature, last return to room temperature 2 hours, repeat not less than 10 times cycling. The dropping of the air pressure not more than 5Kpa. Put the sample into the water for 15 minutes, there is not any bubbles. | |
| Voltage Resistance | Put the sealed closure into the 1.5m deep water for 24h.15kv direct current between the metal parts of both ends or between the earth and metal parts, there is no puncture and no flying-arc. | |
| Insulation Resistance | Put the sealed closure into the 1.5m deep water for 24h. The insulation resistance between the metal parts of both ends or between the earth and metal parts should be not less than 2×104MΩ. | |
Application
----------------------------------------------------------------------------------------------------------------------------------------------------
oval heat shrink tube, round ports heat shrink tube, buffer tubes, wrench, sand paper, nylon tie, clamps, heat shrink protection sleeve, number mark, grouding wire, etc.
|
|
