IP68 Optical Fiber Joint Enclosure Horizontal Inline 2In2out 36 Cores Round Type
  • name
  • name
  • name

IP68 Optical Fiber Joint Enclosure Horizontal Inline 2In2out 36 Cores Round Type

MOQ: 100 units
Price: Negotiable
Standard Packaging: 1pc / box, 10 pcs / carton box
Delivery Period: 7days after get payment
Payment Method: T/T, Money Gram, Western Union
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
GJS-F004
Dimension:
295×220×90
Cable Ports:
2 Cable Glands
Max Capacity:
36 Cores Bunchy Fiber Splice Enlcosure
Cable Diameter:
17.5MM
Tray No:
3 Pcs
Tray Capacity:
12F Per Tray
Material:
PP+GF
Color:
Black
Highlight:

IP68 Optical Fiber Joint Enclosure

,

Horizontal Optical Fiber Joint Enclosure

Product Description
36Cores Fiber Optic Closure Machinery Seal
Optical splice closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways:direct connection and splitting connection. They are applicable to situations such as overhead, man-well of pipeline, embedded situation etc. Comparing with terminal box, the closure requires much stricter requirement of seal.



36F Optical Fiber Joint Enclosure Features

  • The closure casing is made of quality engineering PP plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
  • The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment. The protection grade reaches IP68.
  • The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.
  • The closure is of small volume, big capacity and convenient maintenance.
  • The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.
MODEL GJS-F004
Dimension (L*W*D)
295×220×90mm
Max capacity 36 Cores
Splice tray qty 3 pcs
Splice tray capacity  12 fibers
Cable ports 2 cable glands
Cable diameter Φ17.5mm
Weight 1.55kg

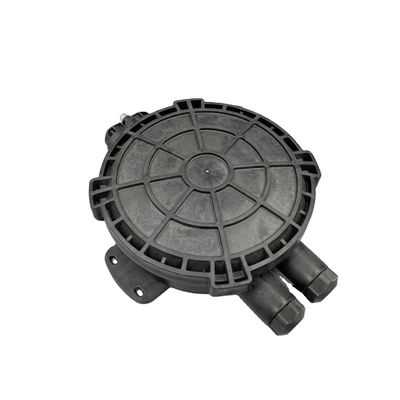

IP68 Optical Fiber Joint Enclosure Horizontal Inline 2In2out 36 Cores Round Type 0

IP68 Optical Fiber Joint Enclosure Horizontal Inline 2In2out 36 Cores Round Type 1

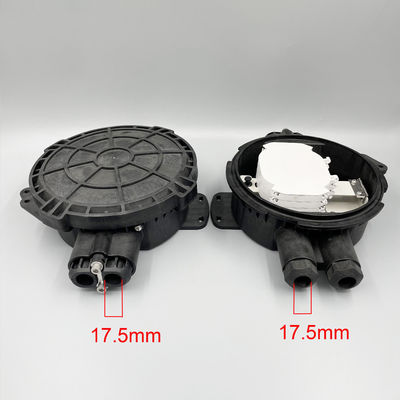

There are 2 cable glands with grommets inside, better protection, each port can hold maximum cable diameter:φ17.5mm

-----------------------------------------------------------------------------------------------------------------------------------------------------

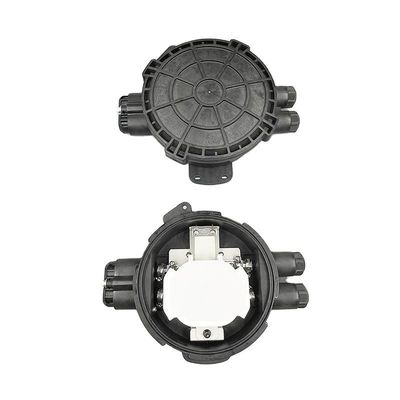

IP68 Optical Fiber Joint Enclosure Horizontal Inline 2In2out 36 Cores Round Type 2

Though ftth mini closure is small size, but large capacity to 96cores with 4trays overlapped, protection sleeve slots to 24pcs max.

For better protection, there can be velcro tape to make them together before delivery.

-----------------------------------------------------------------------------------------------------------------------------------------------------

Main component

No. Name of components Quantity Usage Remarks
1 FOSC cover 1 piece Protecting fiber cable splices in whole

Internal diameter:

205x146 (mm)
2 FOSC bottom 1 piece Fixing reinforced core, fiber cable and FOST

Internal diameter:

205x146 (mm)
3

Fiber optic splice tray

(FOST)

 max. 4 pieces (bunchy) Fixing heat shrinkable protective sleeve and holding fibers

Suitable for:

Bunchy:6,12,24(cores)
4 Integrated seal fitting 1 set Sealing between FOSC cover and FOSC bottom
5 Port plug 2 pieces Sealing empty ports
6 Earthing deriving device 1 set Deriving metallic components of fiber cable in FOSC for earthing connection. Configuration as per requirement.


Main accessories and special tools



No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve   Protecting fiber splices Configuration as per capacity
2 Nylon tie   Fixing fiber with protective coat Configuration as per capacity
3 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
4 Hanging hook 1 set For aerial use Configuration as per requirement
5 Fixing device 1 set   Configuration as per requirement
6 Earthing wire 1 piece Putting through between earthing devices To put through while required
7 Abrasive cloth 1 piece Scratching fiber cable
8 Labeling paper 1 piece Labeling fiber
9 Special wrench 1 piece Fixing octagonal nut (plastic)
10

Buffer tube



 To be decided by customers Hitched to fibers and fixed with FOST, managing buffer Configuration as per requirement
11 Desiccant 1 bag Put into FOSC before sealing for desiccant air.


Application

  • Aerial, underground, pipeline, handhole.
