Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Field Installable Connector
Created with Pixso. FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine

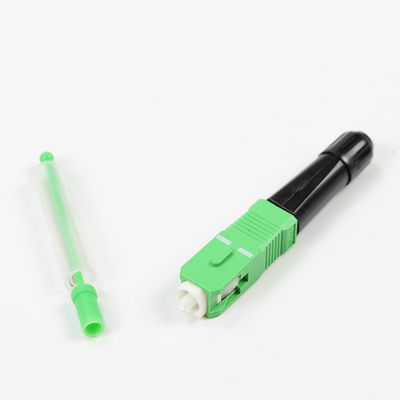

FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine
  • Name
  • Name
  • Name
  • Name
  • Name

FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine

Brand Name: YINGDA
Model Number: YDFOSC001-SC/APC
MOQ: 100 PCS
Price: 0.19USD-0.72USD
Delivery Time: 3-5 working days after get payment
Payment Terms: T/T or western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO
Fiber Type:
SMF-28e Corning Fiber
Cable Type:
0.9,2.0,3.0mm Cable
Connector:
SC /APC
Cable Mode:
Single Mode OS1
Connector House:
Green
Insertion Loss:
<0.3dB
Tools:
Fusion Splice Machine, Fiber Optic Stripper, Alcohol, Fiber Cleaver
User Manual:
Chinese Or English
Product Name:
Sc Fiber Connector,sc Fiber Optic Connector,fiber Cable Connectors,field Installable Connector
Packaging Details:
5pcs / blister box,1000pcs / carton box
Supply Ability:
10,000pcs per day
Highlight:

quick assembly connector

,

FTTH connector

Product Description

SC fusion splice-on connector is optical fiber type fast connector, but its splicing point inside the connector end, equivalently eliminate the pigtails when splicing. The advantage is no need additional protection after splice, such as splice tray, splice closure, or distribution boxes. In contract to the design of mechanical splicer, it save V-groove mechanical connector maintenance and operation cost and durable, which overturns the concept that high cost of splice machine and do not apply to FTTH construction.



Fusion Splice On Connector Features

  1. Low operation cost, high efficiency
  2. Quickly achieve the on-site termination connection
  3. Easy operation or use
  4. Pressure welding parts adopt new unique structure design, installation without glue injectino,
  5. no grinding, no consumables
  6. High installation quality, high success rate and installation fast, etc
  7. Easy to carry
  8. Accurate mechanical dimensions
  9. All materials conforms to ROHS



Fusion Splice On Connector Specification



Item

Parameter

Cable

3.1*2.0mm drop cable

Fiber diameter

125um(G657A2 bare fiber)

Tight buffer diameter

250um

Fiber type

Single mode OS1 9/125um

Insertion loss

≤0.3dB

Return loss

≤-50dB

Bare fiber solid tightness

＞250g

Working temperature

-40℃-+80℃

Tensible strength

60N(5kgs for 2mins)

Drop test

4 meters high cement floor direction at a time,in total 3times



* Please use the customized FTTH splice machine



* Recommended consumable:

Keep a supply of the following items

  • Denatured alcohol
  • Lint-free tissues
  • Cotton swab

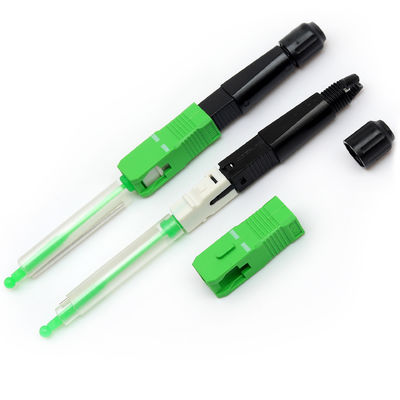

FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine 0

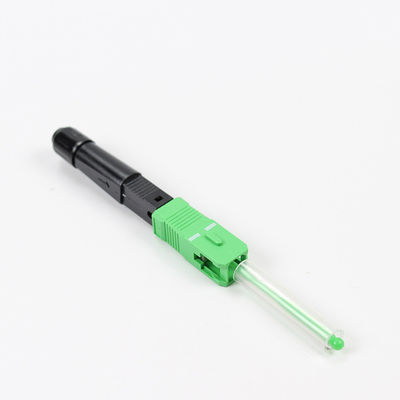

FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine 1FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine 2FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine 3FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine 4

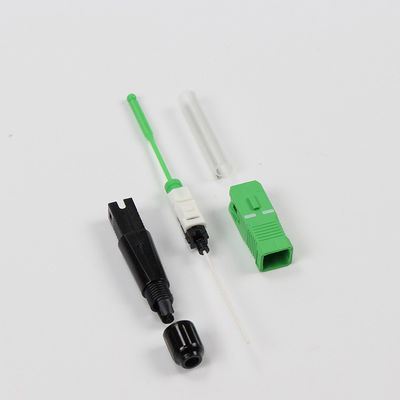

FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine 5FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine 6

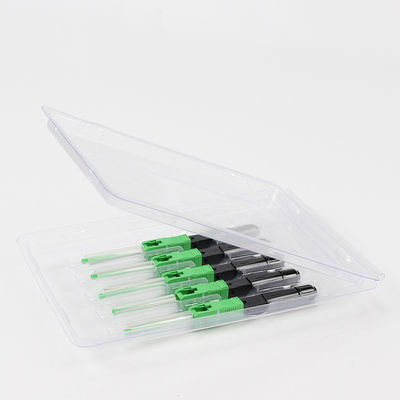

Fusion Splice On Connector Package information

FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine 7FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine 8FTTH SC FC FIC Field Installable Connector For Fusion Splicer Machine 9



Tags:

quick assembly connector

FTTH connector

mechanical splicer
