FTTH Field Mechanical Connector SC / UPC SM SX SC Fast Fiber Optic Connectors

FTTH Field Mechanical Connector SC / UPC SM SX SC Fast Fiber Optic Connectors

  • High Light

    quick assembly connector

    ,

    FTTH connector

  • Fiber Type
    SMF-28e Corning Fiber
  • Cable Type
    Drop Cable Or Indoor Cable
  • Connector
    SC/UPC, SC/PC
  • Cable Mode
    Single Mode OS1
  • Connector House
    Blue
  • Insertion Loss
    <0.3dB
  • Tools
    Cotton, Alcohol,fiber Cleaver
  • Application
    FTTH
  • User Manual
    English
  • Sample
    Ok
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    YDFIC-SC/UPC-1801
  • Minimum Order Quantity
    100 PCS
  • Price
    Negotiable
  • Packaging Details
    5pcs / blister box,1000pcs / carton box
  • Delivery Time
    3-5 working days after get payment
  • Payment Terms
    T/T or western Union
  • Supply Ability
    10,000pcs per day

FTTH Field Mechanical Connector SC / UPC SM SX SC Fast Fiber Optic Connectors

FTTH Field Mechanical Connector SC / UPC SM SX SC Fast Fiber Optic Connectors



Fast connector, also called field installable connector or quick assembly connector, is a good solution to the

field wiring operation and fiber to the home project. It is widely used in the construction site where need quick

and stable connection. Fast connection connector on site assembly don’t need curing and grinding, which

provides the engineers with more efficient help for the installation, maintenance, and repair.



The pre-embedded optical fiber and the core end face for the fast connector are designed to guarantee the

perfect quality of ceramic ferrule end face, effectively protect the user equipment interface damage, and

reduce the connection loss.



Specification

Type Parameters
Insertion loss ≤ 0.3dB(1310nm & 1550nm)
Return loss ≤ -40dB
Bare fiber strength >5N
Clad strength >10N
Tension >50N
Mechanical durability (500times) IL ≤ 0.2dB & RL ≤ 5dB
Operating Temperature

5 ºC to +70 ºC



Product details



1. sturcture view:

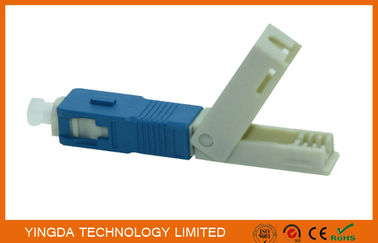

the boot is square, it can be 90degree up and after fusion, press it down to fix the cable.

FTTH Field Mechanical Connector SC / UPC SM SX SC Fast Fiber Optic Connectors 0FTTH Field Mechanical Connector SC / UPC SM SX SC Fast Fiber Optic Connectors 1

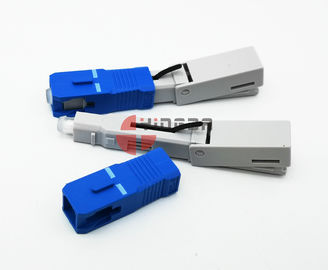

embedded fiber inside of the V-groove, and there is black re-open line for future  use.

FTTH Field Mechanical Connector SC / UPC SM SX SC Fast Fiber Optic Connectors 2FTTH Field Mechanical Connector SC / UPC SM SX SC Fast Fiber Optic Connectors 3



2. connector types:

SC/UPC - Blue house and white dust cap        SC/APC - green house and green dust cap

FTTH Field Mechanical Connector SC / UPC SM SX SC Fast Fiber Optic Connectors 4FTTH Field Mechanical Connector SC / UPC SM SX SC Fast Fiber Optic Connectors 5



3. Package information:

10 pcs / blister box, 1000pcs/ carton box, carton size: 48*34*23cm, gross eight: 6kg/carton box.

FTTH Field Mechanical Connector SC / UPC SM SX SC Fast Fiber Optic Connectors 6

Features

  1. It can be used as a single connector and attenuator
  2. It has embedded optical fiber and end face pre-grinding
  3. On-site installation, quick connection, easy operation
  4. No need glue, grinding or electrical tools, a kind of cold access
  5. High performance and reliability, convenient installation
  6. Mechanical and environmental performance in line with GR-326-CORE standard.

Application

  • Fiber optic cable distribution frame
  • Optical fiber network equipment
  • Fiber to the home
  • Cable television network

Order information

FIC-XX-XXX-XX-XX

FIC=filed

installable

connector

1

2

3

4

5

Connector

type

Polish

mode

Fiber type

Applicable

cable

House

color

SC

FC

SC

LC

ST

UPC

APC

SM=Single mode

MM=Multi mode

09=0.9mm

20=2.0mm

30=3.0mm

23=2.0*3.1mm

drop cable

B=Blue

B=black

G=green
