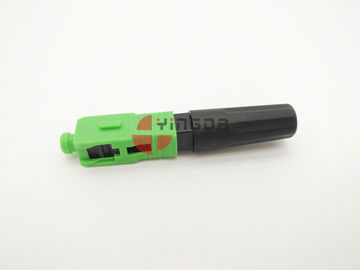

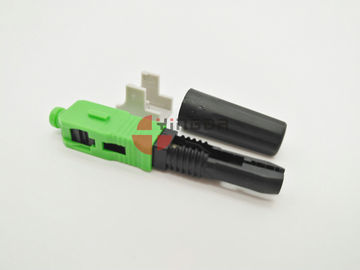

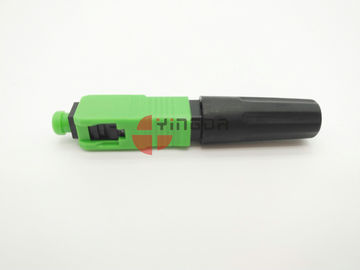

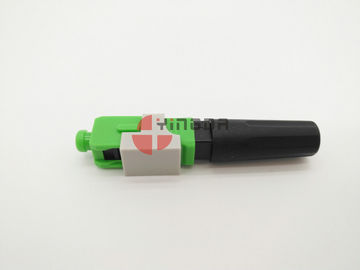

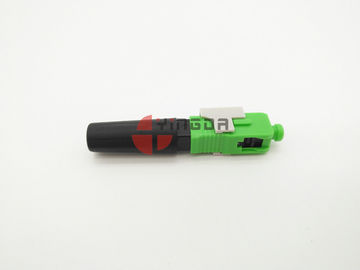

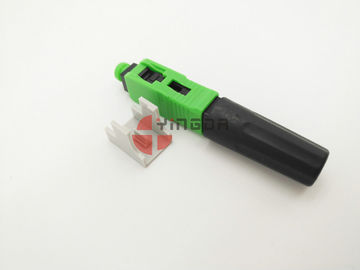

FTTH Fiber Optic Fast Connector SC/APC 2x3mm Drop Cable Mechanical Splice TIA/EIA 568A Standards
Fast field-installable connectors are factory pre-polished connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.
Fast connectors are compatible with 250µm and 900µm optical fibers, as well as 900µm, 2mm and 3mm cordage. All primary fiber types are supported, and each connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination.
Features
No epoxy required
Fiber can be reseated
Pre-stubbed, factory-polished ferrule
Precision mechanical alignment insures low loss
VFI can be used to confirm fiber is installed properly
Meets TIA/EIA 568A performance requirements
Meets TIA/EIA 604 (focis) connector interface requirements
Applications
Premise environments
Connections at the desk for LAN environments
Direct equipment termination
Fiber to the Subscriber (FTTx) applications
Repair and replacement requirements
Equipment test leads
Patch panels
Product details
Specification
| Item | Parameter |
| Single-Mode | |
| Insertion Loss | Max≤0.5dB , Average≤0.3dB |
| Return Loss | APC≥50dB;UPC≥45dB |
| Durability (1000 Mating) | 0.2dB Max. |
| Operating Temperature | -40°C~+75°C |
Mechanical performance requirements
| Test name | Test condition | Result | ||
| Insertion loss change | Return loss change | Outer appearance change | ||
| Repeat assembly | Repeat: 5imes | ≤0.3dB | ＜0.5dB | Can be reassembled and test, pin surface should be no obvious scratches, if insertion loss change is large than 0.3dB, qualified; the rest shall not have mechanical damage, deformation, crack, relaxation and other anomalies |
| Tensile strength | 0.125mm bare fiber 4N, 0.25mm fiber 4N,non-online monitoring optical performance; 0.9mm optical fiber type 10N, optical cable 20N, on-line monitoring optical performance; cable 30N, not online monitoring optical performance; Time: 2 minutes | ≤0.3dB | ＜0.5dB | |
| Drop test | Height: distance from the sample head 1.5m; times: 10 times | ≤0.3dB | ＜0.5dB | |
| Vibration | Frequency: 10 ~ 50Hz; sweep: 45 times per minute: amplitude: 0.75mm single amplitude; time: three directions, each two hours | ≤0.3dB | ＜0.5dB | |
| Repeatability | Mating:10times | ≤0.3dB | ＜0.5dB | |
| Mechanical durability | Mating:500times | ≤0.3dB | ＜0.5dB | |
| Retortion | Load: cable type 15N; rate: 10 times / min; times: 200 times | ≤0.3dB | ＜0.5dB | |
|
|
