Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Termination Box
Created with Pixso. FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex fiber box
Name
  • Name
  • Name
  • Name
  • Name
  • Name

FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex fiber box

Brand Name: YINGDA
Model Number: FTB0102
MOQ: 50 PCS
Price: 0.18USD-4.29USD
Delivery Time: 5-8days
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Color:
White
Material:
Plastic ABS
Connector:
SC UPC
Fiber Count:
4 Cores LC, 2 Fiber SC
Size:
205*115*35 Mm
Cable Diameter:
2pcs Dia. 7-14 Mm
Weight:
0.25 Kg
Packaging Details:
1 piece / box
Highlight:

fiber optic junction box

,

fiber optic distribution box

Product Description

FTTH Wall-mounted Box, 2 Port Fiber Optic Termination Box SC LC Duplex





Sell point:

  1. sample is free
  2. adaptor pigtail can be installed
  3. customer OEM logo, label available
  4. have english user manual on request
  5. 3-5 days manufacture time
  6. plastic ABS material



FTB0102 2 Fiber FTTH Fiber Terminal Box is suitable for SC and LC Fiber Optic Adapter. The box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH.

FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex fiber box 0

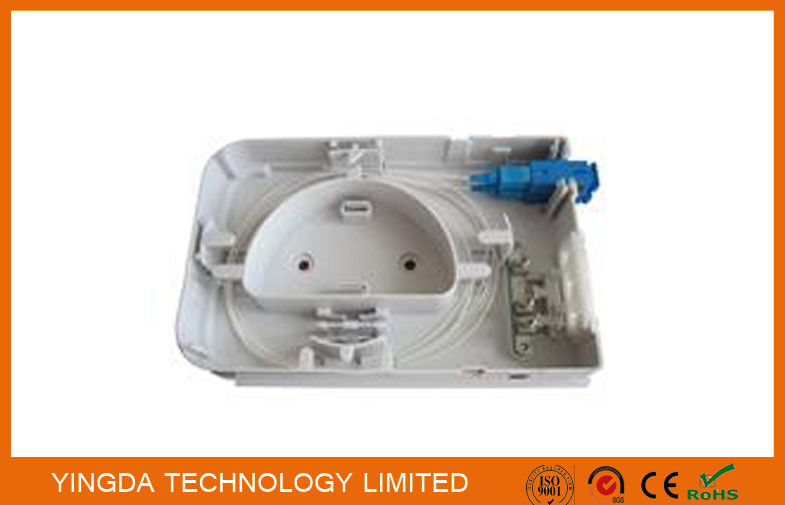

Figure 1: FTB0102 fiber terminal box structure





FTB0102 Fiber optic cabinet Features:
● Small size, light weight, nice outer appearance
● possible to mount it on walls or poles, which offers flexibility in installation locations to adapt to different deployment scenarios.

● provide mechanical protection for optical fibers and connectors to prevent physical damage and the impact of environmental factors.

● Adapt to various optical connection styles,enabling seamless integration with existing fiber optic networks.
● Set strengthen device and fiber optic cable mounting seat
● Equipped with 2 SC or 4 LC adaptors



FTB0102 2 Port Optical Rosette Specification

Dimension (mm) H*W*D

205*115*35

Weight (Kg)

0.25

Cable diameter (mm)

Φ7~Φ14

Cable port

2 holes

Max capacity of splice tray

2-4 (single Fiber)

Max No. of splice tray

 1

Max capacity of cable

 4 (single Fiber)





More Pictures

FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex fiber box 1

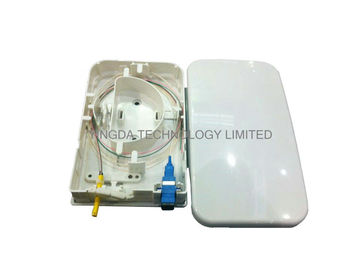

Figure 2: FTB0102 fiber termination kit internal view







FTB0102 fiber optic box connectivity features:



 ●Connector Compatibility:

Equipped with SC connectors, with the option to support either 2 SC fibers or 4 LC fibers, providing flexibility in connecting to different optical devices.


 ●Cable Management: The box has two cable ports with a diameter range of 7 - 14mm, allowing for the entry and management of optical cables. It also features a maximum cable capacity of 4 single fibers and a maximum splice tray capacity of 2 - 4 single fibers, with a single splice tray.



FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex fiber box 2



Fiber Junction Box Application:
Used in the end termination of residential buildings and villas, to fix and splice with pigtails.





Standard accessories:

expansion screws x 2pcs, plastic clip x 2pcs

FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex fiber box 3

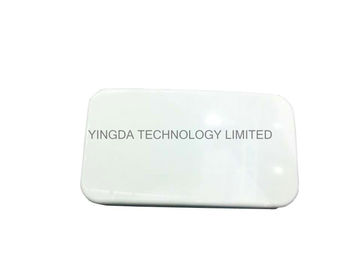

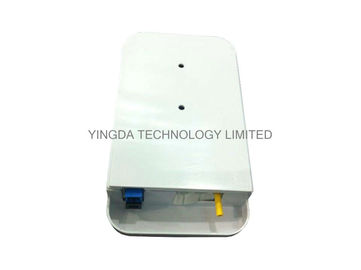

FTB102 distribution cabinnet outer apperance, clip lock, wall mounting





Fiber cable box customer reviews:



FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex fiber box 4

 FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex fiber box 5

FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex fiber box 6





Guess you still want to know:



FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex fiber box 7   FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex fiber box 8    FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex fiber box 9    FTTH Wall mounted Box 2 Port Fiber Optic Termination Box SC LC Duplex fiber box 10

FTB108M Fiber termination box           Fiber heat shrink sleeves                       Ftth drop cable                      SC Quick Splice Connector
